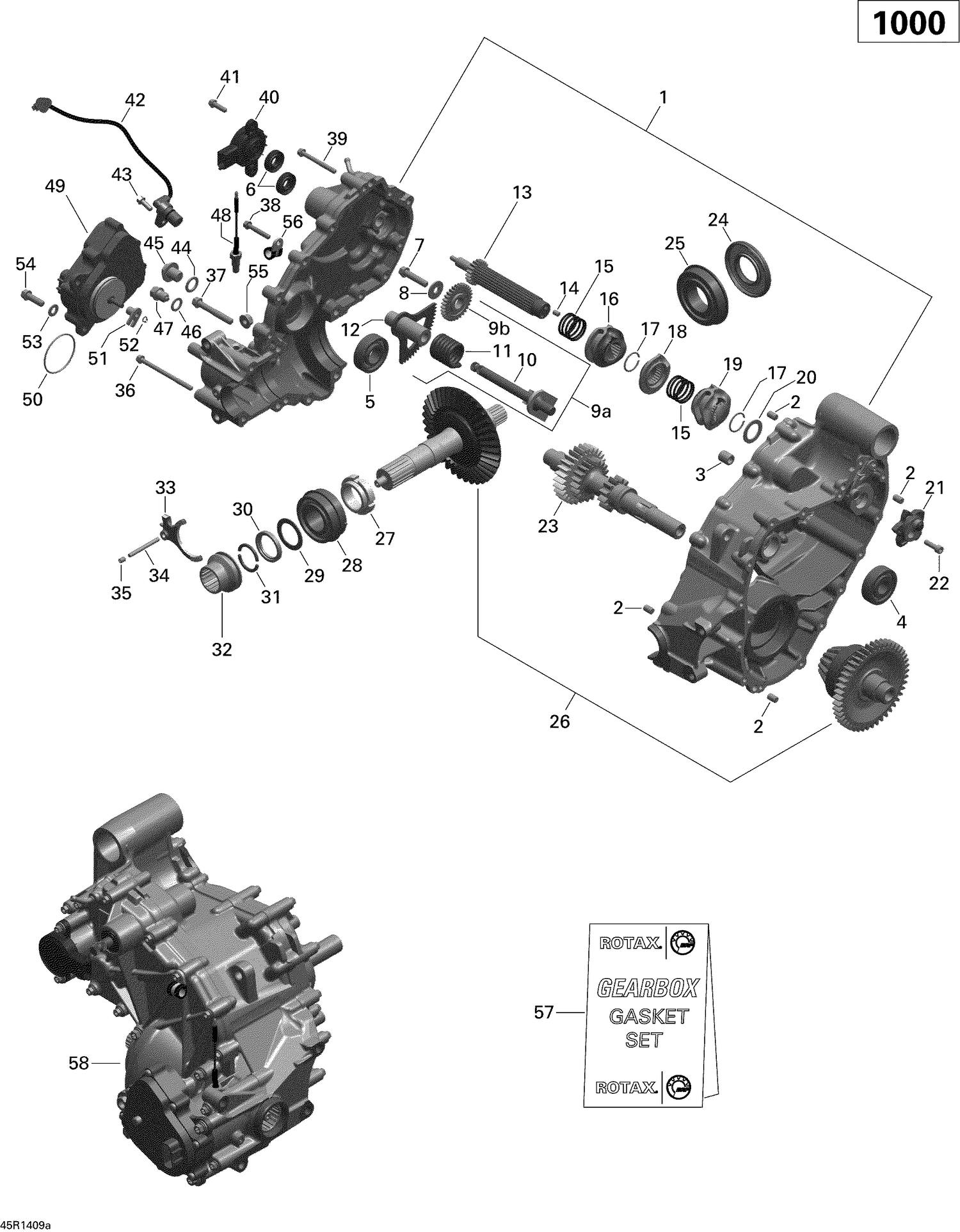

05- Gear Box 1

05- Gear Box 1

Parts (45)

RefPart NumberDescription
2 420632010 Center Pin 8 X 12
4 420932816 Ball Bearing This part replaces 420932815.
5 420932433 Ball Bearing 6204
6 420250450 Oil Seal
7 420641188 Torx Flange Screw M8 X 35
8 420227937 Plain Washer
9b Not Available As Spare Part - Intermediate Gear, 30 Teeth
10 Not Available As Spare Part - Shift Shaft
11 Not Available As Spare Part - Spring
12 Not Available As Spare Part - Tooth Segment
14 Not Available As Spare Part - Needle Pin
15 Not Available As Spare Part - Compression Spring
16 Not Available As Spare Part - Gear Shifting Gate
17 Not Available As Spare Part - Retaining Ring
18 Not Available As Spare Part - Disengagement Gate
19 Not Available As Spare Part - Gear Shifting Gate
20 Not Available As Spare Part - Thrust Washer
21 Not Available As Spare Part - Index Washer
22 420241939 Allen Screw M6 X 20
23 420637428 COUNTERSHAFT - Call your local BRP dealership This part replaces 420620899.
24 420831955 Oil Seal This part replaces 420831957.
33 Not Available As Spare Part - Shifting Fork
34 Not Available As Spare Part - Needle Pin
35 420841771 SET SCREW M6 X 8 - Call your local BRP dealership
36 420641228 Torx Flange Screw M6 X 85
37 420641213 Torx Flange Screw M8 X 55
38 420440274 Torx Flange Screw M6 X 35
39 420440702 Torx Flange Screw M6 X 55
40 420266168 Angle Rotation Sensor This part replaces 420266167.
41 420641048 Torx Flange Screw M6 X 16
42 420265727 Camshft Position Sensor Ass'y This part replaces 420265626.
43 420641048 Torx Flange Screw M6 X 16
44 420650350 O-Ring
45 420241662 Plug Screw M14 X 1.5 This part replaces 420241660.
46 420250640 Copper Washer
47 420241787 Magnetic Drain Plug M12 This part replaces 420241786.
48 420640192 Contact Screw M10 Ass'y With Cable
50 293300117 O-Ring
51 415129175 Shifting Fork
52 293370042 Circlip This part replaces 415129176.
53 420250315 Flat Washer 8.4 mm This part replaces 420250311.
54 420440372 Torx Flange Screw M8 X 25
55 420842619 Hex. Nut M8
56 420251690 CABLE CLAMP - Call your local BRP dealership
57 420684149 Gasket Set This part replaces 420684139.
