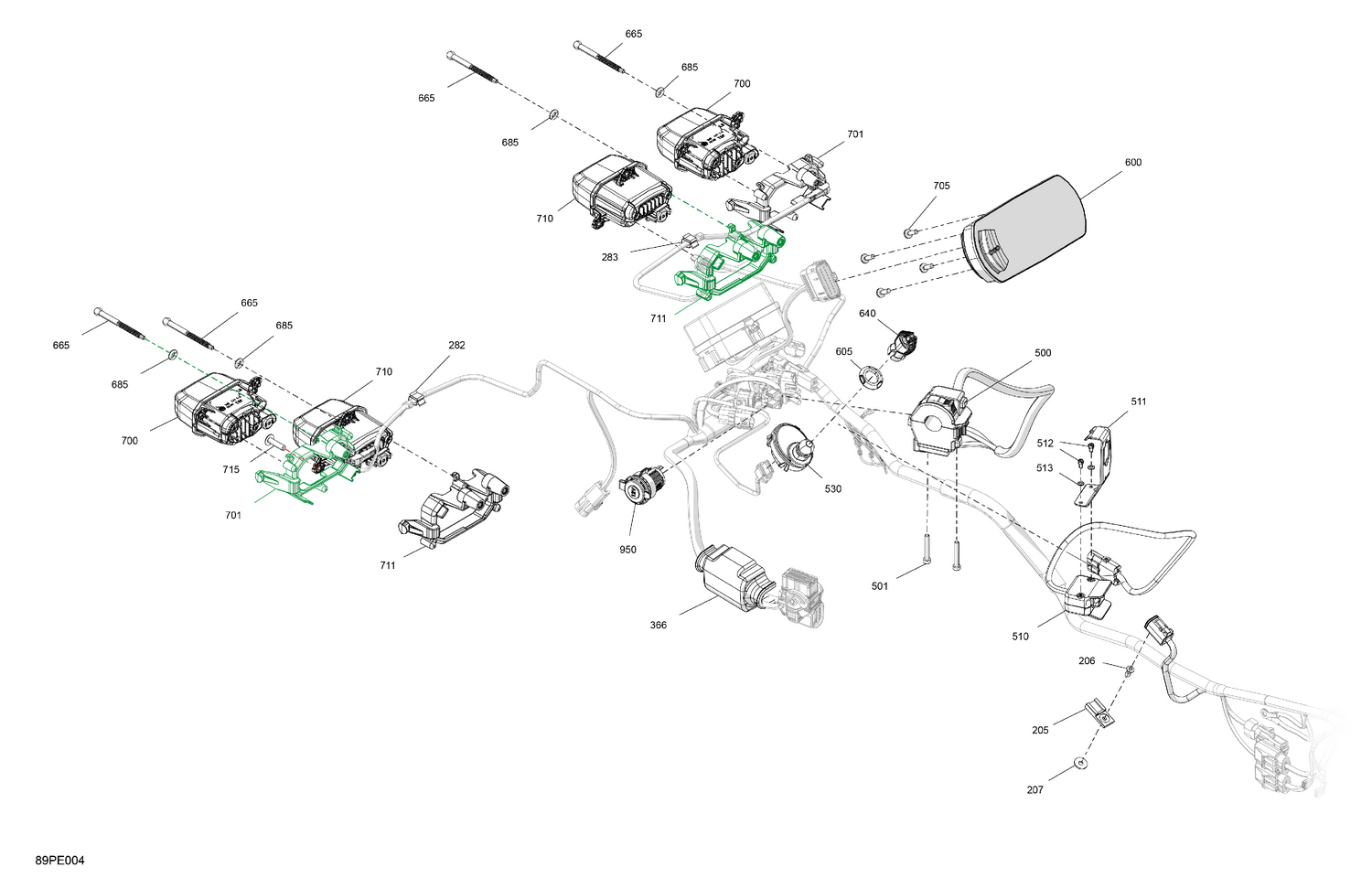

08- Electric - Front Section
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 205 | 270000141 | Clip |
| 206 | 293150301 | Pop Rivet 3/16 X ,551 |
| 207 | 391301600 | Washer |
| 282 | 710010204 | Clip |
| 283 | 710010204 | Clip |
| 366 | 710007255 | Soft Protection Sleeve |
| 500 | 710008837 | Multifunction Switch |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 510 | 710007327 | Winch Switch |
| 511 | 710004670 | Black Support |
| 512 | 250000153 | Hex. Cap Screw 6-32 X 1/4" |
| 513 | 234040600 | Flat Washer 4 mm |
| 530 | 515179305 | Terminal DESS One Wire |
| 600 | 710008298 | Multifunction Compact Gauge |
| 605 | 278004274 | Specialized Nut |
| 640 | 710004964 | Grey Key RFID |
| 665 | 710005837 | Ajustment Screw |
| 685 | 293300192 | O-Ring |
| 700 | 710008088 | Low Beam Light |
| 701 | 710008396 | Exterior Headlight Support |
| 705 | 250000720 | Torx Screw K50 X 16 |
| 710 | 710006910 | HIgh Beam Light |
| 711 | 710008394 | Interior Headlight Support |
| 715 | 250000759 | Torx Truss Pt K40 X 16 |
