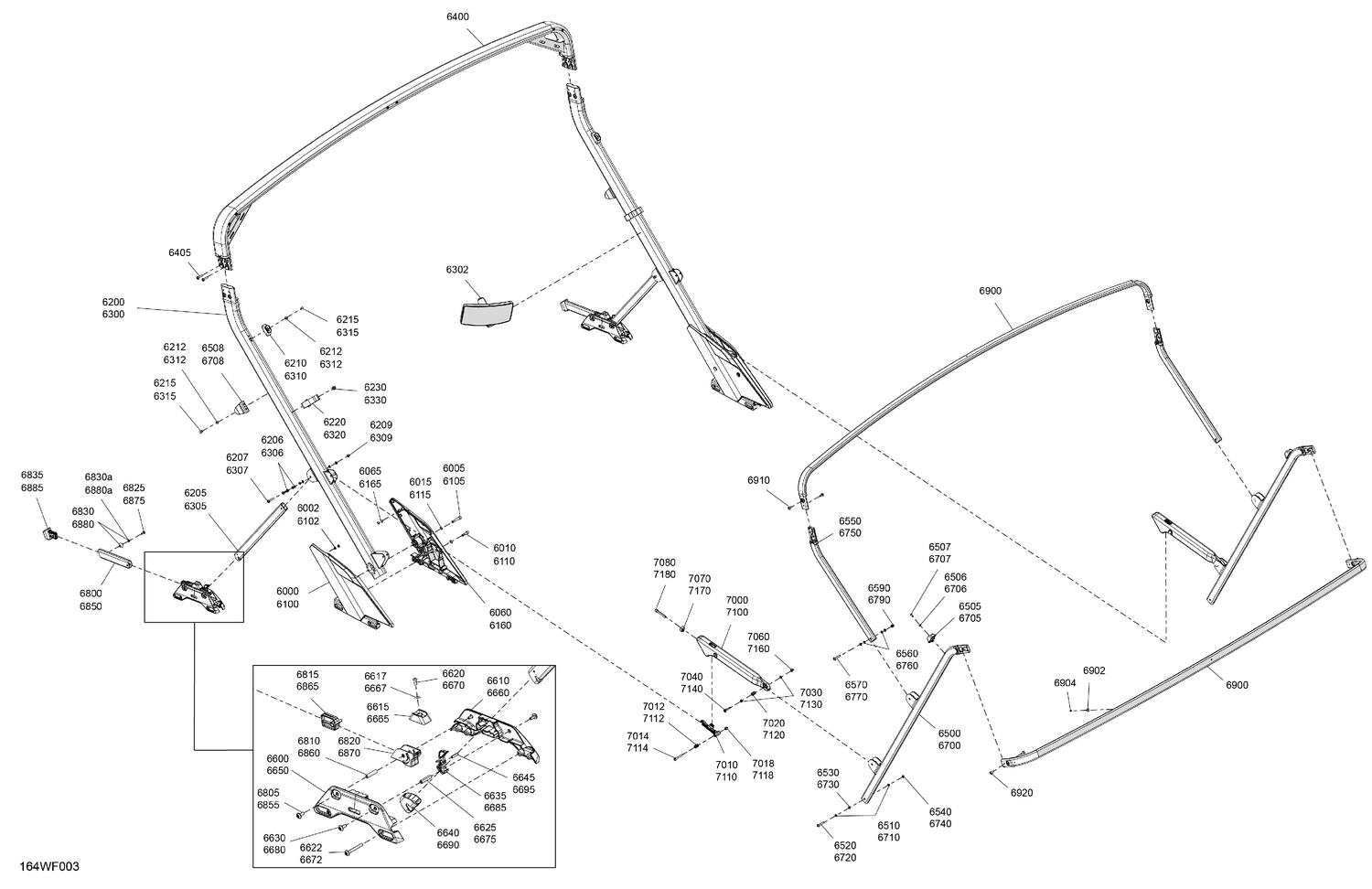

05- CANVAS - Bimini Top Rear Section
Parts (129)
| Ref | Part Number | Description |
|---|---|---|
| 6000 | 281300518 | LH Outer Bimini Anchorage |
| 6002 | 293730053 | Black Dart 5 mm |
| 6005 | 205584560 | Socket Head Screw M8 X 45, S. GRIP |
| 6010 | 205583060 | Socket Head Screw M8 X 30, Scotch Grip |
| 6015 | 234081600 | Stainless, Flat Washer 8 mm |
| 6060 | 281300520 | LH Inner Bimini Anchorage |
| 6065 | 293730053 | Black Dart 5 mm |
| 6100 | 281300734 | RH Outer Bimini Anchorag |
| 6102 | 293730053 | Black Dart 5 mm |
| 6105 | 205584560 | Socket Head Screw M8 X 45, S. GRIP |
| 6110 | 205583060 | Socket Head Screw M8 X 30, Scotch Grip |
| 6115 | 234081600 | Stainless, Flat Washer 8 mm |
| 6160 | 281300733 | RH Inner Bimini Anchorage |
| 6165 | 293730053 | Black Dart 5 mm |
| 6200 | 281300735 | Profiled Tube |
| 6205 | 281300390 | Profiled Tube |
| 6206 | 293900086 | Bushing |
| 6207 | 250001217 | Cone Torx Truss Screw HD.M6 X 35 |
| 6209 | 232161600 | Hexagonal Jam Nut M6 |
| 6210 | 281300607 | Rubber Stopper |
| 6212 | 234061600 | Stainless Flat Washer M6 |
| 6215 | 293150008 | Pop Rivet 3/16" |
| 6220 | 281300606 | Retaining Strap |
| 6230 | 293150123 | Pop Rivet 3/16" |
| 6300 | 281300735 | Profiled Tube |
| 6302 | 281300577 | Rearview Mirror Ass'y |
| 6305 | 281300390 | Profiled Tube |
| 6306 | 293900086 | Bushing |
| 6307 | 250001217 | Cone Torx Truss Screw HD.M6 X 35 |
| 6309 | 232161600 | Hexagonal Jam Nut M6 |
| 6310 | 281300607 | Rubber Stopper |
| 6312 | 234061600 | Stainless Flat Washer M6 |
| 6315 | 293150008 | Pop Rivet 3/16" |
| 6320 | 281300606 | Retaining Strap |
| 6330 | 293150123 | Pop Rivet 3/16" |
| 6400 | 295101118 | Front Harness Service Kit |
| 6405 | 250001146 | Cone Torx Truss Screw HD.M6 X 30 |
| 6500 | 281300385 | Profiled Tube |
| 6505 | 281300607 | Rubber Stopper |
| 6506 | 234061600 | Stainless Flat Washer M6 |
| 6507 | 293150008 | Pop Rivet 3/16" |
| 6508 | 281301015 | Bimini Stopper |
| 6510 | 293900086 | Bushing |
| 6520 | 250001217 | Cone Torx Truss Screw HD.M6 X 35 |
| 6530 | 234061600 | Stainless Flat Washer M6 |
| 6540 | 232561200 | Brass Elastic Stop Nut M6 |
| 6550 | 281300534 | Profiled Tube |
| 6560 | 293900086 | Bushing |
| 6570 | 250001217 | Cone Torx Truss Screw HD.M6 X 35 |
| 6590 | 232161600 | Hexagonal Jam Nut M6 |
| 6600 | 281300422 | Outer Anchorage Support |
| 6610 | 281300544 | Inner Anchorage Support |
| 6615 | 281300607 | Rubber Stopper |
| 6617 | 234061600 | Stainless Flat Washer M6 |
| 6620 | 293150008 | Pop Rivet 3/16" |
| 6622 | 250001185 | Cone Torx Truss Screw HD.M6 X 51 |
| 6625 | 281300566 | Rod Latch |
| 6630 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 6635 | 281300567 | Lever Latch |
| 6640 | 281300573 | Latch Trim |
| 6645 | 250400100 | Spring Pin 3/16 X 3/4 |
| 6650 | 281300422 | Outer Anchorage Support |
| 6660 | 281300544 | Inner Anchorage Support |
| 6665 | 281300607 | Rubber Stopper |
| 6667 | 234061600 | Stainless Flat Washer M6 |
| 6670 | 293150008 | Pop Rivet 3/16" |
| 6672 | 250001185 | Cone Torx Truss Screw HD.M6 X 51 |
| 6675 | 281300566 | Rod Latch |
| 6680 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 6685 | 281300567 | Lever Latch |
| 6690 | 281300573 | Latch Trim |
| 6695 | 250400100 | Spring Pin 3/16 X 3/4 |
| 6700 | 281300385 | Profiled Tube |
| 6705 | 281300607 | Rubber Stopper |
| 6706 | 234061600 | Stainless Flat Washer M6 |
| 6707 | 293150008 | Pop Rivet 3/16" |
| 6708 | 281301015 | Bimini Stopper |
| 6710 | 293900086 | Bushing |
| 6720 | 250001217 | Cone Torx Truss Screw HD.M6 X 35 |
| 6730 | 234061600 | Stainless Flat Washer M6 |
| 6740 | 232561200 | Brass Elastic Stop Nut M6 |
| 6750 | 281300534 | Profiled Tube |
| 6760 | 293900086 | Bushing |
| 6770 | 250001217 | Cone Torx Truss Screw HD.M6 X 35 |
| 6790 | 232161600 | Hexagonal Jam Nut M6 |
| 6800 | 281300761 | Profiled Tube |
| 6805 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 6810 | 281300566 | Rod Latch |
| 6815 | 281300839 | Latch Pivot |
| 6820 | 281300838 | Latch Guide |
| 6825 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 6830 | 269502544 | Nut Housing M6 |
| 6830a | 232561200 | Brass Elastic Stop Nut M6 |
| 6835 | 281300819 | Bimini Support Stopper |
| 6850 | 281300761 | Profiled Tube |
| 6855 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 6860 | 281300566 | Rod Latch |
| 6865 | 281300839 | Latch Pivot |
| 6870 | 281300838 | Latch Guide |
| 6875 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 6880 | 269502544 | Nut Housing M6 |
| 6880a | 232561200 | Brass Elastic Stop Nut M6 |
| 6885 | 281300819 | Bimini Support Stopper |
| 6900 | 281300395 | Rear Hoop |
| 6902 | 293730102 | Fastener Snap |
| 6904 | 293150285 | Pop RIvet 1/8 X ,375 |
| 6910 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 6920 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 7000 | 281300552 | Lock Lever |
| 7010 | 281300575 | LH Tensioner |
| 7012 | 281300554 | Cut Bushing |
| 7014 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 7018 | 232161600 | Hexagonal Jam Nut M6 |
| 7020 | 281300554 | Cut Bushing |
| 7030 | 293900086 | Bushing |
| 7040 | 250001217 | Cone Torx Truss Screw HD.M6 X 35 |
| 7060 | 232161600 | Hexagonal Jam Nut M6 |
| 7070 | 269501943 | Elastic Nut Housing M8 |
| 7080 | 250001226 | Socket Head Screw M8 X 55 |
| 7100 | 281300552 | Lock Lever |
| 7110 | 281300553 | RH Tensioner |
| 7112 | 281300554 | Cut Bushing |
| 7114 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 7118 | 232161600 | Hexagonal Jam Nut M6 |
| 7120 | 281300554 | Cut Bushing |
| 7130 | 293900086 | Bushing |
| 7140 | 250001217 | Cone Torx Truss Screw HD.M6 X 35 |
| 7160 | 232161600 | Hexagonal Jam Nut M6 |
| 7170 | 269501943 | Elastic Nut Housing M8 |
