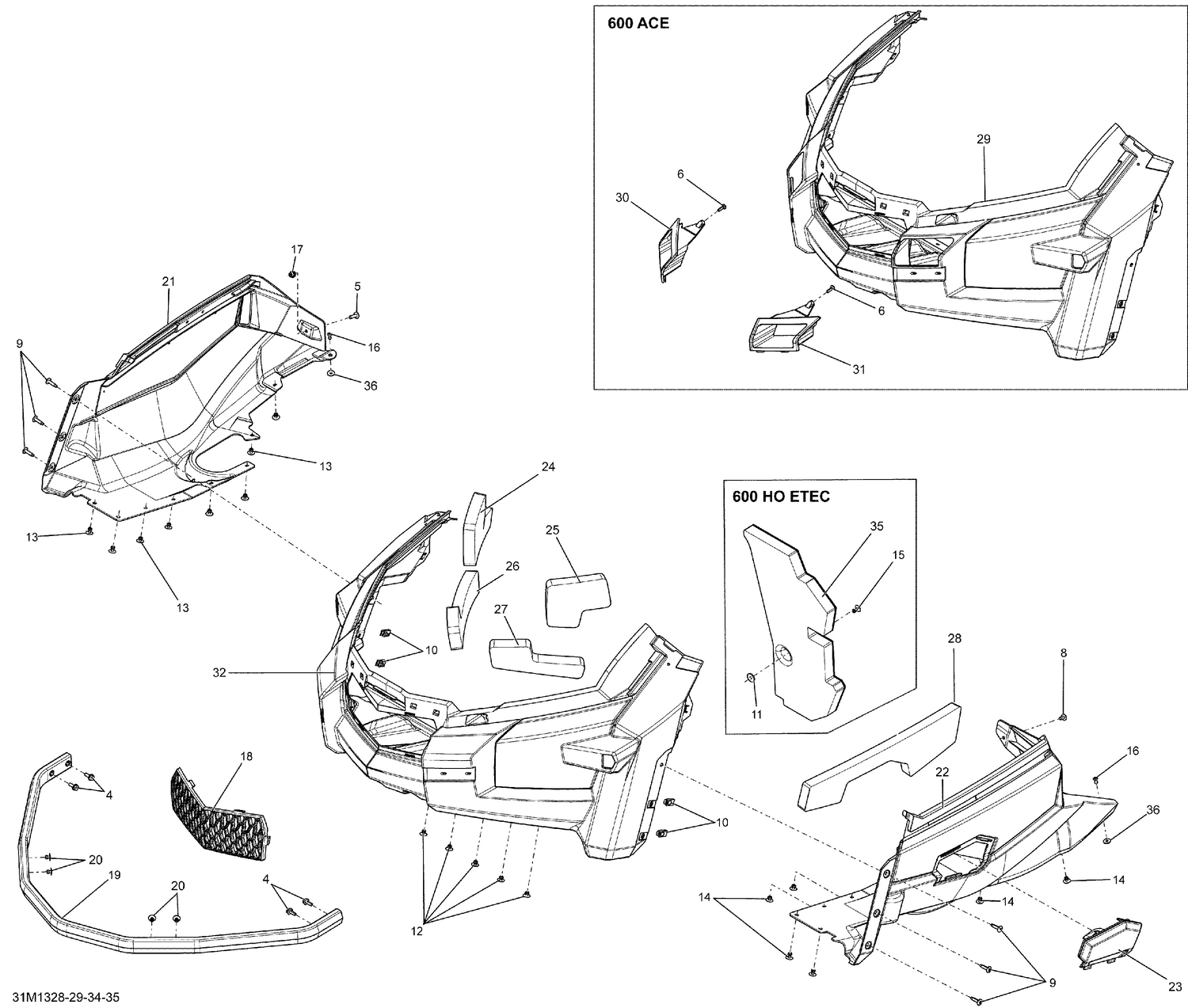

09- Bottom Pan
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 207661644 | Hex. Flange Screw M6 X 16 |
| 5 | 250000995 | Torx-truss M/s M6 X 10 This part replaces 250000210. |
| 6 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 8 | 250000767 | Torx Truss Screw M6 X 12 This part replaces 250000325. |
| 9 | 250000618 | Torx Screw M6 X 25 |
| 10 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 11 | XXX | Not Available As Spare Parts |
| 12 | 293150104 | Pop Rivet 3/16" |
| 13 | 293150104 | Pop Rivet 3/16" |
| 14 | 293150104 | Pop Rivet 3/16" |
| 15 | XXX | Not Available As Spare Parts |
| 16 | 390402300 | Pop Rivet 3/16" |
| 17 | 293450275 | Insert This part replaces 415107300. |
| 18 | 502006887 | Botton Pan Grille |
| 19 | 502006963 | Anodized - Front Bumper |
| 20 | 293150104 | Pop Rivet 3/16" |
| 21 | 502006965 | Black RH Bottom Pan |
| 22 | 502006966 | Black LH Bottom Pan |
| 23 | 502006970 | Black Bottom Pan Door |
| 24 | 502007204 | RH Upper Bottom Pan Foam |
| 25 | 502007205 | LH Upper Bottom Pan Foam |
| 26 | 502007206 | RH Lower Bottom Pan Foam |
| 27 | 502007207 | LH Lower Bottom Pan Foam |
| 28 | 502007208 | LH Bottom Pan Foam |
| 29 | 502007362 | Bottom Pan This part replaces 502007104. |
| 30 | 502007127 | RH Air Inlet |
| 31 | 502007128 | LH Air Inlet |
| 32 | XXX | Not Available As Spare Parts |
| 35 | XXX | Not Available As Spare Parts |
