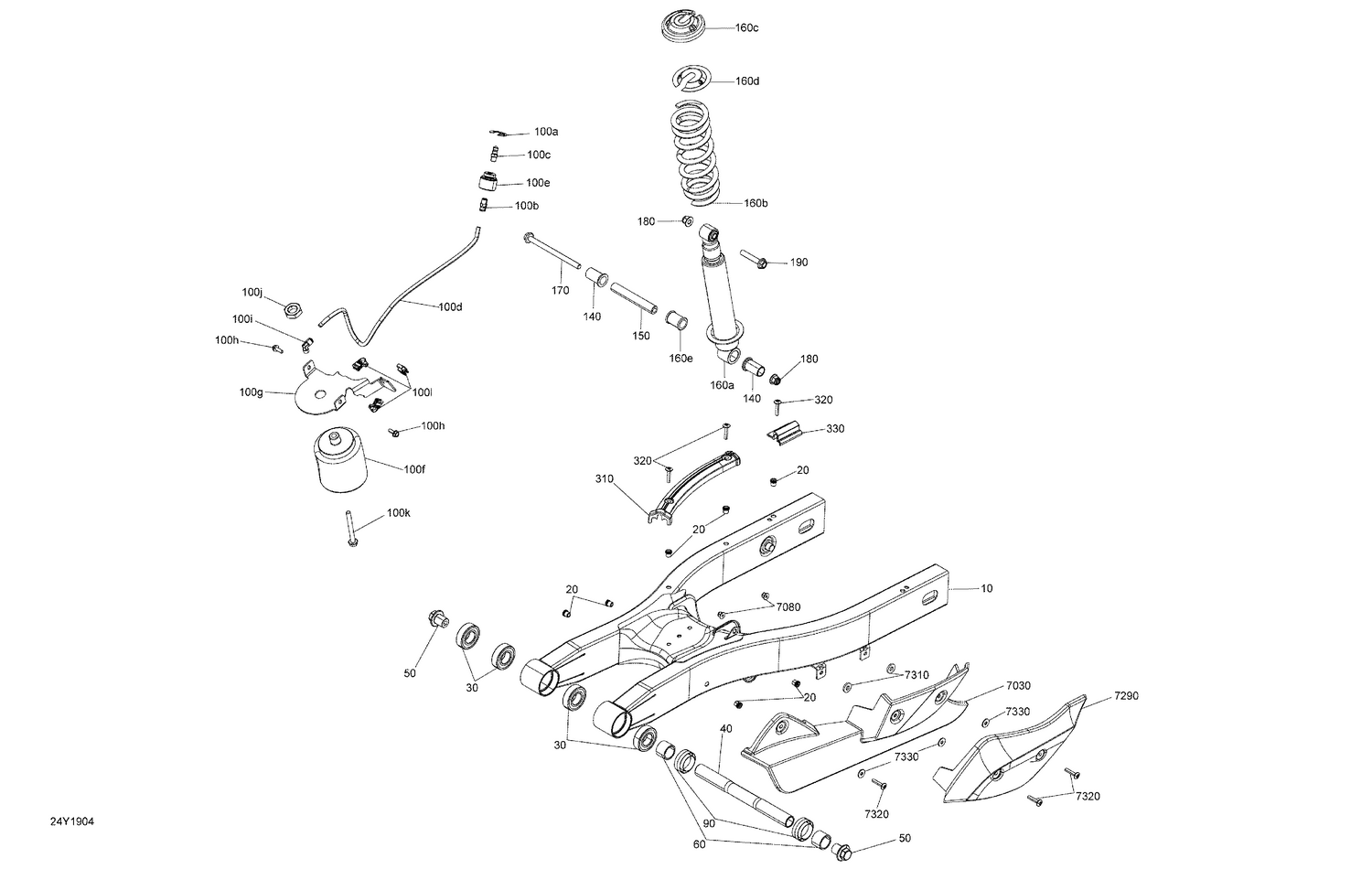

08- Suspension, Rear
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706001574 | Swing Arm |
| 20 | 293450275 | Insert |
| 30 | 293350115 | Ball Bearing |
| 40 | 706001182 | Swing Arm Axle |
| 50 | 706001579 | Bolt M20 |
| 60 | 706001152 | Spacer |
| 90 | 706001366 | Sleeve |
| 100a | 293370123 | Circlip |
| 100b | 706000869 | Connector |
| 100c | 706002797 | Air Valve |
| 100d | 706002679 | Hose |
| 100e | 706002656 | Pneumatic Connector |
| 100f | 219800175 | Air Damper Kit |
| 100g | 706002456 | Support Plate |
| 100h | 210261050 | Hex. Forming Screw M6 X 10 |
| 100i | 706001018 | Elbow 90° |
| 100j | 250100119 | Jam Nut M20 |
| 100k | 207687544 | Hex. Flange Screw M8 X 75 |
| 100l | 710002899 | Clip Tie-Rap |
| 140 | 706000410 | Spacer |
| 150 | 706000409 | Shock Absorber Shaft |
| 160a | 706001706 | Shock |
| 160b | 706001707 | Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160e | 503191609 | Urethane Cushion |
| 170 | 230604034 | Hex. Flange Screw M10 X 140 |
| 180 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 190 | 207605554 | Hex. Flange Screw M10 X 55 |
| 310 | 710004281 | Protector |
| 320 | 250000843 | Torx Truss Screw M6 X 30 |
| 330 | 710002145 | Hose Support |
| 7030 | 705002092 | Lower Belt Guard |
| 7080 | 233261494 | Hex. Flange Elastic Nut M6 |
| 7290 | 705009446 | Belt Guard Moulding |
| 7310 | 705003696 | Adhesive Spacer |
| 7320 | 250000842 | Stainless, Torx Screw M6 X 30 |
