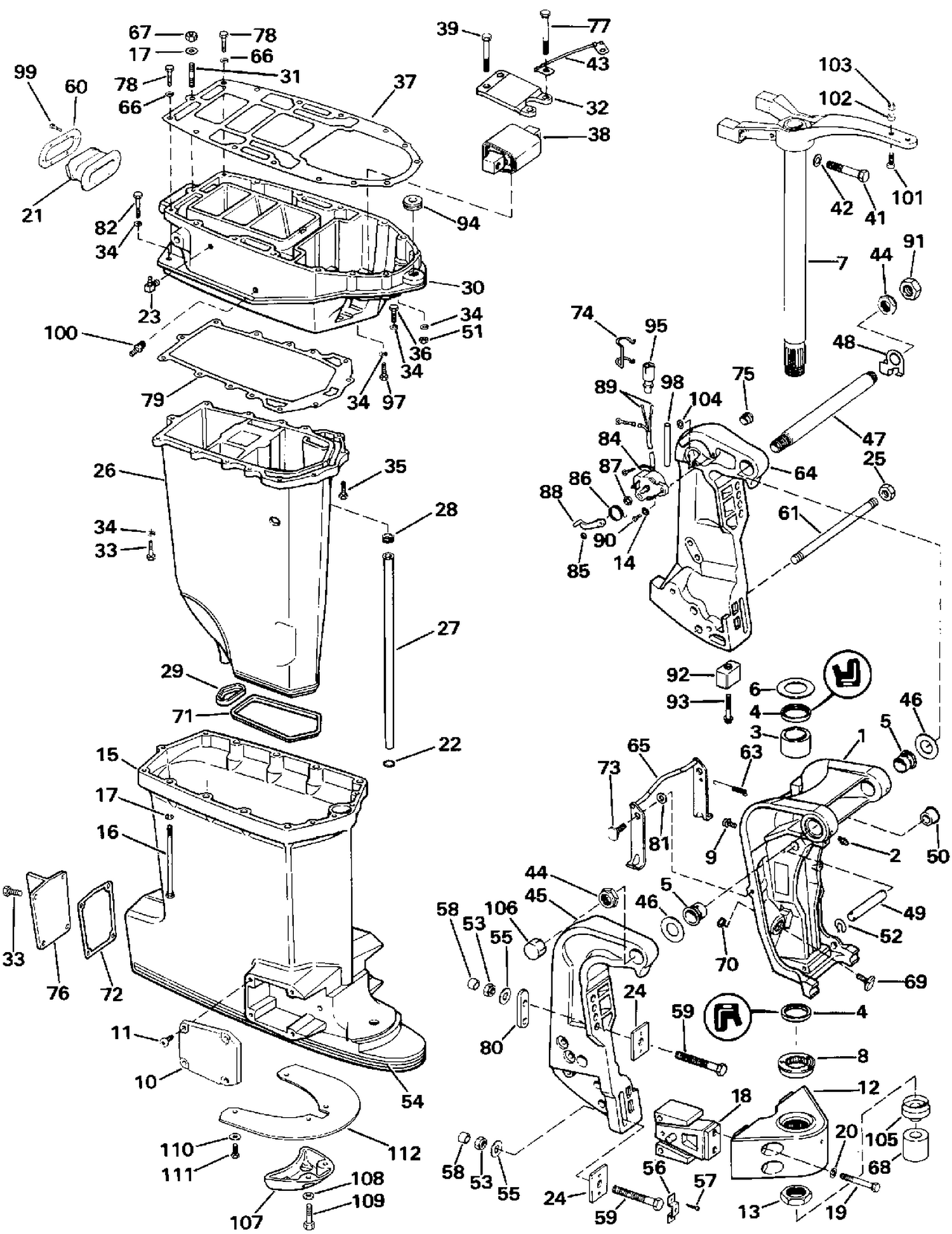

| Ref | Part Number | Description |
|---|
| 1 |
0398293 |
SWIVEL BRACKET |
| 1 |
0398294 |
SWIVEL BRACKET |
| 5 |
0321035 |
BRUSHING, Swivel bracket |
| 6 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 7 |
0392518 |
STEERING ARM ASSY. |
| 7 |
0392519 |
STEERING ARM ASSY. |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0328696 |
SCREEN, Ground lead |
| 10 |
0338942 |
COVER, Mount bracket lower This part replaces 0320864. |
| 11 |
0322000 |
SCREW, Starter to crankcase |
| 12 |
0330047 |
MOUNT BRACKET |
| 12 |
0339419 |
MOUNT BRACKET This part replaces 0912144. |
| 13 |
0320746 |
CROU, support de montage |
| 15 |
0332846 |
EXHAUST HOUSING |
| 15 |
0332848 |
EXHAUST HOUSING |
| 16 |
0329778 |
SCREW, Exhaust housing |
| 17 |
0307708 |
RONDELLE GROWER |
| 18 |
0434629 |
MOUNT, Lower |
| 18 |
0434632 |
MONTURE CAOUTCHOUC, inférieur |
| 18 |
0434633 |
RUBBER MOUNT, Lower |
| 19 |
0328078 |
SCREW, Mount |
| 20 |
0306314 |
L'WASHER,Scr,long |
| 21 |
0333740 |
SEAL Adapter to cover |
| 24 |
0331579 |
PLATE, Mounting |
| 25 |
0329742 |
LOCKNUT, Thrust rod |
| 26 |
0333519 |
EXHAUST HOUSING, Inner |
| 26 |
0333657 |
EXHAUST HOUSING, Inner |
| 27 |
0330040 |
WATER TUBE |
| 27 |
0330041 |
WATER TUBE |
| 28 |
0338031 |
SPACER, Water tube This part replaces 0330039. |
| 29 |
0330034 |
APPLIQUE, Front |
| 30 |
0435304 |
ADAPTER, Exh. hsg. This part replaces 0431992. |
| 31 |
0330032 |
STUD, Adapter |
| 32 |
0330929 |
PLATE, Upper mount |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0329975 |
GASKET, Adapter to powerhead |
| 38 |
0395539 |
RUBBER MOUNT ASSY., Upper |
| 38 |
0432017 |
RUBBER MOUNT Assembly |
| 38 |
0984468 |
RUBBER MOUNT Assembly |
| 41 |
0912345 |
SCREW, Upper mount |
| 42 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 43 |
0583967 |
GROUND LEAD |
| 44 |
0335554 |
CROU, tube de relevage |
| 45 |
0329713 |
STERN BRACKET, Starboard |
| 47 |
0335553 |
TILT TUBE |
| 48 |
0352105 |
CLAMP, Cable This part replaces 0327264. |
| 49 |
0331038 |
PIN, Tilt cylinder |
| 50 |
0331010 |
BUSHING, Tilt cylinder |
| 52 |
0331029 |
SPRING CLIP |
| 53 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 54 |
0211388 |
DECAL |
| 54 |
0336386 |
DECAL Exh. hsg. Jo. |
| 55 |
0320248 |
RONDELLE, écrou |
| 56 |
0318273 |
Bolt hex retainer 1/2 in. |
| 57 |
0319886 |
SCREW |
| 58 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 59 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) This part replaces 0327053. |
| 59 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 60 |
0332530 |
COLLAR, Exhaust seal |
| 61 |
0329417 |
THRUST ROD ASSY |
| 64 |
0329712 |
STERN BRACKET ASSY., Port |
| 65 |
0390442 |
LOCATING LEVER, Rod |
| 66 |
0307708 |
RONDELLE GROWER |
| 68 |
0911312 |
JOINT, arbre d'articulation |
| 71 |
0330033 |
SEAL, Exhaust housing |
| 72 |
0330078 |
GASKET, Exhaust cover |
| 73 |
0329109 |
SHOULDER SCREW |
| 74 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 76 |
0330073 |
EXHAUST COVER |
| 77 |
0330931 |
VIS, support supérieur |
| 78 |
0308963 |
SCREW, Adapter, rear |
| 79 |
0333575 |
GASKET, Inner exh. hsg. to adapter |
| 80 |
0321735 |
SUPPORT, Stern bracket |
| 82 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 84 |
0583359 |
SENDING UNIT ASSY |
| 91 |
0322376 |
NUT, Wiper, tilt tube |
| 92 |
0433458 |
ANODE, Port stern bracket |
| 93 |
0333350 |
SCREW, Anode |
| 94 |
0330006 |
GROMMET, Shift rod to adapter |
| 97 |
0306464 |
SCREW, Adapter to powerhead |
| 98 |
0512790 |
SLEEVE, Motor & sending leads |
| 105 |
0912233 |
DISPOSITIF DE RETENUE, joint arbre d'articulation |
| 106 |
0317894 |
CACHE, tube de relevage |
| 107 |
0345776 |
DÉFLECTEUR DE PROJECTIONS This part replaces 0913262. |
| 109 |
0910736 |
SCREW, Deflector |
| 111 |
0910741 |
SCREW, Cover plate |
