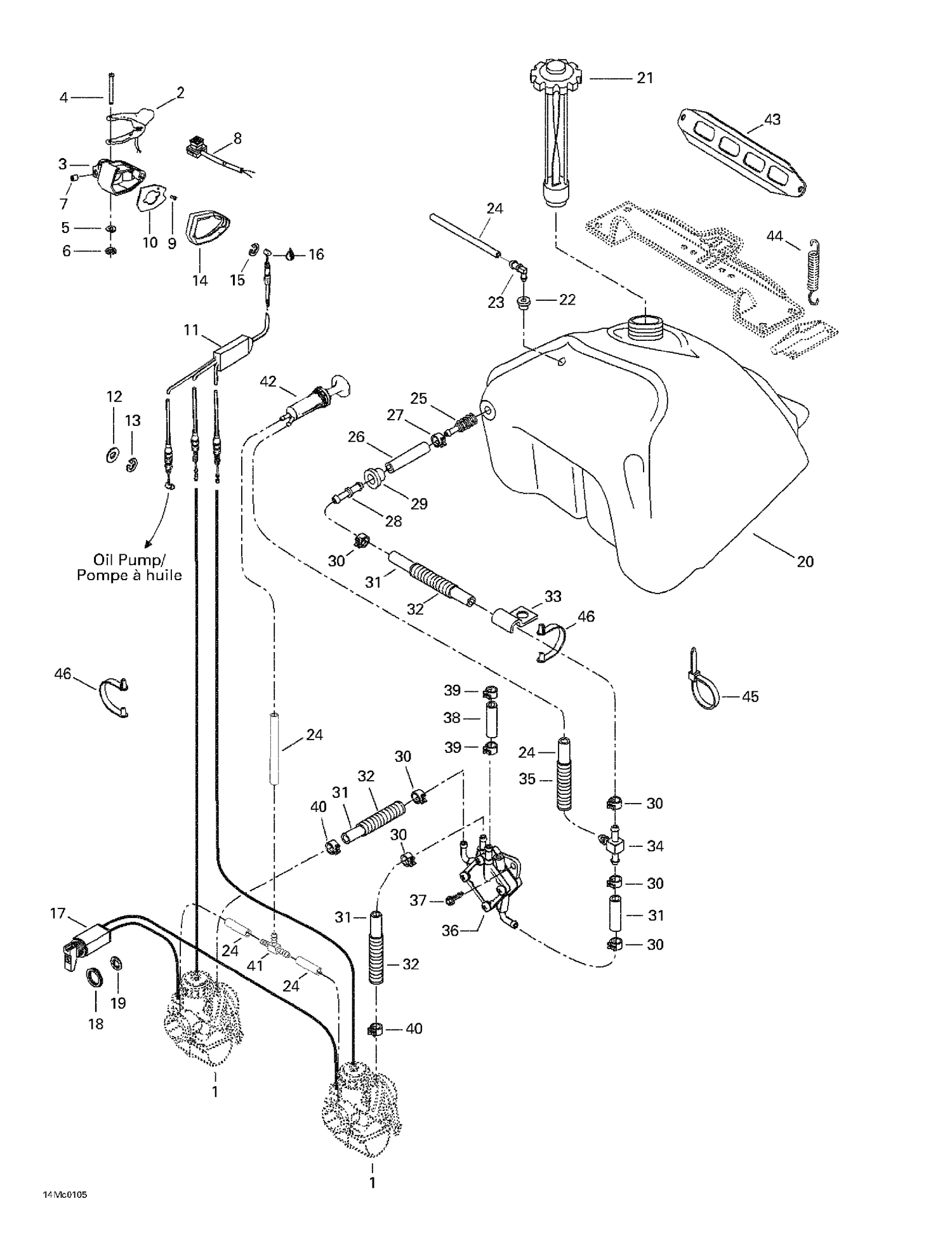

02- Fuel System
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 512060214 | Handle Ass'y This part replaces 512059144. |
| 3 | 512060603 | Throttle Housing This part replaces 512059334. |
| 4 | 414438700 | Lever Pin |
| 5 | 234051600 | Flat Washer M5, Stainless This part replaces 414438900. |
| 6 | 414439000 | Circlip |
| 7 | 414440800 | Socket Set Screw M8 X 10 |
| 8 | 515177362 | Emergency Stop Switch This part replaces 512059146. |
| 9 | 414473200 | Screw |
| 10 | 512060390 | Plate This part replaces 572099400. |
| 11 | 414883100 | THROTTLE CABLE AND HOUSING - Call your local BRP dealership |
| 12 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 13 | 414753500 | Circlip |
| 14 | 572044600 | THROTTLE COVER - Call your local BRP dealership |
| 15 | 414274500 | Circlip |
| 16 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 17 | 414967000 | CHOKE CABLE - Call your local BRP dealership |
| 18 | 512059364 | NUT-PLASTIC - Call your local BRP dealership |
| 19 | 394103300 | Lock Washer, Interior Teeth |
| 20 | 572108900 | Fuel Tank |
| 21 | 572161200 | Fuel Tank Cap |
| 22 | 709200285 | Grommet This part replaces 570135100. |
| 23 | 414814100 | Male Connector |
| 24 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 25 | 414865700 | Fuel Filter |
| 26 | Not | Available As Spare Part - Fuel Line |
| 27 | 513033011 | Clamp |
| 28 | 414518500 | Male Connector |
| 29 | 570045500 | Grommet |
| 30 | 414554800 | Spring Clamp |
| 31 | 219704410 | Polyurethane Hose 10000Mm Long |
| 32 | 219704407 | Tubing 10 MM 1000MM Long |
| 33 | 415018200 | CLIP - Call your local BRP dealership |
| 34 | 414222500 | T-fitting |
| 35 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 36 | 403801000 | Fuel Pump |
| 37 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 38 | 219704549 | Hose This part replaces 219704439. |
| 39 | 414415200 | Spring Clamp |
| 40 | 414420700 | Spring Clamp |
| 41 | 414222400 | T-Fitting |
| 42 | 415060500 | Primer |
| 43 | 517249200 | Fuel Tank Bracket |
| 44 | 517182100 | SPRING - Call your local BRP dealership |
| 45 | 414115200 | Tie-Rap 180 mm |
