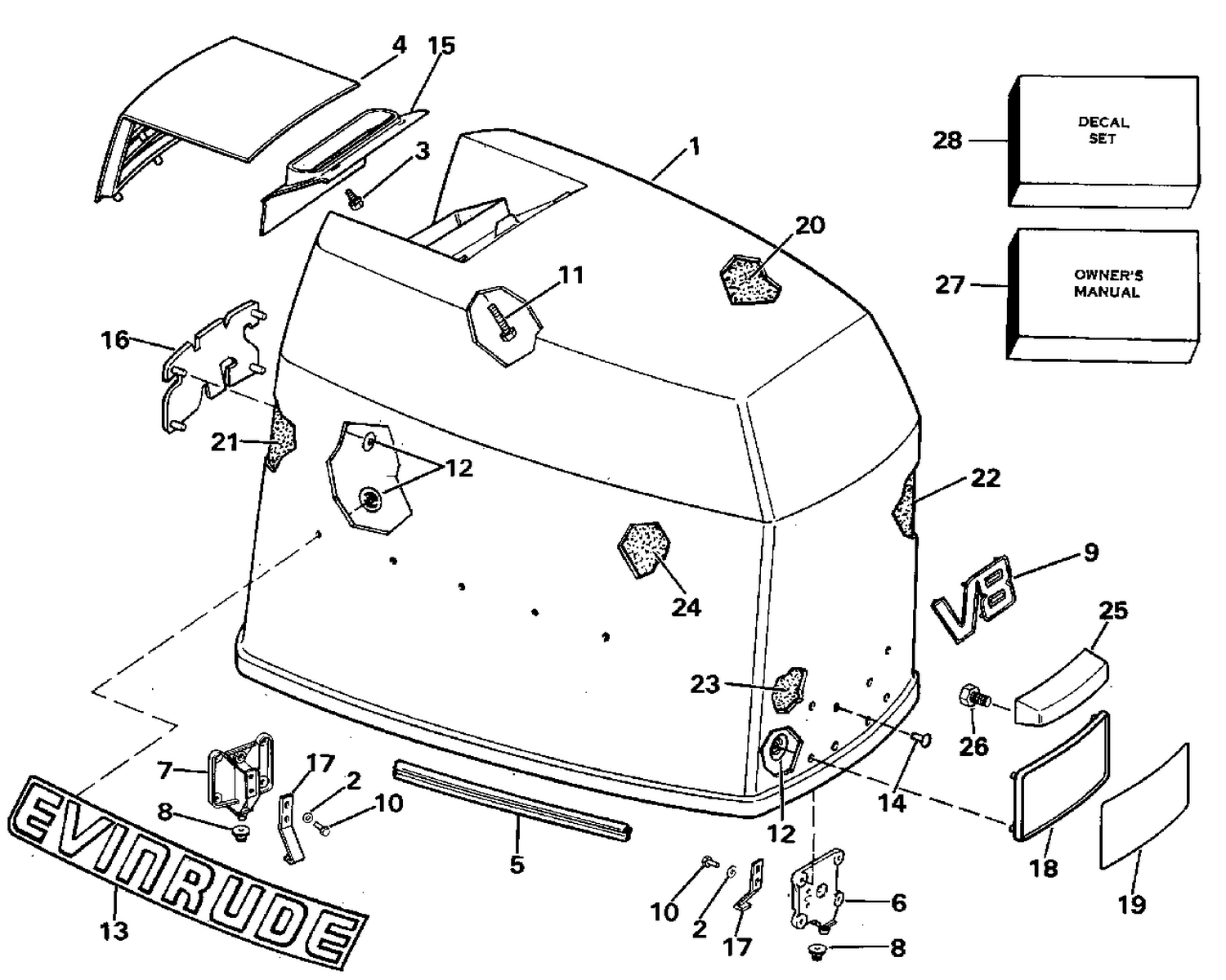

| Ref | Part Number | Description |
|---|
| 1 |
0283241 |
ENGINE COVER ASSY., Ev. |
| 1 |
0283269 |
ENGINE COVER ASSY., Ev. |
| 4 |
0328009 |
TILT HANDLE |
| 5 |
0912173 |
SEAL, Engine cover This part replaces 0210762. |
| 6 |
0329762 |
LOCATING BRACKET, Front |
| 7 |
0394976 |
LOCATING BRACKET, Rear |
| 9 |
0210411 |
APPLIQUE, Rear & front |
| 13 |
0210415 |
APPLIQUE, Port & stbd |
| 15 |
0330012 |
BAFFLE |
| 16 |
0210412 |
APPLIQUE, Rear |
| 17 |
0397630 |
HOOK |
| 18 |
0210413 |
APPLIQUE, Front |
| 19 |
0210767 |
PLATE, Front |
| 20 |
0341499 |
SOUND BLANKET, Top This part replaces 0330014. |
| 21 |
0330015 |
SOUND BLANKET, Rear |
| 22 |
0341495 |
SOUND BLANKET, Port This part replaces 0331632. |
| 23 |
0331633 |
SOUND BLANKET, Front |
| 24 |
0341500 |
SOUND BLANKET, Stbd. This part replaces 0331938. |
| 25 |
0210644 |
LIFT HANDLE |
| 26 |
0334004 |
SCREW, Hook to bracket |
| 27 |
0210962 |
OWNER'S MANUAL, Evinrude |
| 27 |
0431721 |
OWNER'S MANUAL |
