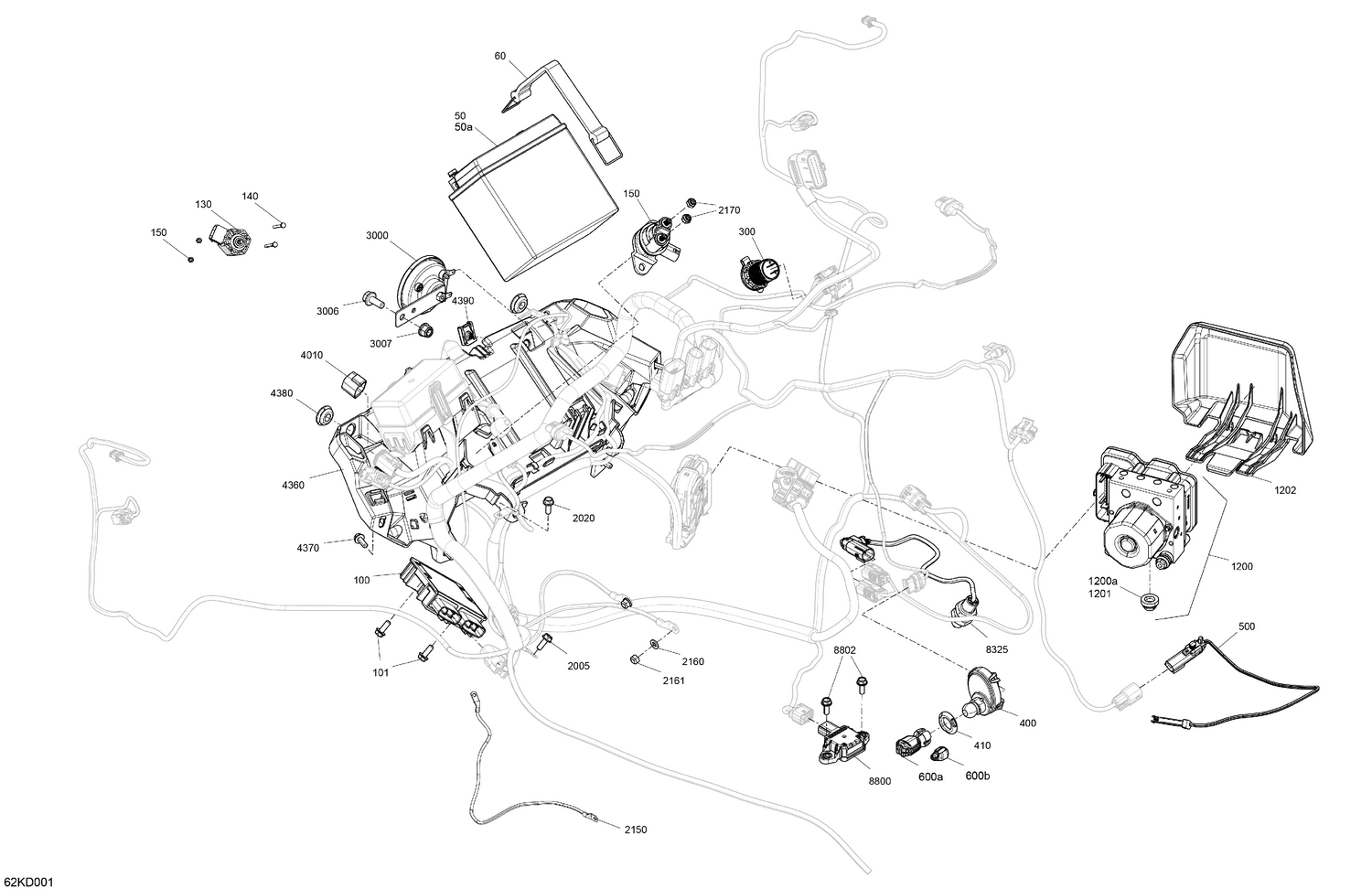

08- Electric - System
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 50a | 219800541 | Battery Bolt Kit |
| 60 | 293850112 | Holding Strap |
| 100 | 710006002 | Voltage Regulator |
| 101 | 210261650 | Hex. Flange Screw M6 X 16 |
| 130 | 219800354 | Steering Position Sensor |
| 140 | 207144044 | Hex. Cap Screw |
| 150 | 278003012 | Starter Relay |
| 300 | 219400510 | USB Outlet |
| 400 | 515179240 | Terminal Dess One-Wire |
| 410 | 278004274 | Specialized Nut |
| 500 | 705601717 | Passenger Footpeg Position Sensor |
| 600a | 710009109 | Grey, Can-Am DESS Key |
| 600b | 705013894 | Receptacle |
| 1200a | 710003279 | Shock Damper |
| 1201 | 710003279 | Shock Damper |
| 1202 | 710005542 | VCM Module Protector |
| 2005 | 210261640 | Hex. Flange Screw M6 X 16 |
| 2020 | 210261640 | Hex. Flange Screw M6 X 16 |
| 2150 | 710007463 | Starter Cable |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561434 | Elastic Stop Nut M6 |
| 2170 | 232561600 | Hex. Elastic Stop Nut M6 |
| 3000 | 710006157 | Horn |
| 3006 | 207682046 | Hex. Flange Screw M8 X 20 |
| 3007 | 233281416 | Hex. Elastic Flange Nut M8 |
| 4010 | 710004904 | Connector Plug |
| 4360 | 710007891 | Front Electronic Component Support |
| 4370 | 210261650 | Hex. Flange Screw M6 X 16 |
| 4380 | 705003264 | Grommet |
| 4390 | 250100208 | Panel Nut M6 X 1.0 |
| 8325 | 219800558 | Switch Brake Kit This part replaces 710008326. |
| 8800 | 710005658 | Yaw Rate Sensor |
| 8802 | 210261650 | Hex. Flange Screw M6 X 16 |
