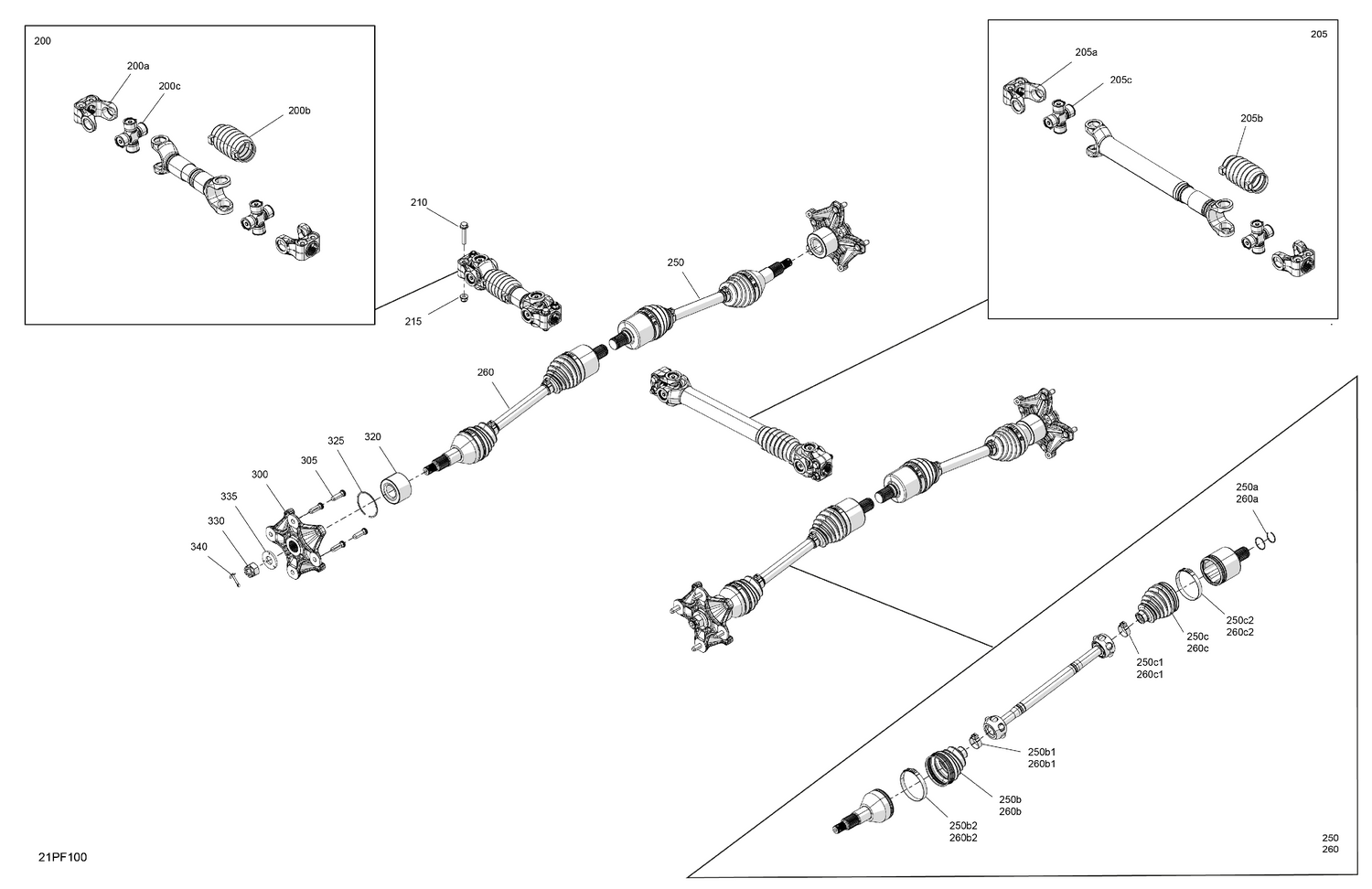

04- Drive - Rear - Common Parts
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 200a | 715900974 | Connecting Yoke 20Th |
| 200b | 715900975 | Drive Shaft Boot Kit |
| 200c | 715900976 | Universal Joint Ass'y |
| 205a | 715900974 | Connecting Yoke 20Th |
| 205b | 715901050 | Drive Shaft Boot Kit |
| 205c | 715900976 | Universal Joint Ass'y |
| 210 | 250001133 | Hex. Flange Screw M8 X 45 Scotch Grip |
| 215 | 233281416 | Hex. Elastic Flange Nut M8 |
| 250a | 715500463 | Circlip Joint |
| 250b1 | 715500475 | Clamp Small |
| 250b2 | 715500476 | Clamp Large |
| 250c1 | 715500475 | Clamp Small |
| 250c2 | 715500477 | Clamp Large |
| 260a | 715500463 | Circlip Joint |
| 260b1 | 715500475 | Clamp Small |
| 260b2 | 715500476 | Clamp Large |
| 260c1 | 715500475 | Clamp Small |
| 260c2 | 715500477 | Clamp Large |
| 305 | 250300055 | Wheel Stud M10 X 1.25 |
| 320 | 293350150 | Ball Bearing |
| 325 | 293370019 | Circlip |
| 330 | 232291413 | Hex. Flange Castellated Nut M18 |
| 335 | 250200171 | Conical Spring Washer M18 |
