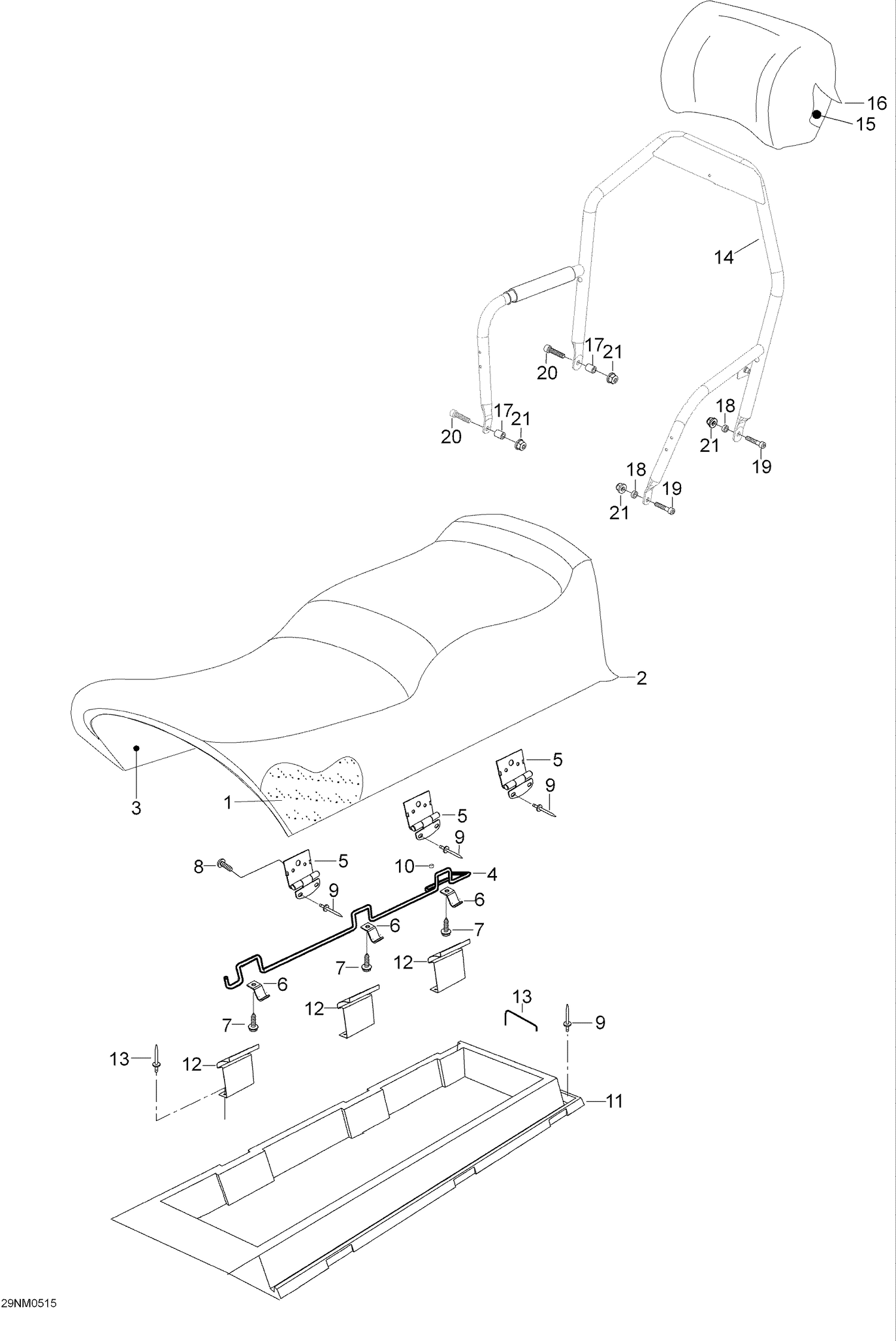

| Ref | Part Number | Description |
|---|
| 1 |
605150630 |
SEAT FOAM - Call your local BRP dealership |
| 2 |
605150617 |
Seat cover |
| 3 |
5144962 |
Seat Base - Call your local BRP dealership |
| 4 |
5245337 |
Locking rod |
| 5 |
5346518 |
HINGE - Call your local BRP dealership |
| 6 |
5446102 |
Locking plate |
| 7 |
40888 |
Wronic-screw 4,2 x 19 |
| 8 |
40887 |
Wronic-screw 4,2 x 9,5 |
| 9 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 10 |
28019 |
Plug |
| 11 |
605350823 |
Seat box |
| 12 |
5345195 |
LOCKING DEVICE - Call your local BRP dealership |
| 13 |
5441849 |
Stopper hook |
| 14 |
605250296 |
Backrest |
| 15 |
605349172 |
Foam |
| 16 |
605350799 |
Cover |
| 17 |
5446380 |
Sleeve |
| 18 |
5446381 |
Sleeve |
| 19 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 20 |
40286 |
Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership |
