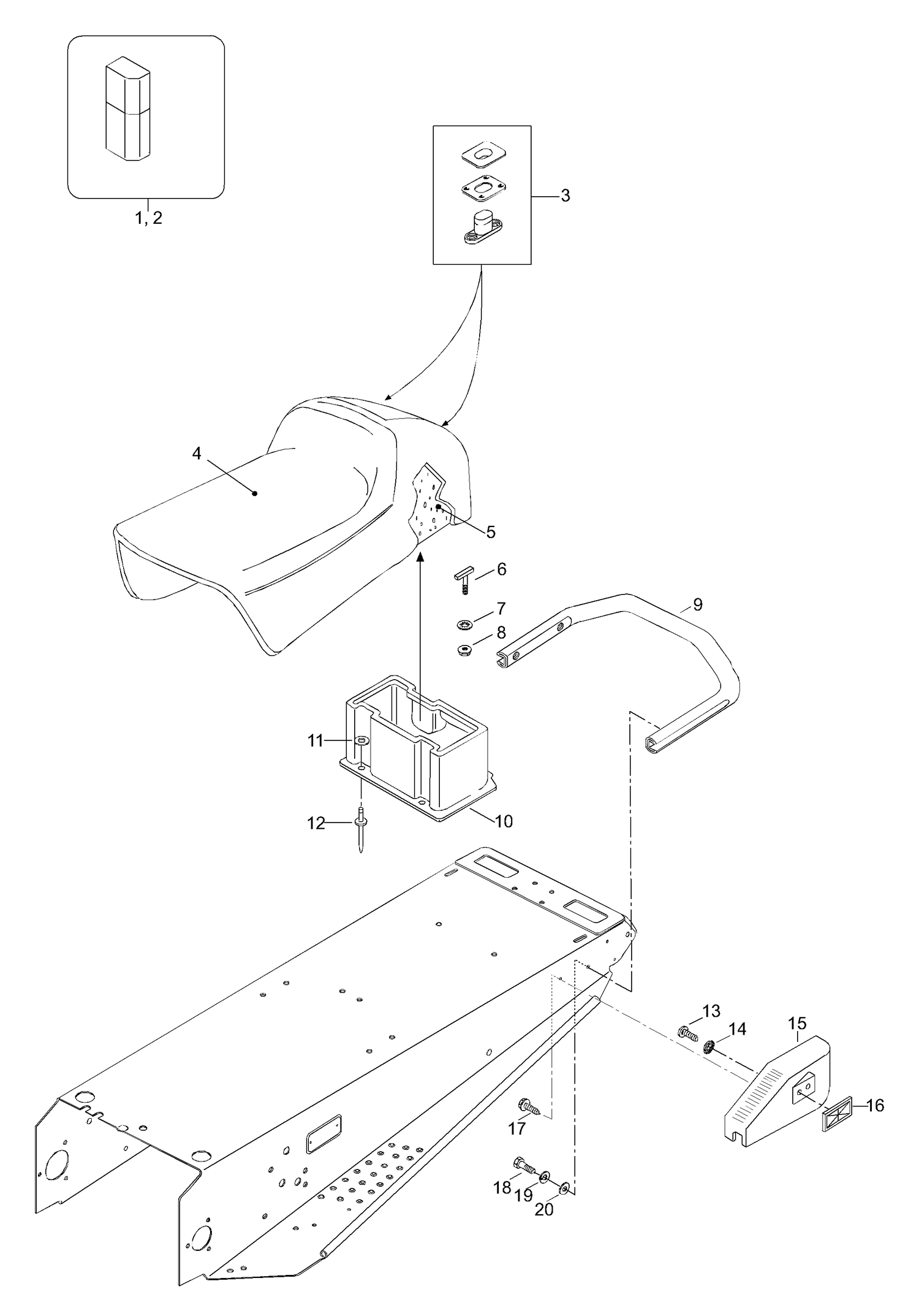

| Ref | Part Number | Description |
|---|
| 1 |
5445403 |
Tool box (with tools) |
| 2 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 3 |
28354 |
Seat Buckle |
| 4 |
5245233 |
Seat cover |
| 5 |
5145790 |
Seat foam |
| 6 |
732601221 |
T-screw |
| 7 |
732610072 |
Push Nut |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 9 |
5245189 |
Rear bumper |
| 10 |
572106300 |
Rear trunk |
| 11 |
517297900 |
WASHER - Call your local BRP dealership |
| 12 |
293150104 |
Pop Rivet 3/16 This part replaces 390409600. |
| 13 |
40070 |
Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 14 |
20018 |
Washer |
| 15 |
572049200 |
L.H. molding |
| 15 |
572049300 |
R.H. molding |
| 16 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 17 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 18 |
40316 |
Hex Sc. M8 x 20 BN73 m(1=10pcs) - Call your local BRP dealership |
| 19 |
Not |
Available As Spare Part - Spring washer - DOES NOT APPLY TO THIS MODEL |
