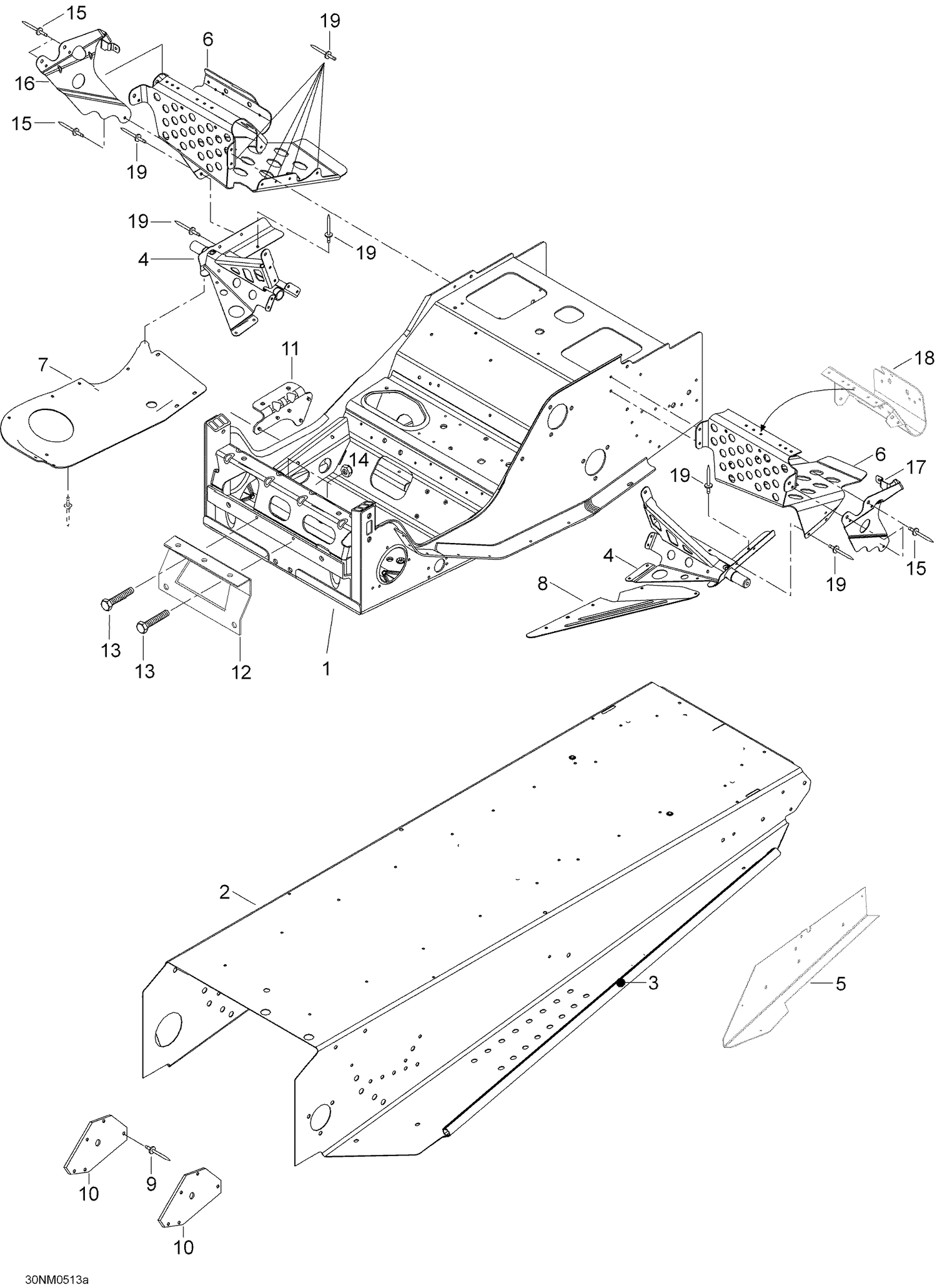

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Tunnel |
| 3 |
Not |
Available As Spare Part - Support |
| 4 |
5246775 |
R.H. support |
| 4 |
5246776 |
L.H. support |
| 5 |
605351194 |
L.H. Support |
| 5 |
605351195 |
R.H.Support |
| 6 |
605250239 |
R.H. front footrest |
| 6 |
605250240 |
L.H. front footrest |
| 7 |
518322636 |
RH BOTTOM PAN PLATE - Call your local BRP dealership |
| 8 |
605349267 |
L.H. reinf. plate |
| 9 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 10 |
5348321 |
Support, front arm |
| 11 |
518322635 |
Bracket |
| 12 |
5346111 |
Support plate |
| 13 |
40029 |
Hex. screw M6 x 16 |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 15 |
36087 |
Rivet |
| 16 |
5146912 |
R.H. footrest reinforcem. |
| 17 |
5146913 |
L.H. footrest reinforcem. |
| 18 |
5146917 |
R.H. toe hold |
| 18 |
5146918 |
L.H. toe hold |
