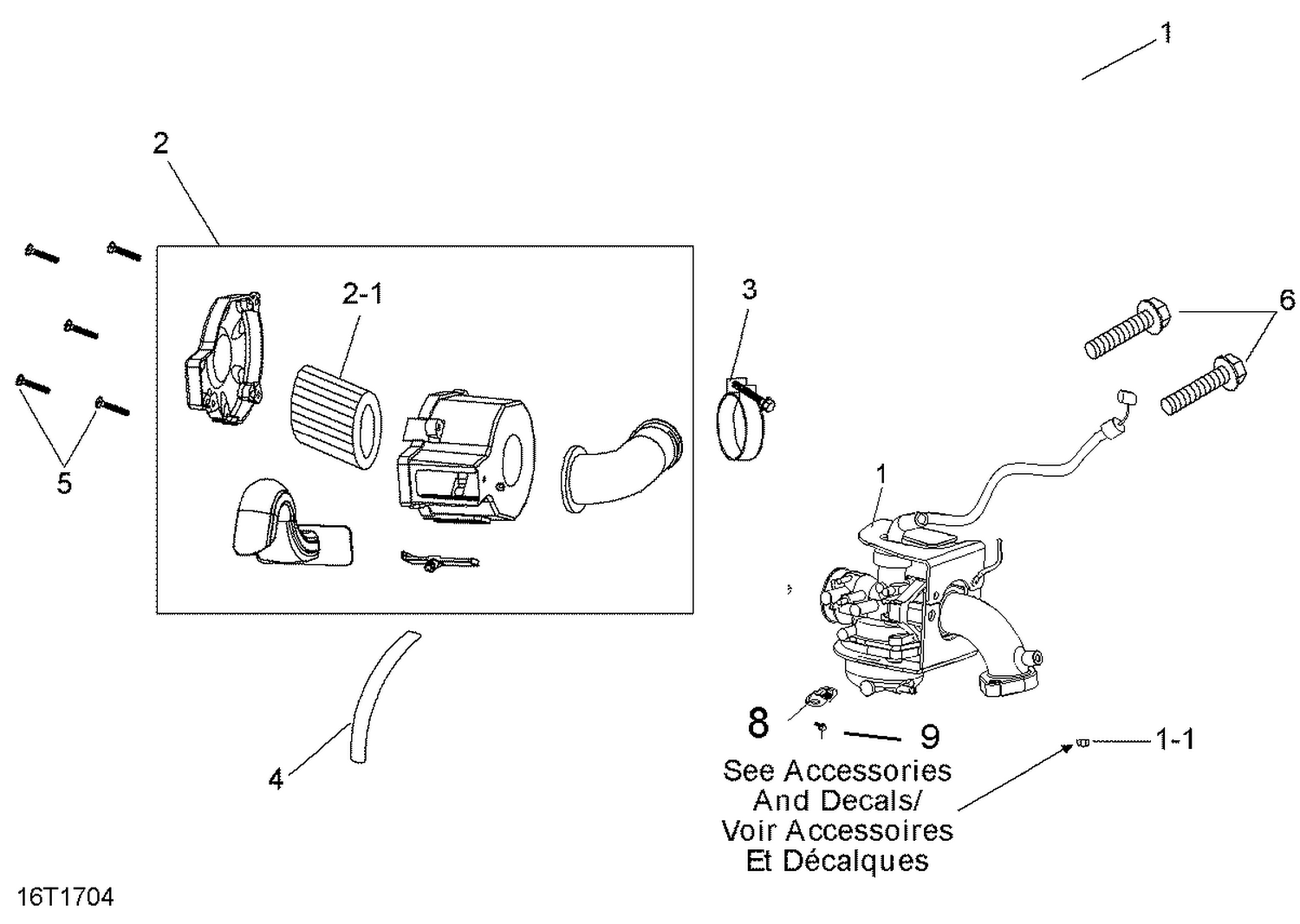

02- Carburetor And Air Cleaner
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V16101DGE010 | Carburetor Ass'y |
| 2 | V17200DGF050LL | Air Silencer Ass'y |
| 3 | V17208DGF010 | Clamp |
| 4 | XXX | Not Available As Spare Parts |
| 5 | V9300005016010LL | ROUND HEAD BOLT - Call your local BRP dealership |
| 6 | 207662544 | Hex. Flange Screw M6 X 25 |
| 8 | V50312DGF000 | Bracket |
