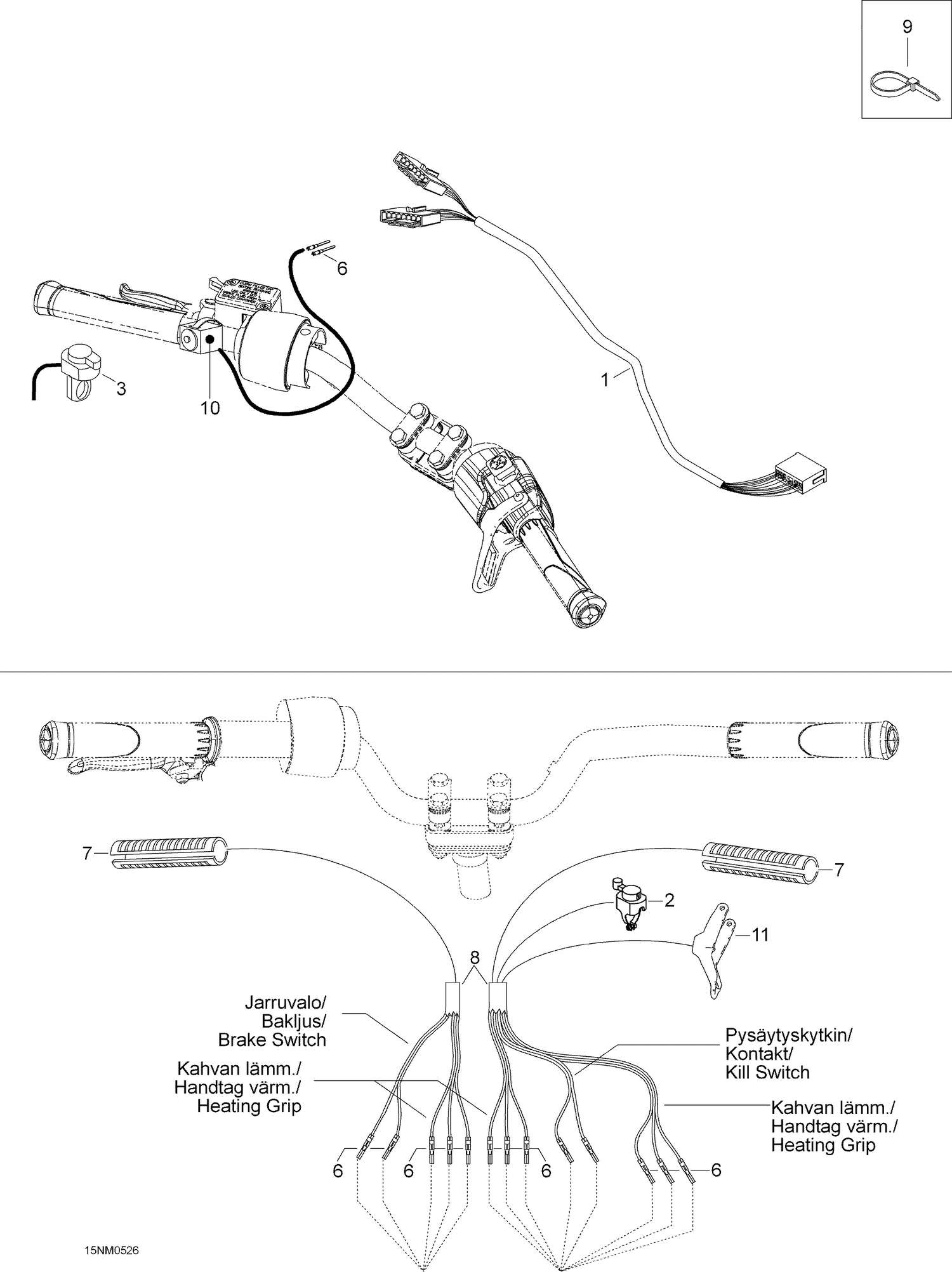

| Ref | Part Number | Description |
|---|
| 1 |
605151256 |
Main harness ass'y |
| 2 |
515177454 |
KILL SWITCH - Call your local BRP dealership This part replaces 515175685. |
| 3 |
605350898 |
Light switch |
| 6 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 7 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership This part replaces 515175657. |
| 8 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 9 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 10 |
605350897 |
Srat knobb |
| 11 |
512060214 |
Handle Assy This part replaces 512059767. |
