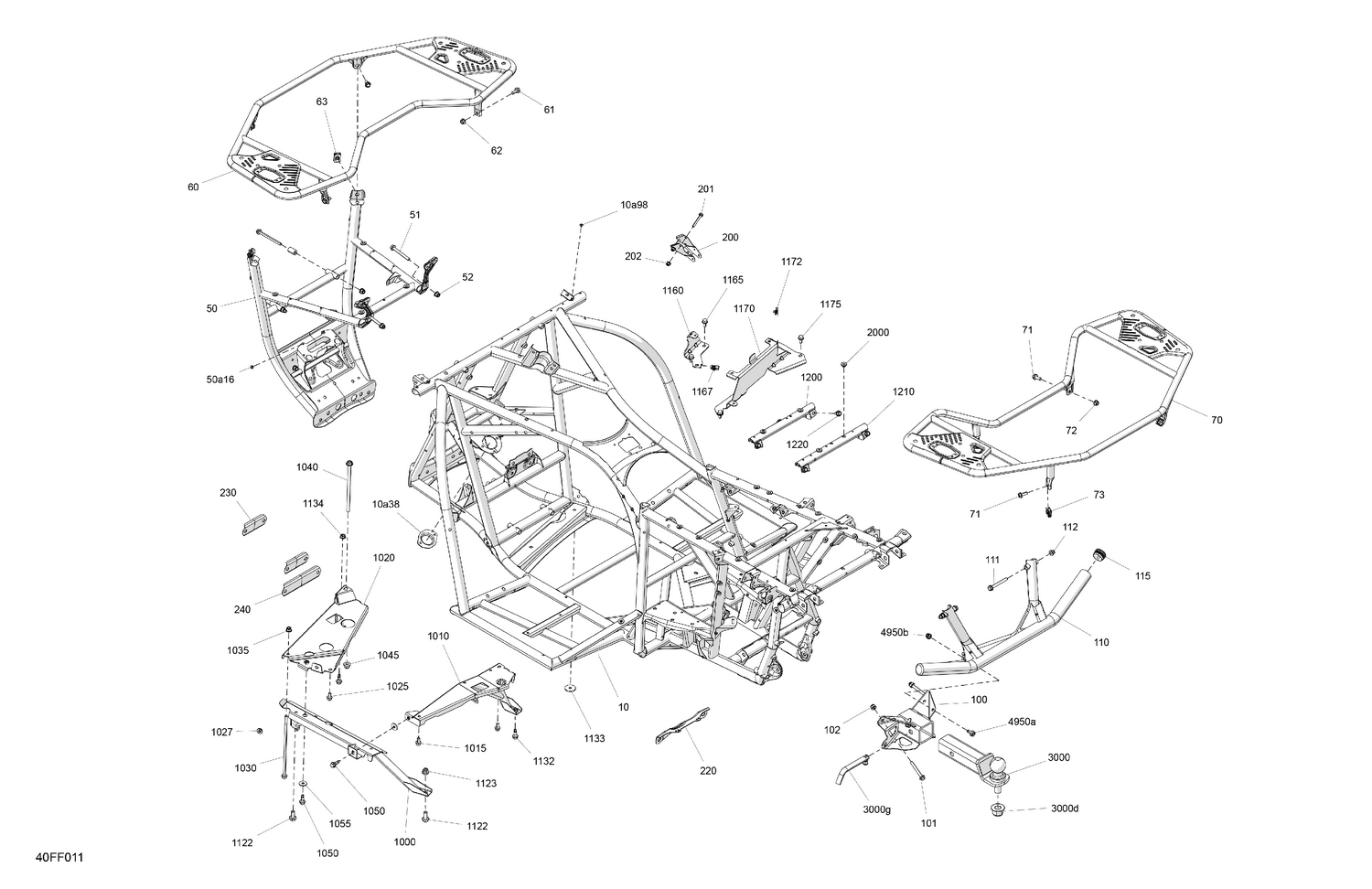

| Ref | Part Number | Description |
|---|
| 10 |
715011429 |
Chassis Max Kit |
| 10a38 |
709402713 |
Lower Bearing Support |
| 10a98 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 50a16 |
293150293 |
Pop Rivet 3/16 X ,425 |
| 51 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 52 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 60 |
705208148 |
Deep Black, Front Luggage Rack |
| 61 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 62 |
233181414 |
Hex. Flange Nut M8 |
| 63 |
250100236 |
Panel Nut M8 X 1.25 |
| 70 |
705208247 |
Deep Black, Rear Luggage Rack |
| 71 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 72 |
233181414 |
Hex. Flange Nut M8 |
| 73 |
250100236 |
Panel Nut M8 X 1.25 |
| 100 |
715010531 |
Trailer Hitch Kit |
| 101 |
207686544 |
Hex. Flange Screw, M8 X 65 |
| 102 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 110 |
715009554 |
Deep Black, Rear Bumper Kit |
| 111 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 112 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 115 |
705202455 |
Cap |
| 200 |
705208228 |
Lever Support |
| 201 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 202 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 220 |
705211974 |
Rear Suspension Arm Reinforcement |
| 230 |
705212296 |
Front Upper Suspension Arm Reinforcement |
| 240 |
705211664 |
Front Lower Suspension Arm Reinforcement |
| 1000 |
705211972 |
LH Lower Battery Support |
| 1010 |
705211998 |
RH Upper Battery Support |
| 1015 |
210281640 |
Hex Forming Screw Hd.Fl. Din. M8 X 16 |
| 1020 |
705212090 |
Front Upper Battery Support |
| 1025 |
210281640 |
Hex Forming Screw Hd.Fl. Din. M8 X 16 |
| 1027 |
293450383 |
Threaded Insert |
| 1030 |
518335077 |
Hex Flange Screw M8 X 235MM |
| 1035 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1040 |
250001334 |
Geoblack, Hex. Flange Screw M10 X 185 |
| 1045 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 1050 |
250001085 |
Hex Screw M8 S.Grip |
| 1055 |
234082410 |
Flat Washer 8 mm |
| 1122 |
207602546 |
Hex. Flange Screw M10 X 25 |
| 1123 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 1132 |
250001085 |
Hex Screw M8 S.Grip |
| 1133 |
250200203 |
Washer |
| 1134 |
233181414 |
Hex. Flange Nut M8 |
| 1160 |
705212589 |
Front Battery Charger Support |
| 1165 |
210281640 |
Hex Forming Screw Hd.Fl. Din. M8 X 16 |
| 1167 |
250100198 |
Panel Nut M6 X 1.0 |
| 1170 |
705212007 |
Rear Battery Charger Support |
| 1172 |
250100198 |
Panel Nut M6 X 1.0 |
| 1175 |
210281640 |
Hex Forming Screw Hd.Fl. Din. M8 X 16 |
| 1200 |
705213719 |
Front Upper Cross Member |
| 1210 |
705213721 |
Rear Upper Cross Member |
| 1220 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 2000 |
293450383 |
Threaded Insert |
| 3000d |
250100104 |
Elastic Flange Nut M20 |
| 3000g |
705204490 |
Hitch Pin |
| 4950a |
207682044 |
Hex. Flange Screw M8 X 20 |
