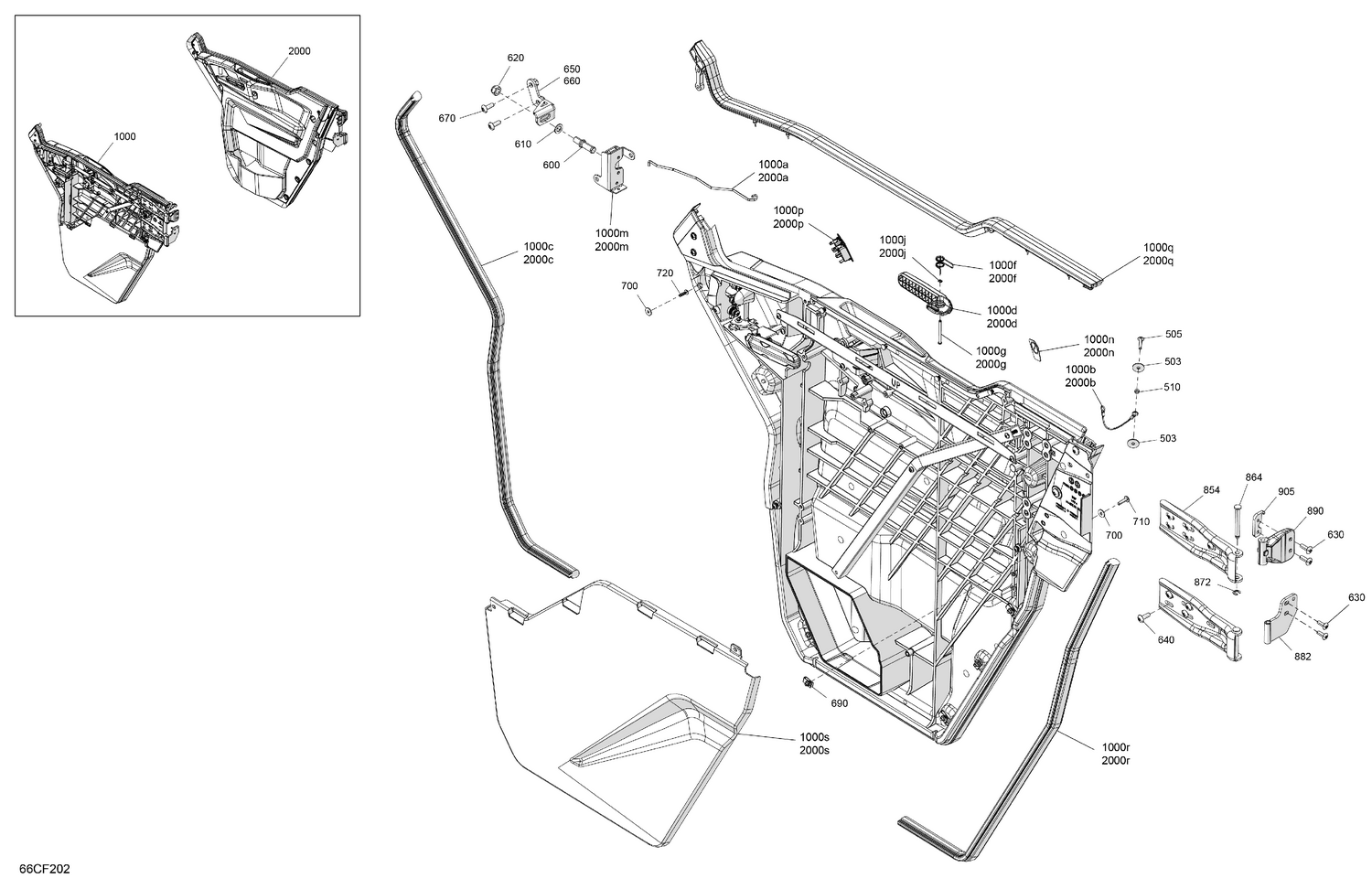

07- Enclosure Cab - Front Doors
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 503 | 250200029 | Washer M6 |
| 505 | 250000722 | Torx Screw M6 X 20 |
| 510 | 708300737 | Bushing |
| 600 | 705800850 | Rod Latch |
| 610 | 250200005 | Conical Spring Washer M12 |
| 620 | 232521416 | Elastic Stop Nut M12 |
| 630 | 250000874 | Torx Truss M8 X 25 |
| 640 | 250000874 | Torx Truss M8 X 25 |
| 650 | 705801086 | LH Front Striker Support |
| 660 | 705801097 | RH Front Striker Support |
| 670 | 250000874 | Torx Truss M8 X 25 |
| 690 | 250100198 | Panel Nut M6 X 1.0 |
| 700 | 234062670 | Stainless Steel Flat Washer |
| 710 | 250000807 | Torx Truss Screw M6 X 25 |
| 720 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 854 | 705800751 | Door Hinge |
| 864 | 705800781 | Hinge Pin |
| 872 | 293370125 | Retaining Ring |
| 882 | 705801025 | Lower Hinge |
| 890 | 705800802 | Upper Door Hinge |
| 905 | 705210255 | Support |
| 1000a | 705801452 | Guide Pin |
| 1000b | 705801437 | Retaining Cable |
| 1000c | 705801382 | Gasket |
| 1000d | 705017152 | Door Handle |
| 1000f | 705013062 | Handle Spring |
| 1000g | 705207440 | Handle Axle |
| 1000j | 705601875 | External Retaining Ring |
| 1000m | 705801464 | LH Front Door Latch |
| 1000n | 704909996 | LH Door Pictogram Label |
| 1000p | 710007173 | Plug Carling |
| 1000q | 705800913 | LH Upper Door Trim |
| 1000r | 705801384 | LH Interior Door Panel |
| 1000s | 705800716 | LH Lower Door Panel |
| 2000a | 705801453 | Guide Pin |
| 2000b | 705801437 | Retaining Cable |
| 2000c | 705801382 | Gasket |
| 2000d | 705017152 | Door Handle |
| 2000f | 705013062 | Handle Spring |
| 2000g | 705207440 | Handle Axle |
| 2000j | 705601875 | External Retaining Ring |
| 2000m | 705801465 | RH Front Door Latch |
| 2000n | 704909998 | RH Door Pictogram Label |
| 2000p | 710007173 | Plug Carling |
| 2000q | 705800914 | RH Upper Door Trim |
| 2000r | 705801386 | RH Interior Door Panel |
