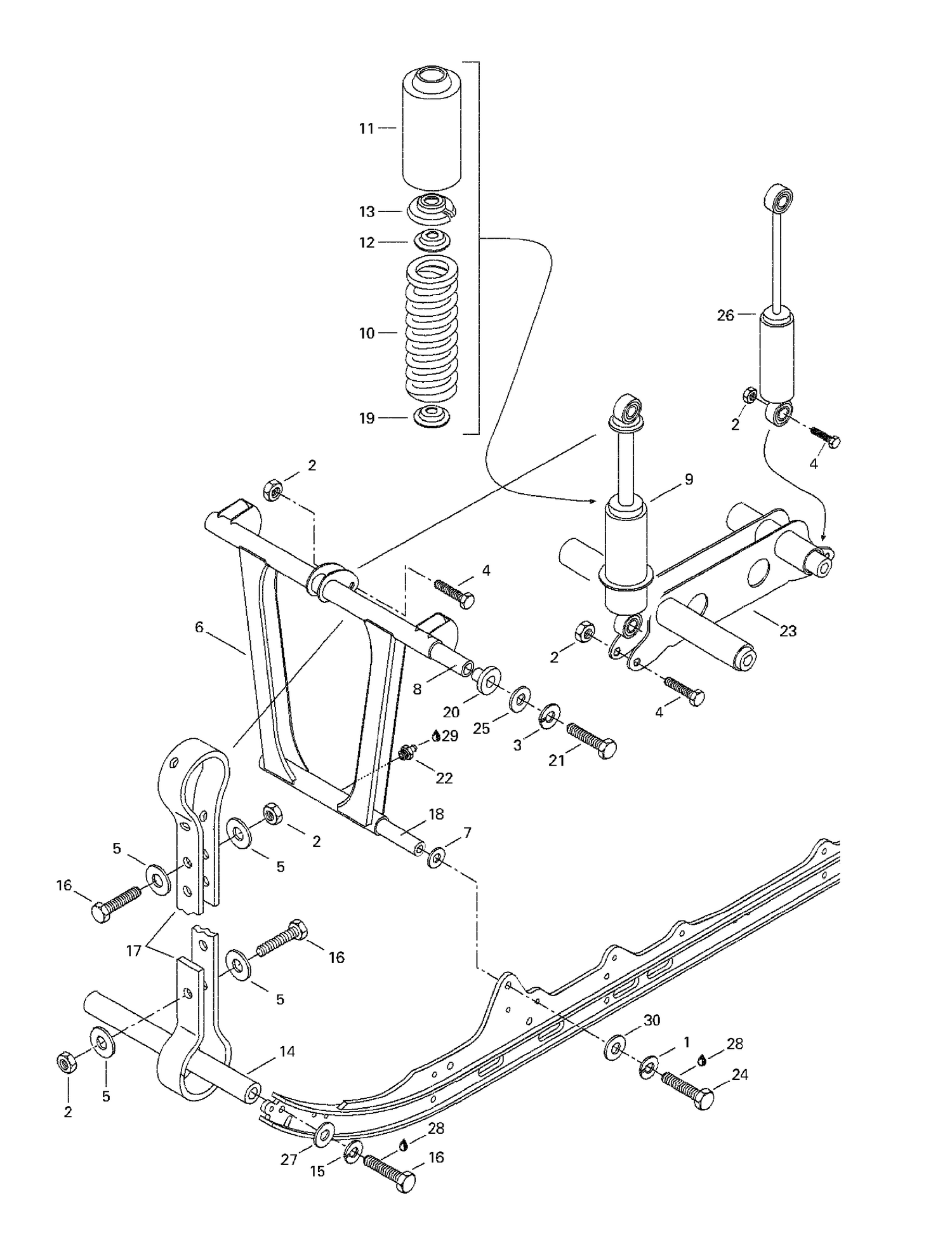

| Ref | Part Number | Description |
|---|
| 1 |
224721218 |
Lock Washer 12 mm |
| 2 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 3 |
234101601 |
Helicoidal Lock Washer M10 This part replaces 213000003. |
| 4 |
207084044 |
Hex. Screw M8 X 40 This part replaces 222084065. |
| 5 |
517078700 |
WASHER - Call your local BRP dealership |
| 6 |
503167400 |
Welded Front Arm |
| 7 |
503175400 |
Hardened Washer |
| 8 |
503190387 |
SHAFT - Call your local BRP dealership This part replaces 503159000. |
| 9 |
414866400 |
SHOCK - Call your local BRP dealership |
| 10 |
415069900 |
Spring |
| 11 |
503193663 |
Protector This part replaces 517280900. |
| 12 |
706200785 |
Cap This part replaces 503141600. |
| 13 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 14 |
503151600 |
Axle |
| 15 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 16 |
207183044 |
Hex. Screw M8 X 30 This part replaces 222083065. |
| 17 |
570038800 |
Stopper Strap |
| 18 |
503174800 |
Lower Axle |
| 19 |
503165100 |
GUIDE_SPRING - Call your local BRP dealership |
| 20 |
414894900 |
Cushion |
| 21 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065. |
| 22 |
408200700 |
Grease Fitting |
| 23 |
503173300 |
Shock Support |
| 24 |
222023565 |
SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership |
| 25 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 26 |
414927700 |
Shock |
| 27 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 28 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 29 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
