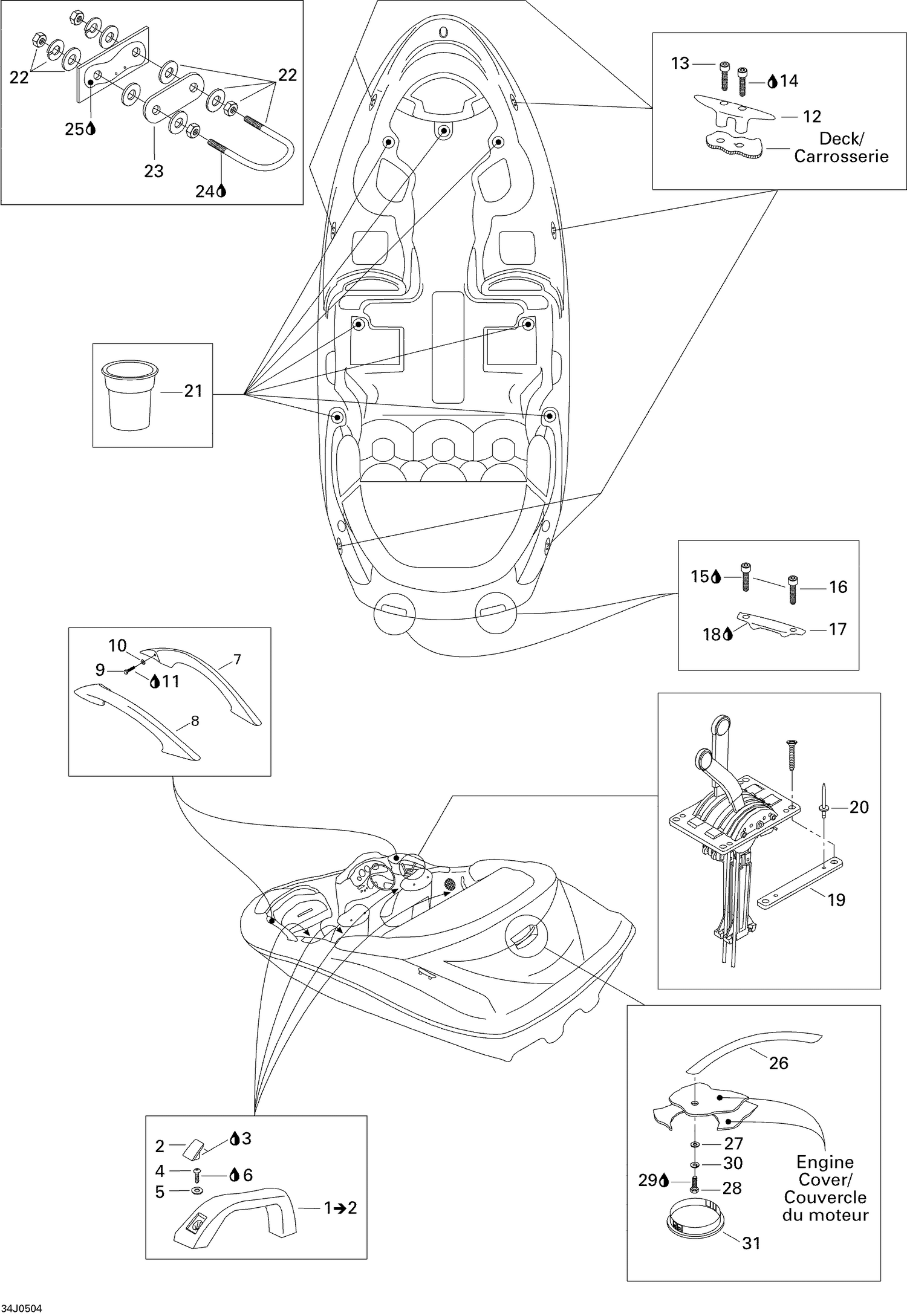

| Ref | Part Number | Description |
|---|
| 2 |
204070056 |
Snap Cap |
| 4 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 5 |
234061600 |
Stainless Flat Washer M6 |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
204070590 |
RH Lateral Grip Handle |
| 8 |
204070591 |
LH Lateral Grip Handle |
| 9 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 10 |
234082600 |
Flat Washer 8 mm, Stainless |
| 11 |
293800060 |
Loctite 243, 10 ml |
| 12 |
204070592 |
CLEAT - Call your local BRP dealership |
| 13 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
293800060 |
Loctite 243, 10 ml |
| 16 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 17 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 18 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 19 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
| 20 |
293150013 |
Pop Rivet 3/16" |
| 21 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 22 |
204070418 |
U-Bolt |
| 23 |
204070219 |
Finition Plate |
| 24 |
293800005 |
Loctite 271, 10 ml |
| 25 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 26 |
204071627 |
Grip Handle |
| 27 |
234082600 |
Flat Washer 8 mm, Stainless |
| 28 |
204100118 |
Hex. Screw |
| 29 |
293800060 |
Loctite 243, 10 ml |
| 30 |
234181601 |
Lock Washer 8 mm, Stainless |
