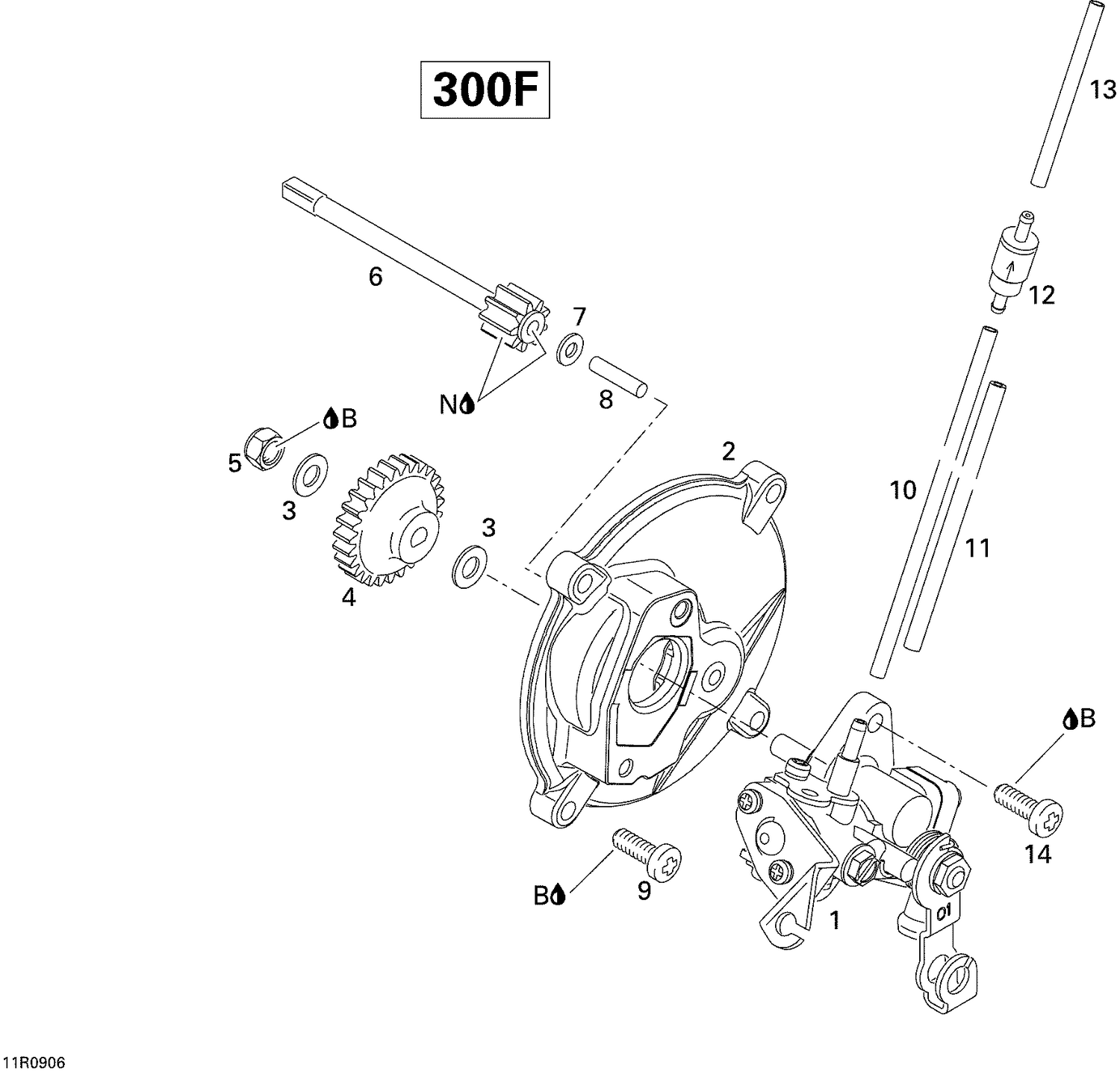

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| 1 |
420890252 |
OIL PUMP - Call your local BRP dealership |
| 2 |
420910160 |
PUMP MOUNTING FLANGE - Call your local BRP dealership |
| 3 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 4 |
420935930 |
Oil Pump Gear, 27 Teeth |
| 5 |
232561434 |
Elastic Stop Nut M6 |
| 6 |
420935975 |
GEAR, 9 TEETH - Call your local BRP dealership |
| 7 |
420244072 |
Flat Washer 4 This part replaces 420244073. |
| 8 |
420832260 |
NEEDLE PIN - Call your local BRP dealership |
| 9 |
420841976 |
SCREW - Call your local BRP dealership |
| 10 |
219704404 |
Oil Hose 1500Mm Long |
| 11 |
219704360 |
Hose 6 Mm 15000Mm Long |
| 12 |
420956515 |
Check Valve Ass’y This part replaces 404160200. |
| 13 |
219704404 |
Oil Hose 1500Mm Long |
| 14 |
420841971 |
Screw |
