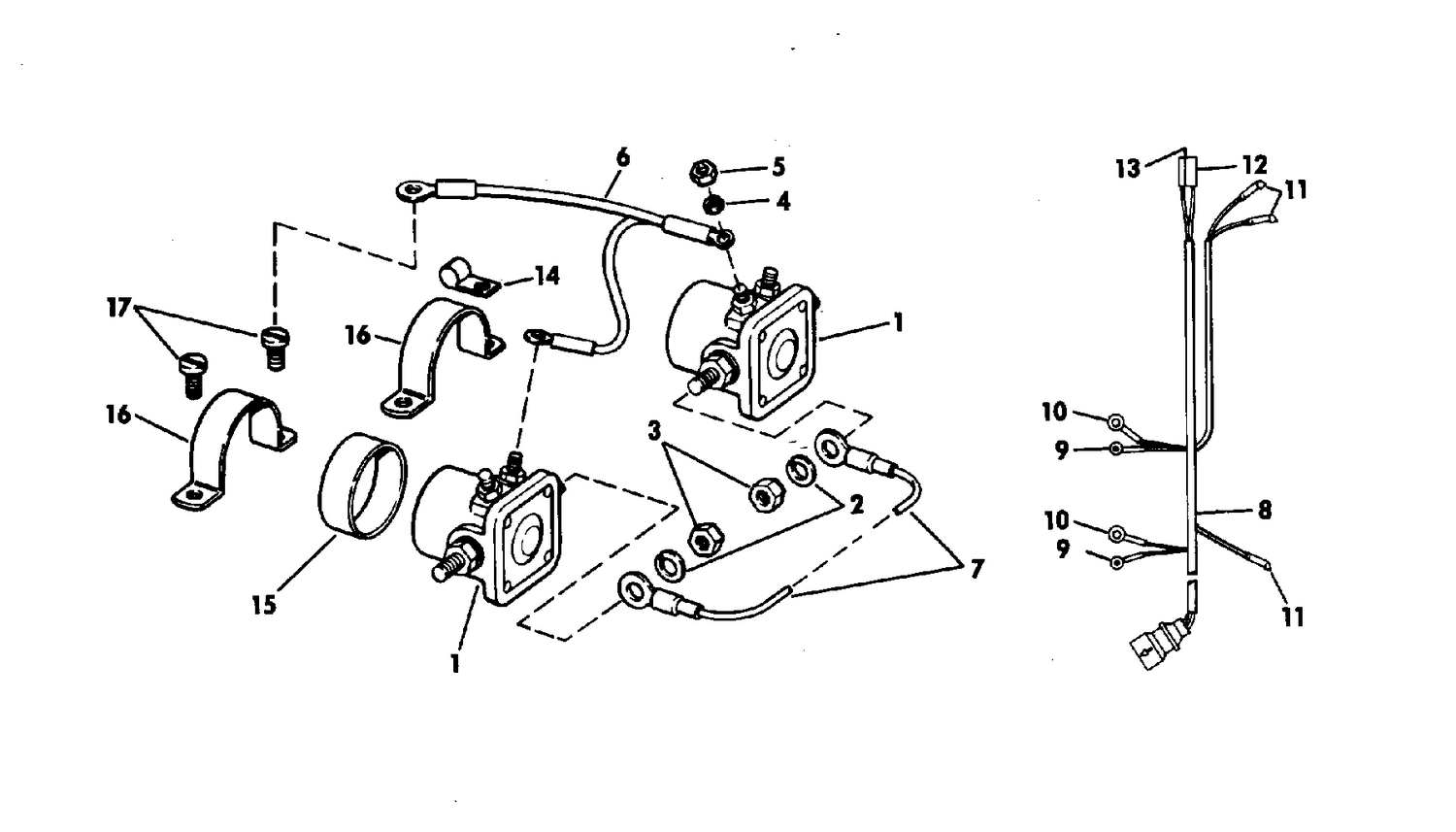

TILT SOLENOID GROUP 155,225 & 245 HP STERN DRIVE
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 0303783 | NUT |
| 6 | 0380354 | LEAD ASSEMBLY, Ground |
| 7 | 0981890 | LEAAD ASSY This part replaces 0383421. |
| 8 | 0979765 | CABLE ASSEMBLY |
| 12 | 0510471 | CONNECTOR |
| 13 | 0510469 | TAB |
| 14 | 0330151 | CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 15 | 0311217 | MANCHON, solénoïde |
| 16 | 0330112 | BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 0383363 | 0383363 | TILT SOLENOID & CABLE ASSEMBLY |
