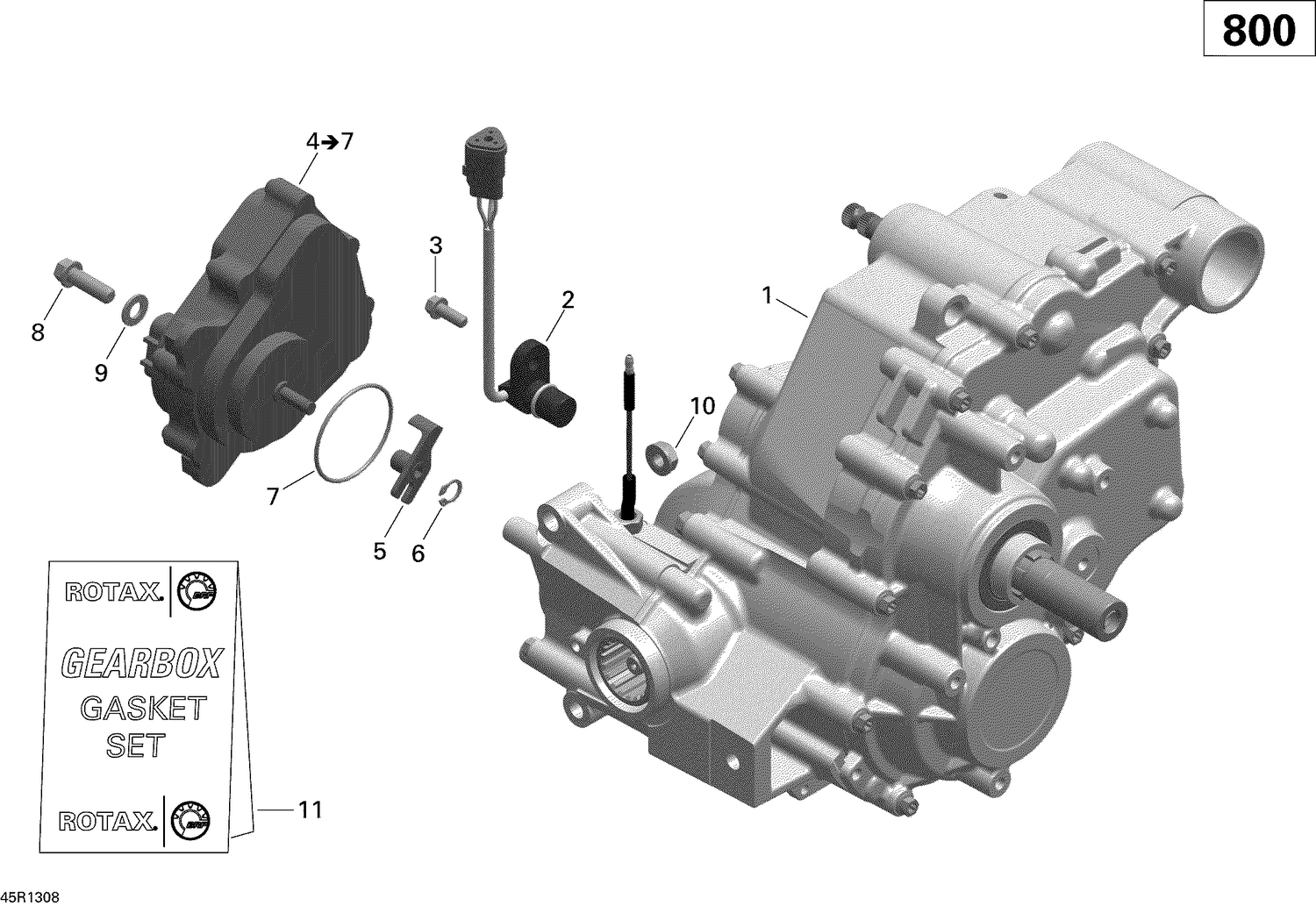

01- Gear Box Assy And 4X4 Actuator
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420686714 | Gear Box This part replaces 420685391. |
| 2 | 420265727 | Camshft Position Sensor Ass'y This part replaces 420265626. |
| 3 | 420641048 | Torx Flange Screw M6 X 16 |
| 5 | 415129175 | Shifting Fork |
| 6 | 293370042 | Circlip This part replaces 415129176. |
| 7 | 293300117 | O-Ring |
| 8 | 420440372 | Torx Flange Screw M8 X 25 |
| 9 | 420250315 | Flat Washer 8.4 mm This part replaces 420250311. |
| 10 | 420842619 | Hex. Nut M8 |
