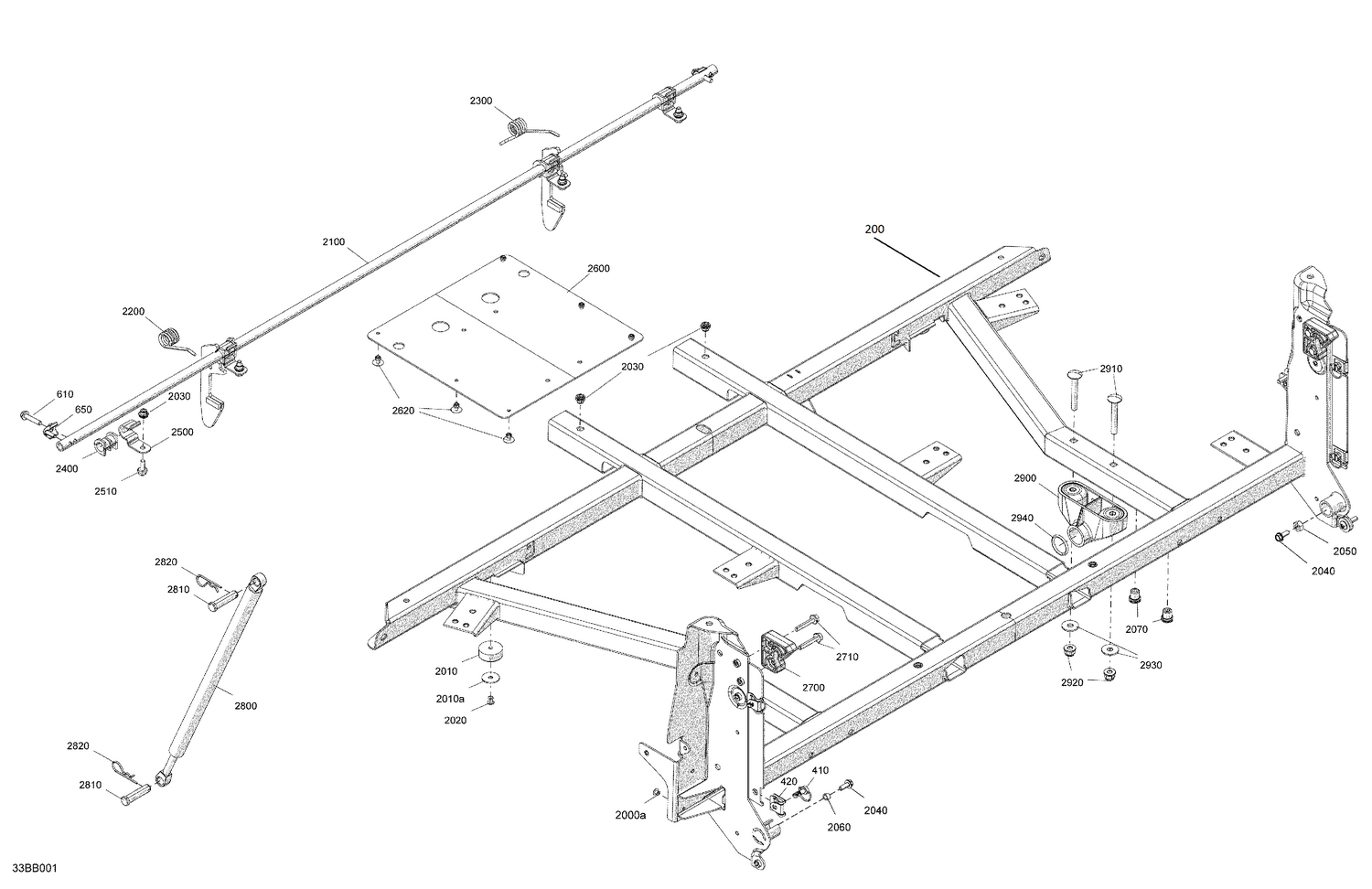

07- Body - Cargo - Lower Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 708304600 | Open Carrier Frame This part replaces 708304191. |
| 410 | 705002649 | Quarter Turn Screw |
| 420 | 705002651 | Quarter Turn Nut |
| 610 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 650 | 708304074 | Mounting Clamp |
| 2000a | 390402200 | Pop Rivet 3/16" |
| 2010a | 224060251 | Washer |
| 2020 | 293150104 | Pop Rivet 3/16" |
| 2030 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 2040 | 210261650 | Hex. Flange Screw M6 X 16 |
| 2050 | 232081414 | Hex. Nut M8 |
| 2060 | 293900104 | Bushing |
| 2070 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 2100 | 708304029 | Latch Lever |
| 2200 | 708303190 | LH Torsion Spring |
| 2300 | 708303191 | RH Torsion Spring |
| 2400 | 705500033 | Half Ring |
| 2500 | 708301479 | Clamp Retainer |
| 2510 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 2600 | 708304589 | Reinforcement This part replaces 708303670. |
| 2620 | 293150104 | Pop Rivet 3/16" |
| 2700 | 708304062 | Latch Stopper |
| 2710 | 207662554 | Hex. Flange Screw M6 X 25 |
| 2800 | 715007129 | Gas Shock Absorber |
| 2810 | 250400075 | Clevis Pin |
| 2820 | 414575600 | Hair Pin |
| 2900 | 708303735 | Support Pivot |
| 2910 | 207786044 | Carriage Bolt M8 X 60 |
| 2920 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2930 | 234082410 | Flat Washer 8 mm |
