Home / BRP / 2022 / 020 - SKI-DOO - Europe - MACHZ Series / FUEL PUMP - ROPE START MODELS

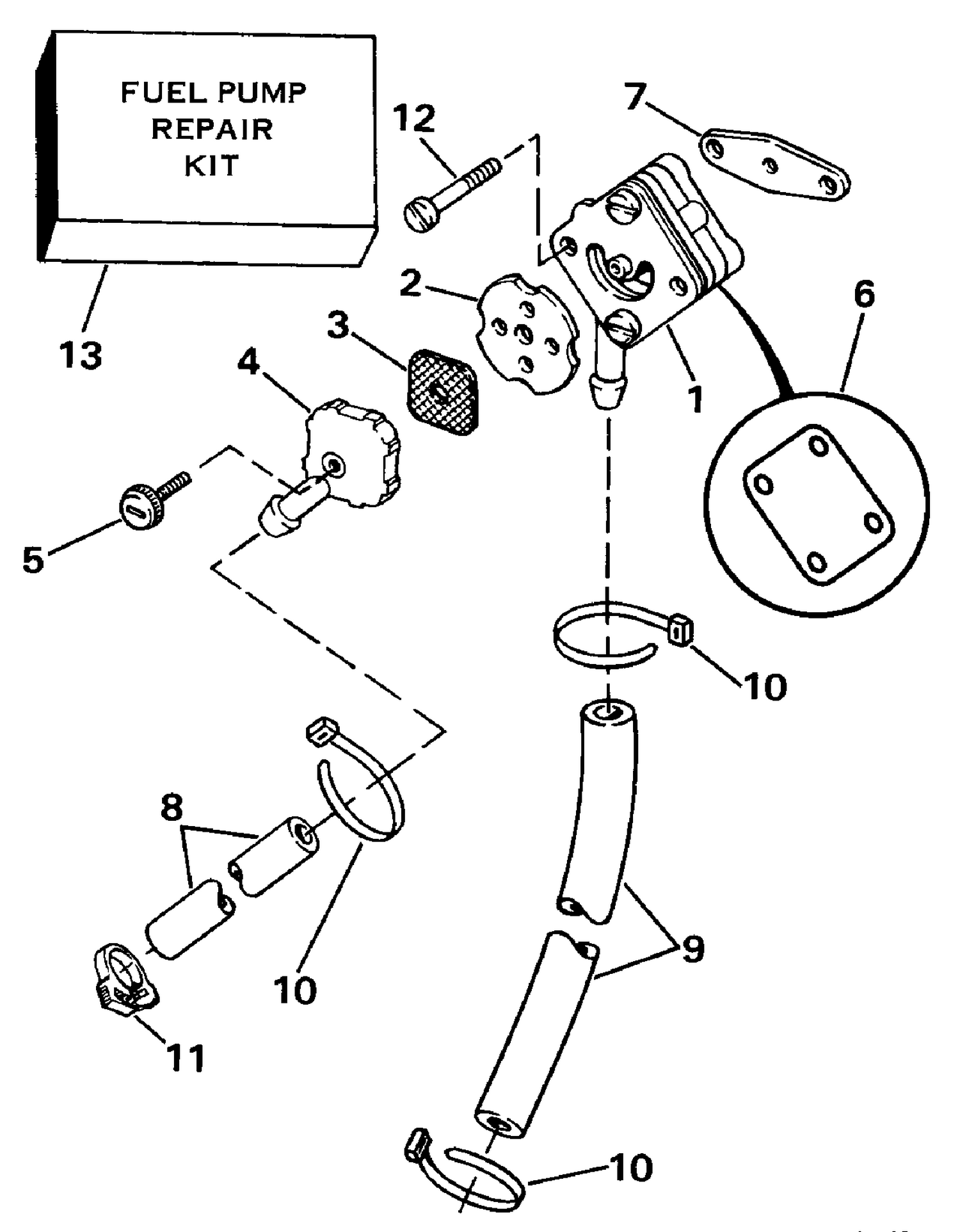

FUEL PUMP - ROPE START MODELS

FUEL PUMP - ROPE START MODELS

Parts (5)

RefPart NumberDescription
1 0397839 FUEL PUMP ASSY
7 0303615 GASKET
8 HOSE, Connector to pump, 21 in. (530mm)
9 HOSE, Pump to carburetor, 9 1/4 in. (235mm)
10 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
