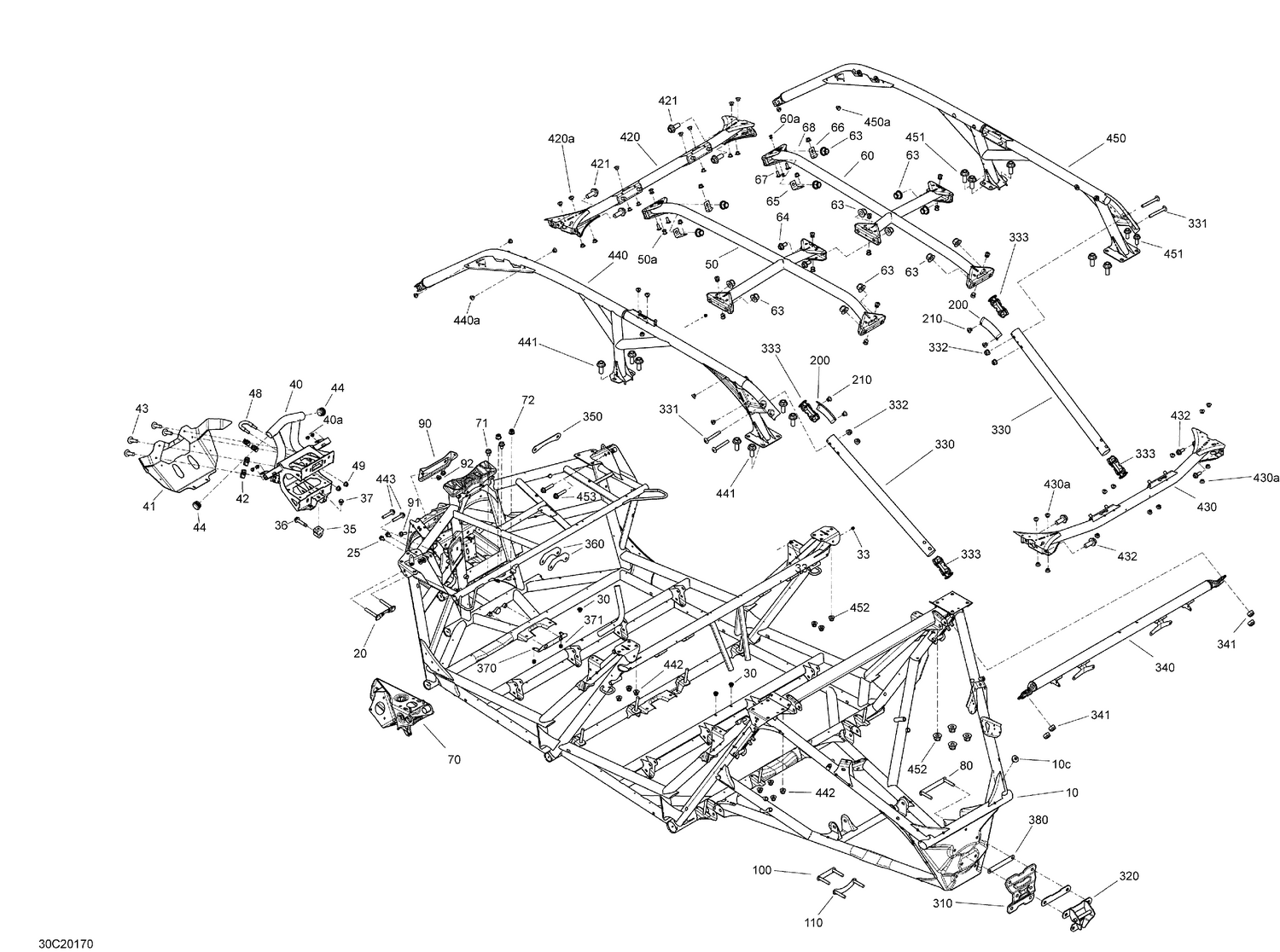

| Ref | Part Number | Description |
|---|
| 10 |
715008879 |
Manta Green, Chassis Kit This part replaces 715006610. |
| 10c |
390402200 |
Pop Rivet 3/16" |
| 20 |
705211561 |
Front Plate This part replaces 705207424. |
| 25 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 30 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 33 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 35 |
705206992 |
Bumper Link |
| 36 |
250000857 |
Flange Screw M12 X 60 This part replaces 250000987. |
| 37 |
250000060 |
Flange Screw M10 X 16, Scotch Grip |
| 40 |
715008964 |
Manta Green, Front Bumper Kit This part replaces 715006626. |
| 40a |
390402200 |
Pop Rivet 3/16" |
| 41 |
705206871 |
Front Master Plate |
| 42 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 43 |
250000722 |
Torx Screw M6 X 20 |
| 44 |
705202455 |
Cap |
| 48 |
705206983 |
U-Clamp |
| 49 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 50 |
705208284 |
Manta Green, LH Cage Reinforcement |
| 50a |
390402200 |
Pop Rivet 3/16" |
| 60 |
705208285 |
Manta Green, RH Cage Reinforcement |
| 60a |
390402200 |
Pop Rivet 3/16" |
| 63 |
233221466 |
Elastic Flange Nut M12 |
| 64 |
250000856 |
Hex. Flange Screw DIN.6921 M12X25 |
| 65 |
705211746 |
Deep Black, LH Cage Reinforcement This part replaces 705206806. |
| 66 |
705211747 |
Deep Black, RH Cage Reinforcement This part replaces 705206807. |
| 67 |
250000717 |
Torx Head Screw M6 X 16 |
| 68 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 70 |
705206924 |
DPS Support |
| 71 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 72 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 80 |
705206852 |
Rear Upper Plate |
| 90 |
705206877 |
Stifner Plate |
| 91 |
207661654 |
Hex. Flange Screw M6 X 16 |
| 92 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 100 |
705211558 |
Rear Central Plate This part replaces 705206853. |
| 110 |
705206854 |
Rear Plate |
| 200 |
705208286 |
Connecting Plate |
| 210 |
293150102 |
Rivet 3/16" |
| 310 |
705205750 |
Rear Plate |
| 320 |
715004450 |
Black, Rear Attachement Hook |
| 330 |
705208287 |
Manta Green, Rear Tube |
| 331 |
250000901 |
Torx Truss M8 X 65 |
| 332 |
250100025 |
Elastic Flange Nut M8 |
| 333 |
705210648 |
Sleeve This part replaces 705205634. |
| 340 |
705210001 |
Safety Belt Anchorage This part replaces 705208518. |
| 341 |
232521416 |
Elastic Stop Nut M12 |
| 350 |
705211552 |
Connecting Plate This part replaces 705207425. |
| 360 |
705210249 |
Retaining Plate This part replaces 705205295. |
| 370 |
706203122 |
Support |
| 371 |
390402200 |
Pop Rivet 3/16" |
| 380 |
705206069 |
Front Upper Plate |
| 420 |
705210229 |
Manta Green, Front Cross Member This part replaces 705208583. |
| 420a |
390402200 |
Pop Rivet 3/16" |
| 421 |
207523056 |
Hex. Flange Screw M12 X 30, Scotch Grip |
| 430 |
705208592 |
Manta Green, Rear Cross Member |
| 430a |
390402200 |
Pop Rivet 3/16" |
| 431 |
233221466 |
Elastic Flange Nut M12 |
| 432 |
207523056 |
Hex. Flange Screw M12 X 30, Scotch Grip |
| 440 |
715006582 |
Manta Green, LH Cage |
| 440a |
390402200 |
Pop Rivet 3/16" |
| 441 |
233121466 |
Hex Flange Nut m12 |
| 442 |
207523056 |
Hex. Flange Screw M12 X 30, Scotch Grip |
| 443 |
250000857 |
Flange Screw M12 X 60 |
| 450 |
715006584 |
Manta Green, RH Cage |
| 450a |
390402200 |
Pop Rivet 3/16" |
| 451 |
233121466 |
Hex Flange Nut m12 |
| 452 |
207523056 |
Hex. Flange Screw M12 X 30, Scotch Grip |
