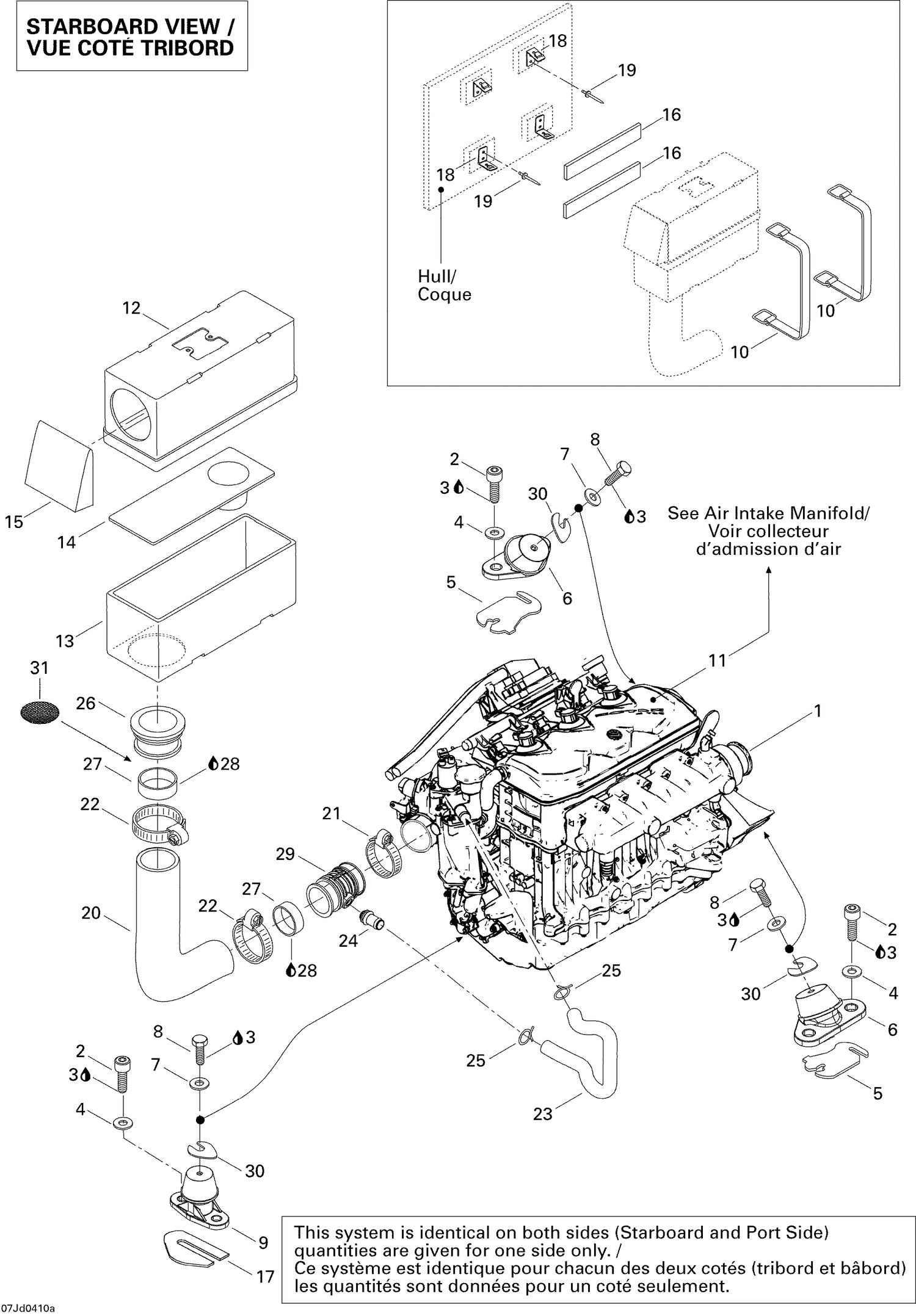

| Ref | Part Number | Description |
|---|
| 1 |
270000567 |
Rotax Engine 4 Strokes «1503» |
| 2 |
205084060 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 3 |
293800060 |
Loctite 243, 10 ml |
| 4 |
250200018 |
Cone Washer |
| 5 |
270000445 |
SHIM 0.3 MM - Call your local BRP dealership |
| 6 |
270001081 |
Engine Support Ass'y This part replaces 270000510. |
| 7 |
234082600 |
Flat Washer 8 mm, Stainless |
| 8 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 9 |
270001096 |
Engine Support Ass'y This part replaces 270000489. |
| 10 |
293850097 |
Retainer Strap |
| 11 |
270000677 |
COVER ASS'Y - Call your local BRP dealership This part replaces 420660172. |
| 12 |
204250260 |
Air Silencer, Upper |
| 13 |
204250261 |
Air Silencer, Lower |
| 14 |
204250269 |
Air Silencer Divider |
| 15 |
204250270 |
Air Silencer Hood |
| 16 |
204130059 |
Neoprene Strip |
| 17 |
204250049 |
SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049. |
| 18 |
204060017 |
Strap Clip 90° |
| 19 |
293150088 |
Pop Rivet 3/16" |
| 20 |
204340435 |
INTAKE HOSE - Call your local BRP dealership This part replaces 204250274. |
| 21 |
293650061 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 22 |
293650179 |
Tridon Clamp This part replaces 293650107. |
| 23 |
275500497 |
FORMED HOSE - Call your local BRP dealership |
| 24 |
273000234 |
Breather Valve This part replaces 273000195. |
| 25 |
293650115 |
Spring Clamp |
| 26 |
508000254 |
INTAKE ADAPTATOR - Call your local BRP dealership |
| 27 |
204250275 |
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership |
| 28 |
293800021 |
ADHESIVE LOCTITE 495 - Call your local BRP dealership |
| 29 |
204250276 |
Adaptor Hose, Engine |
| 30 |
270000025 |
SHIM 1.3 MM - Call your local BRP dealership |
| 0460868 |
NEEDS |
DESCRIPTION This part replaces 204250048. 0460868 |
