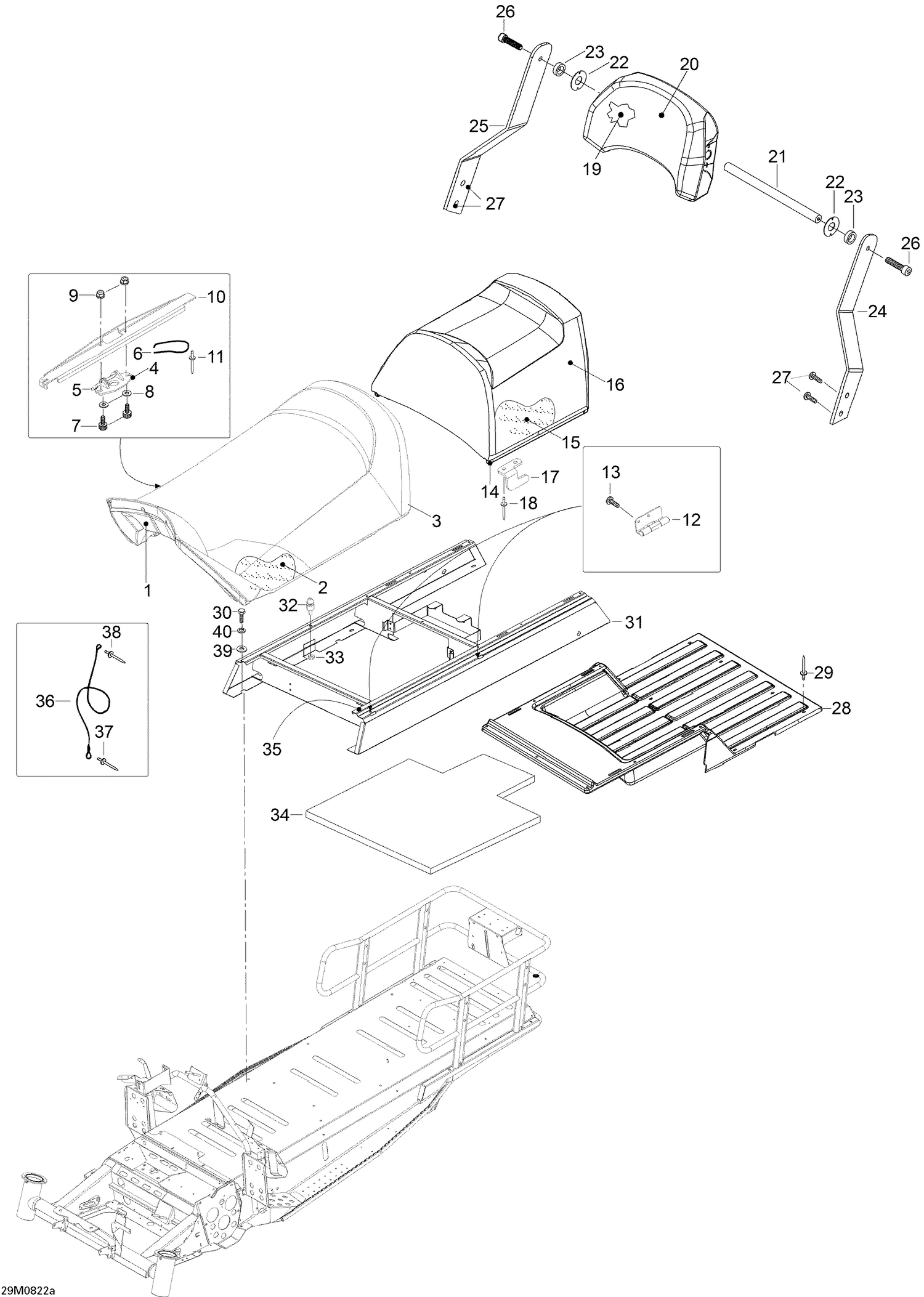

| Ref | Part Number | Description |
|---|
| 28 |
605154593 |
TUNNEL COVER - Call your local BRP dealership |
| 29 |
M36036 |
Black, Rivet |
| 30 |
207161644 |
Hex. Screw M6 X 16 |
| 31 |
605254706 |
SEAT BASE - Call your local BRP dealership |
| 32 |
605452035 |
LOCK PIN - Call your local BRP dealership |
| 33 |
232561414 |
Elastic Stop Nut M6 |
| 34 |
605352460 |
FOAM - Call your local BRP dealership |
| 35 |
M28413 |
Sealing Strip |
| 36 |
293750070 |
Seat Retainer Cable This part replaces M546777. |
| 37 |
36037 |
Black Rivet This part replaces M36037. |
| 38 |
M36489 |
Rivet |
| 39 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
