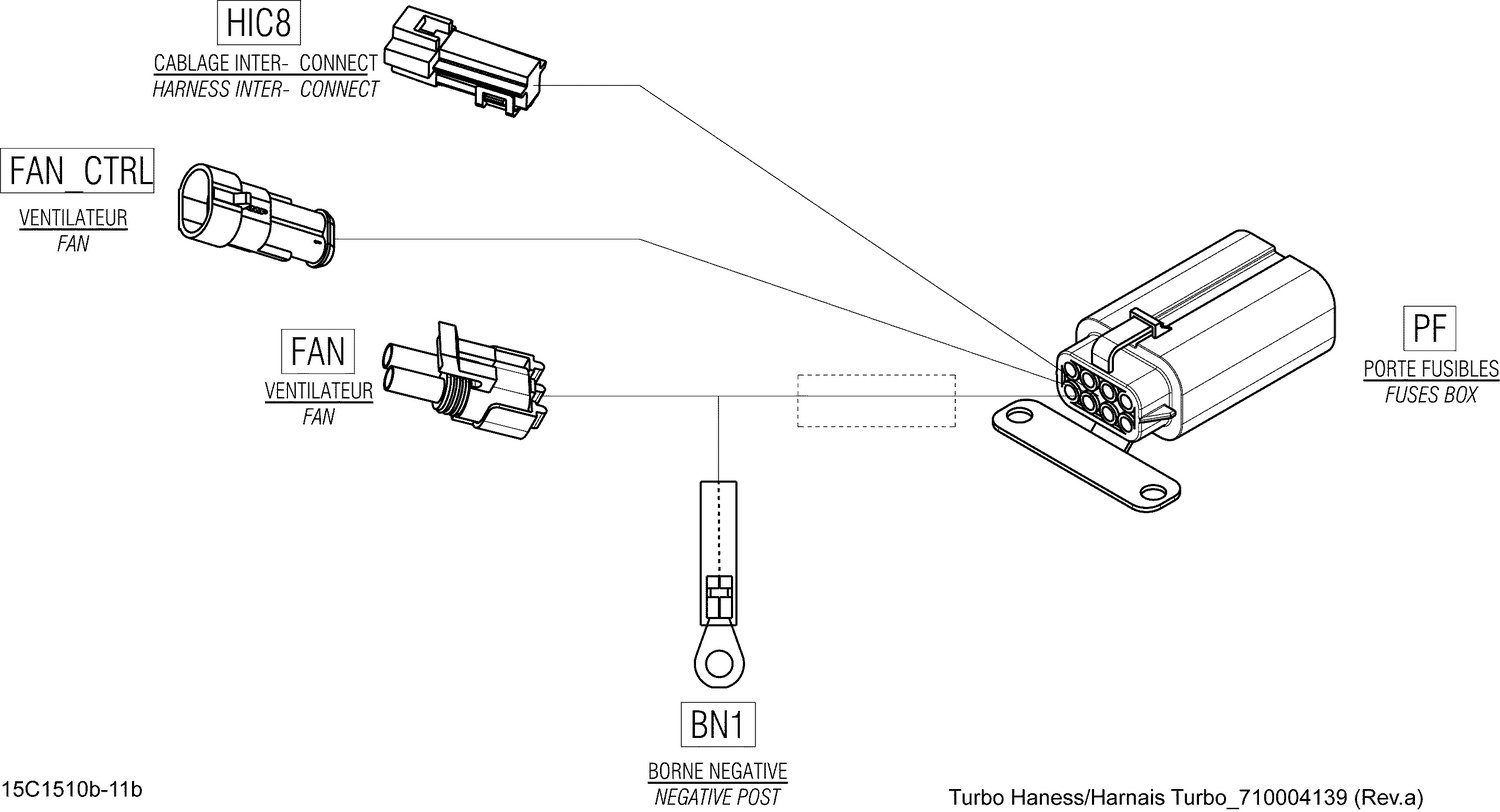

10- Electrical Harness Turbo_15C1510b
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| BN01 | 278000992 | Open Barrel |
| FAN | 278000218 | Wire Seal |
| FAN | 278000220 | Male Connector, 2 Circuits |
| FAN | 409007300 | Female Terminal |
| HIC8 | 710003174 | CONNECTOR - Call your local BRP dealership |
| HIC8 | 710003176 | CONNECTOR - Call your local BRP dealership |
| PF | 278000218 | Wire Seal |
| PF | 278001065 | Wire Seal |
| PF | 278002578 | Female Terminal |
| PF | 710000048 | Wire Seal |
| PF | 710000746 | Little Fuse, 20 Amperes |
| PF | 710000890 | Female Terminal |
| PF | 710000918 | Female Terminal |
| PF | 710004260 | BOX_FUSE - Call your local BRP dealership |
| PF | 715900824 | Relay This part replaces 710001778. |
| RTX_CTRL | 409209400 | Male Terminal Housing, 2 Circuits |
| RTX_CTRL | 515176621 | Wire Seal |
| 1 | 710004349 | WIRING HARNESS ASSY - Call your local BRP dealership This part replaces 710004139. |
