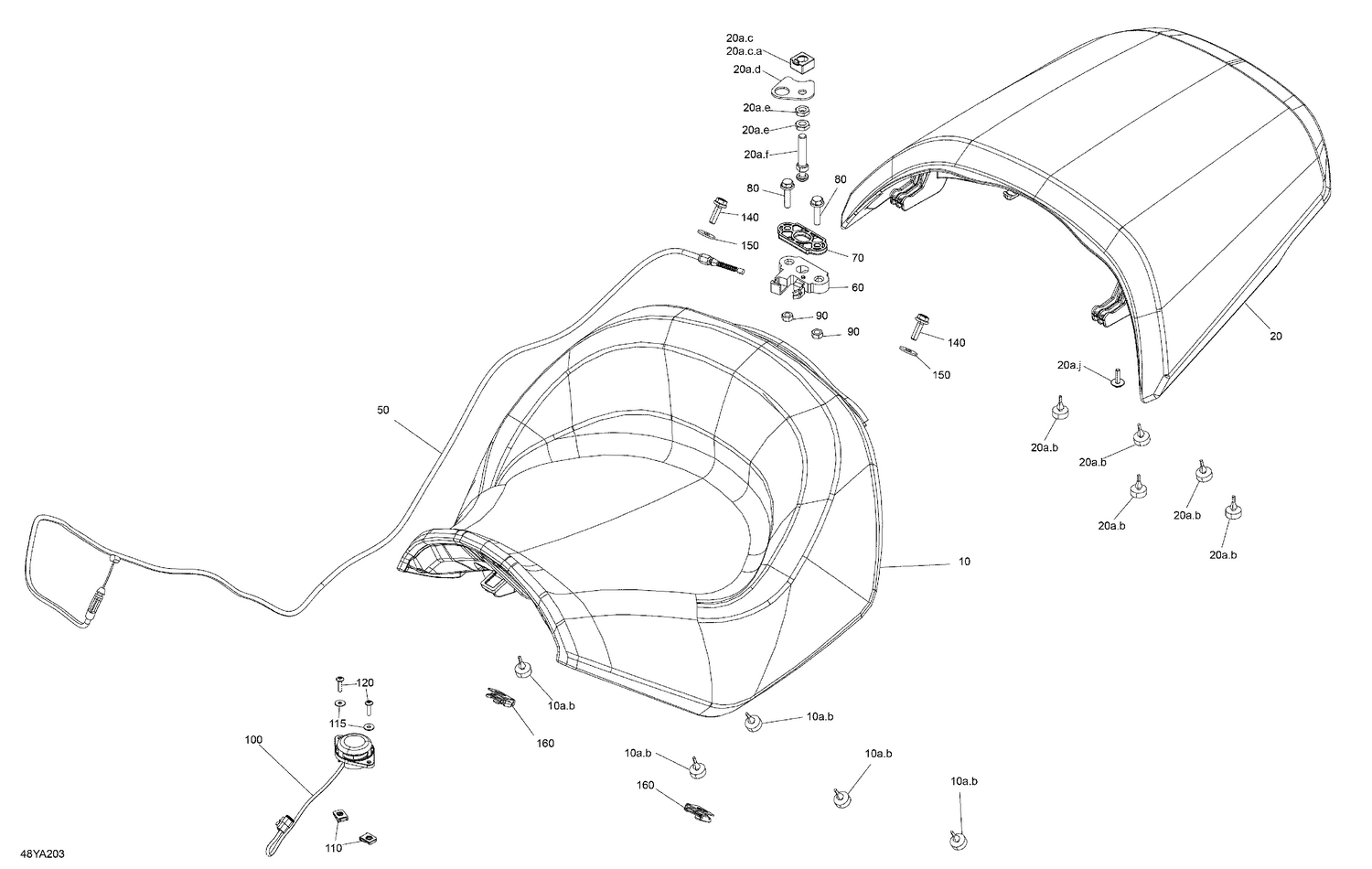

07- Body - Seat
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 708001743 | Seat Cable |
| 60 | 705007379 | Latch |
| 70 | 708001771 | Brace |
| 80 | 207562556 | Hex. Flange Screw M6 X 25, Scotch Grip |
| 90 | 232061414 | Hex. Nut M6 |
| 100 | 710008103 | Passenger Detection Switch This part replaces 710005543. |
| 115 | 234062670 | Stainless Steel Flat Washer |
| 120 | 250000807 | Torx Truss Screw M6 X 25 |
| 140 | 207662044 | Hex. Flange Screw M6 X 20 |
| 150 | 250200082 | Flat Washer |
| 160 | 250100208 | Panel Nut M6 X 1.0 |
