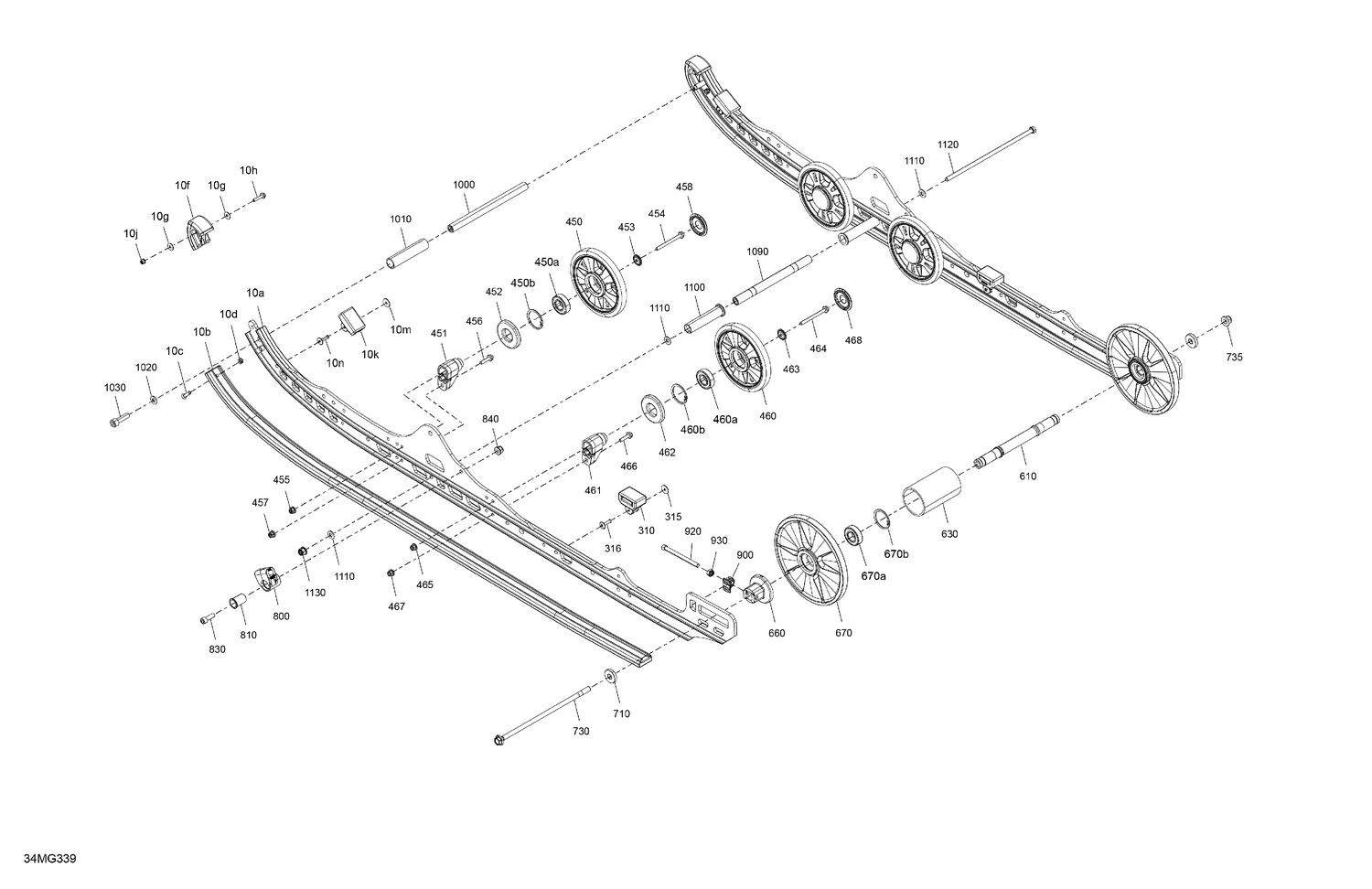

05- Suspension - Rear - Lower Section
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 503197344 | Suspension Rail 146 |
| 10b | 503191499 | Black, Slider 146 |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561414 | Elastic Stop Nut M6 |
| 10f | 503196872 | Rail Protector |
| 10g | 250200140 | Washer |
| 10h | 207652544 | Hex. Flange Screw M5 X 25 |
| 10j | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 10k | 503190576 | Rubber Stopper |
| 10m | 503191273 | Washer |
| 10n | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 310 | 503193504 | Rubber Stopper |
| 315 | 503191273 | Washer |
| 316 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 450a | 503190396 | Ball Bearing |
| 450b | 415129371 | Retaining Ring |
| 451 | 503193894 | Casted Support |
| 452 | 503190434 | Labyrinth Seal |
| 453 | 503191820 | Wheel Cup M6 |
| 454 | 250000944 | Hex. Flange Screw M6 X 70 |
| 455 | 233261466 | Hex. Flange Elastic Nut M6 |
| 456 | 250000945 | Hex. Flange Screw M6 X 25 |
| 457 | 233261466 | Hex. Flange Elastic Nut M6 |
| 458 | 503195878 | Black, Wheel Cap |
| 460a | 503190396 | Ball Bearing |
| 460b | 415129371 | Retaining Ring |
| 461 | 503193894 | Casted Support |
| 462 | 503190434 | Labyrinth Seal |
| 463 | 503191820 | Wheel Cup M6 |
| 464 | 250000944 | Hex. Flange Screw M6 X 70 |
| 465 | 233261466 | Hex. Flange Elastic Nut M6 |
| 466 | 250000945 | Hex. Flange Screw M6 X 25 |
| 467 | 233261466 | Hex. Flange Elastic Nut M6 |
| 468 | 503195878 | Black, Wheel Cap |
| 610 | 503196252 | Rear Axle |
| 630 | 503196947 | Socket |
| 660 | 503196246 | Rear Wheel Support |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 710 | 503196357 | Washer |
| 730 | 503195748 | Bolt M10 |
| 735 | 233201466 | Flange Elastic Nut M10 |
| 800 | 861805547 | Spring Support Kit |
| 810 | 503196210 | Bushing |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503194266 | Tensioner |
| 920 | 503198273 | Screw Adjustment |
| 930 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1000 | 503191260 | Axle Strap |
| 1010 | 503197291 | Spacer |
| 1020 | 503192496 | Washer |
| 1030 | 205503554 | Socket Head Screw M10 X 35 |
| 1090 | 503195954 | Pivot Axle |
| 1100 | 503195825 | Spacer |
| 1110 | 503192494 | Washer |
| 1120 | 503192440 | Bolt M8 X 248mm |
