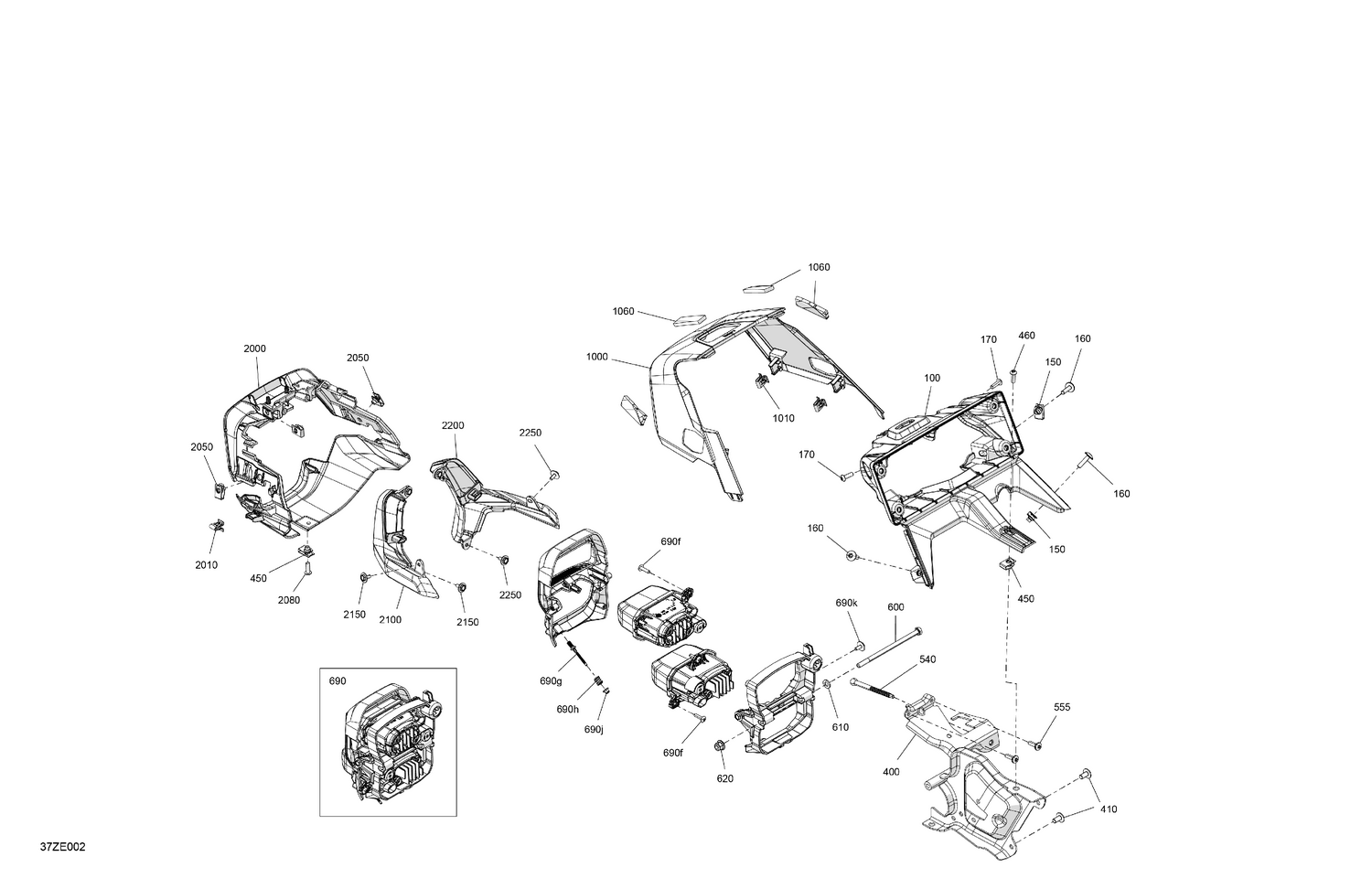

07- Body - Console
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 708400544 | Gauge Support |
| 150 | 250100209 | Spring Nut U M5 X 0.8 |
| 160 | 250000895 | Torx-Truss M/S M5X20 |
| 170 | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 400 | 708400543 | Headlight Support Ass'y |
| 410 | 250000767 | Torx Truss Screw M6 X 12 |
| 450 | 250100209 | Spring Nut U M5 X 0.8 |
| 460 | 250000895 | Torx-Truss M/S M5X20 |
| 540 | 710005837 | Ajustment Screw |
| 555 | 250000720 | Torx Screw K50 X 16 |
| 600 | 250001053 | Hex. Screw M6 X 115 Din 931 |
| 610 | 234061410 | Flat Washer 6 mm |
| 620 | 233261494 | Hex. Flange Elastic Nut M6 |
| 690f | 250000759 | Torx Truss Pt K40 X 16 |
| 690g | 517309133 | Threaded Rod |
| 690h | 517309058 | Compression Spring |
| 690j | 517309134 | Specialized Nut |
| 690k | 250000805 | Plastite Screw M4 X 10 |
| 1000 | 705017679 | Front Upper Fairing |
| 1010 | 517302785 | Edge Clip |
| 1060 | 705019315 | Acoustic Insulation |
| 2000 | 708400771 | Headlight Fairing |
| 2010 | 517302785 | Edge Clip |
| 2050 | 250100209 | Spring Nut U M5 X 0.8 |
| 2080 | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 2100 | 708400766 | LH Headlight Trim |
| 2150 | 250000889 | Screw M4 X 16 |
| 2200 | 708400853 | RH Headlight Trim |
