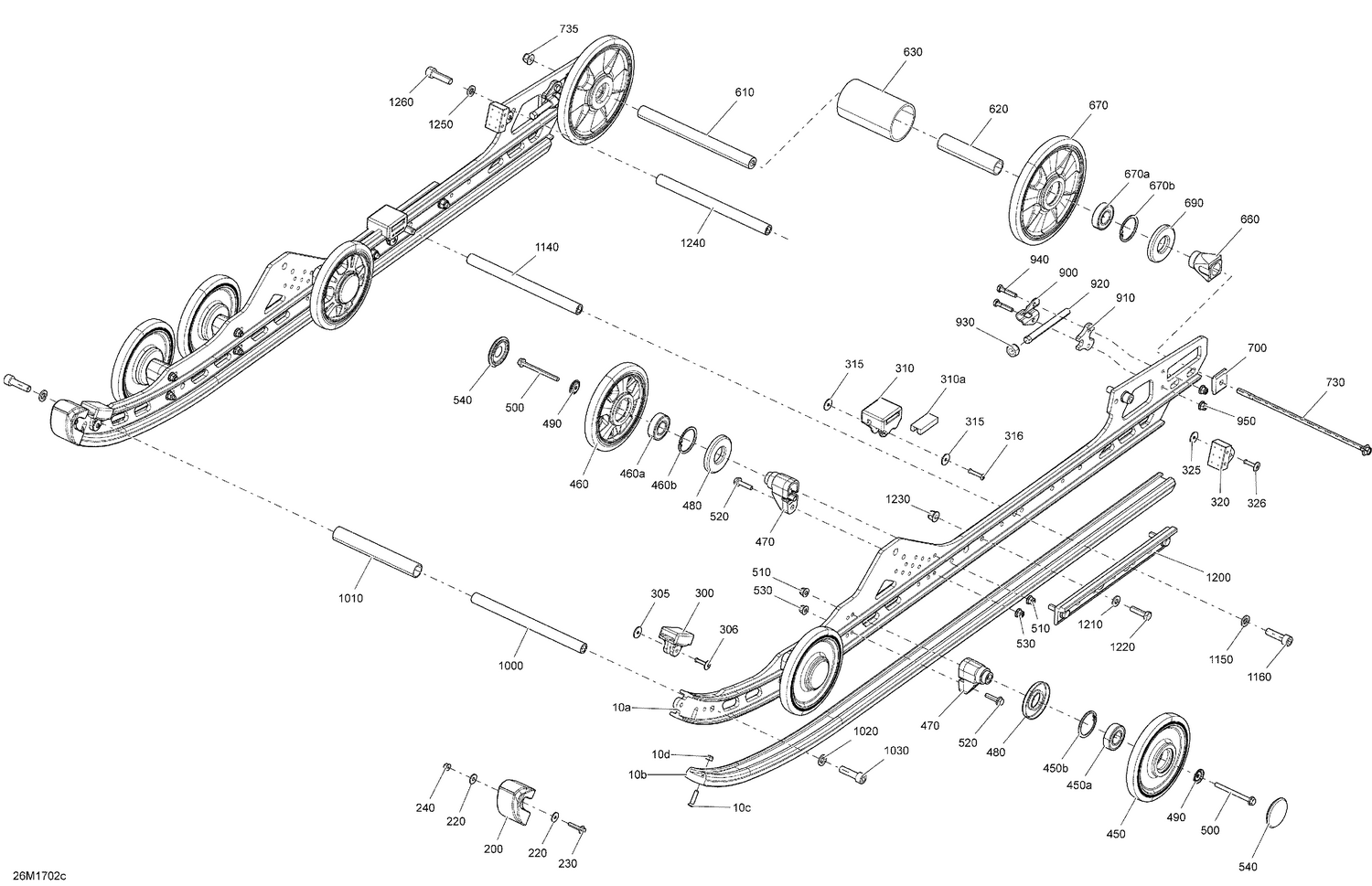

08- Rear Suspension - Model 137 - Inferior
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 503193552 | Black, Runner 137" |
| 10b | 503191306 | Black, Slider Shoe 137'' |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561414 | Elastic Stop Nut M6 |
| 200 | 503196873 | Rail Protector This part replaces 503192530. |
| 220 | 250200140 | Washer |
| 230 | 207652544 | Hex. Flange Screw M5 X 25 |
| 240 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 300 | 503190576 | Rubber Stopper |
| 305 | 503191273 | Washer |
| 306 | 293150224 | Pop Rivet 3/16 |
| 310a | 572084800 | Reinforcement Stopper |
| 315 | 503191273 | Washer |
| 316 | 293150013 | Pop Rivet 3/16" |
| 320 | 503192750 | Rubber Stopper |
| 325 | 503191273 | Washer |
| 326 | 293150224 | Pop Rivet 3/16 |
| 450a | 503190396 | Ball Bearing |
| 450b | 415129371 | Retaining Ring |
| 460a | 503190396 | Ball Bearing |
| 460b | 415129371 | Retaining Ring |
| 470 | 503193894 | Casted Support |
| 480 | 503190434 | Labyrinth Seal |
| 490 | 503191820 | Wheel Cup M6 |
| 500 | 207667056 | Hex. Flange Screw M6 X 70 |
| 510 | 233261466 | Hex. Flange Elastic Nut M6 |
| 520 | 207662556 | Hex. Flange Screw M6 X 25 |
| 530 | 233261466 | Hex. Flange Elastic Nut M6 |
| 540 | 503192771 | Black, Wheel Cap |
| 610 | 503194200 | Rear Axle |
| 620 | 503191263 | Rear Spacer |
| 630 | 503193097 | Bushing |
| 660 | 503190428 | Rear Wheel Spacer |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 690 | 503190434 | Labyrinth Seal |
| 700 | 503194412 | Axle Slider |
| 730 | 503194265 | Bolt |
| 735 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503192583 | Tensioner |
| 910 | 503193250 | Spacer |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207063054 | Hex. Cap Screw M6 X 30 |
| 950 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1000 | 503191260 | Axle Strap |
| 1010 | 503196943 | Spacer This part replaces 503192678. |
| 1020 | 503192496 | Washer |
| 1030 | 205503554 | Socket Head Screw M10 X 35 |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 1200 | 503193726 | Black Reinforcement Runner |
| 1210 | 503192494 | Washer |
| 1220 | 207183054 | Hex. Cap Screw M8 X 30 |
| 1230 | 233281466 | Elastic Flange Nut M8 |
| 1240 | 503191260 | Axle Strap |
| 1250 | 503192496 | Washer |
