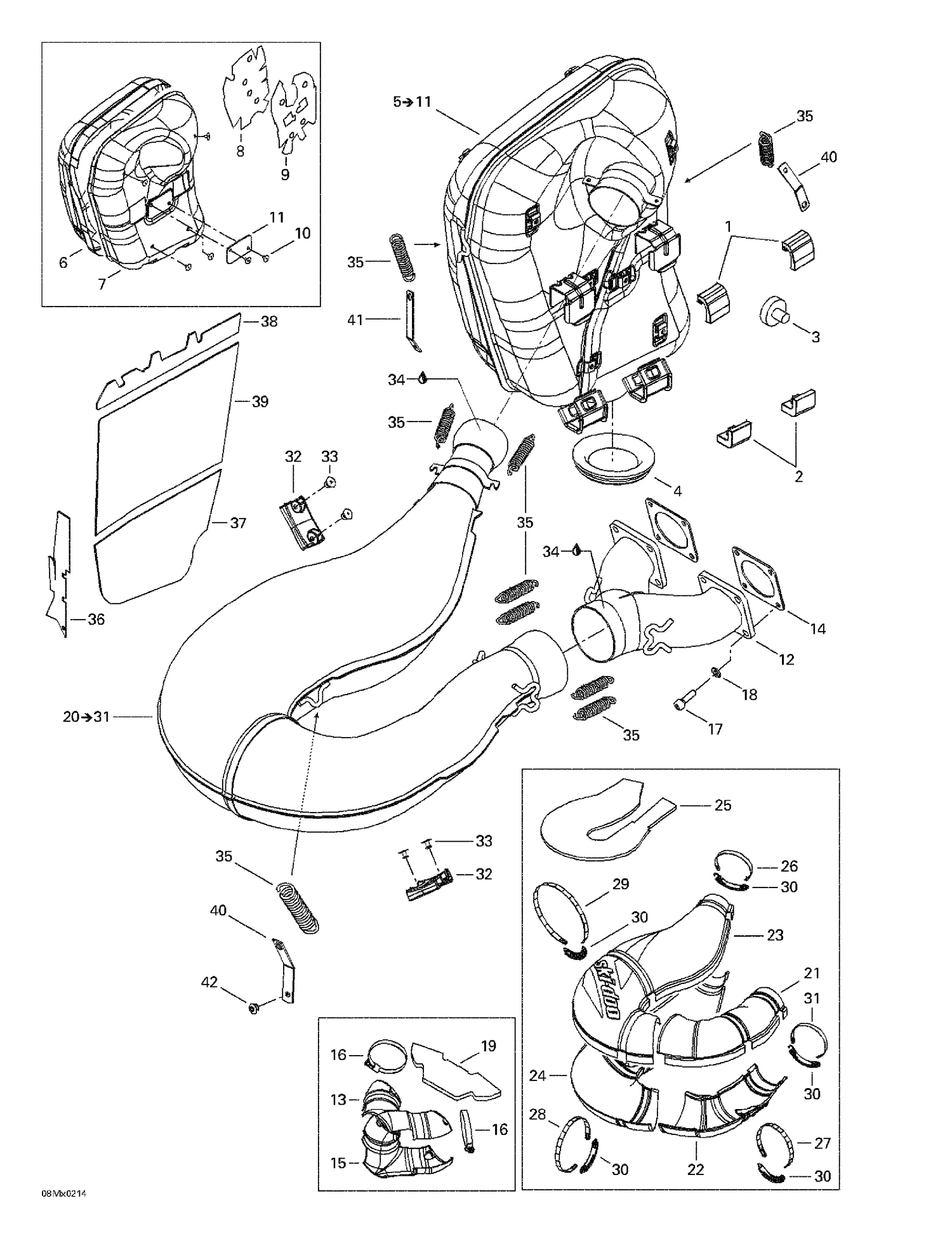

01- Exhaust System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514053372 | UPPER STOPPER - Call your local BRP dealership |
| 2 | 514053373 | Lower Stopper |
| 3 | 514053654 | Rubber Bumper This part replaces 570048700. |
| 4 | 514053394 | Exhaust Grommet |
| 6 | 514053100 | RH HEAT SHIELD - Call your local BRP dealership |
| 7 | 514053101 | LH Heat Shield |
| 8 | 514053102 | RH Insulating Wool |
| 9 | 514053103 | RH ISOLATING WOOL - Call your local BRP dealership |
| 10 | 390910000 | Pop Rivet 3/16” |
| 11 | 514053429 | Reinforcement |
| 12 | 420973712 | Exhaust Manifold |
| 13 | 514053282 | Upper Enveloppe |
| 14 | 420931850 | Gasket |
| 15 | 514053283 | Lower Enveloppe |
| 16 | 293650079 | Norma Clamp |
| 17 | 205062044 | Socket Head Screw M6 X 20 |
| 18 | 234161471 | Lock Washer M6, Black |
| 19 | 514053284 | Insulating Wool |
| 21 | 514053111 | Upper Front Enveloppe |
| 22 | 514053112 | Lower Front Enveloppe |
| 23 | 514053403 | Upper Rear Half Enveloppe |
| 24 | 514053404 | Lower Rear Half Enveloppe |
| 25 | 514053113 | Insulating Wool |
| 26 | 514053437 | RETAINING STRAP - Call your local BRP dealership |
| 27 | 514053500 | RETAINING STRAP - Call your local BRP dealership |
| 28 | 514053534 | RETAINING STRAP - Call your local BRP dealership |
| 29 | 514053535 | RETAINING STRAP - Call your local BRP dealership |
| 30 | 414851600 | Spring |
| 31 | 514053536 | Retaining Strap |
| 32 | 514053352 | BUMPER - Call your local BRP dealership |
| 33 | 390406500 | Pop Rivet 3/16" |
| 34 | 293800090 | Sealant, Loctite, 80 ml |
| 35 | 415107100 | Spring |
| 36 | 514053114 | Reflection Sheet |
| 37 | 514053115 | Reflection Sheet |
| 38 | 514053519 | Reflection Sheet |
| 39 | 514053520 | Reflection Sheet |
| 40 | 514049700 | SPRING BRACKET - Call your local BRP dealership |
| 41 | 514053393 | Spring Bracket |
