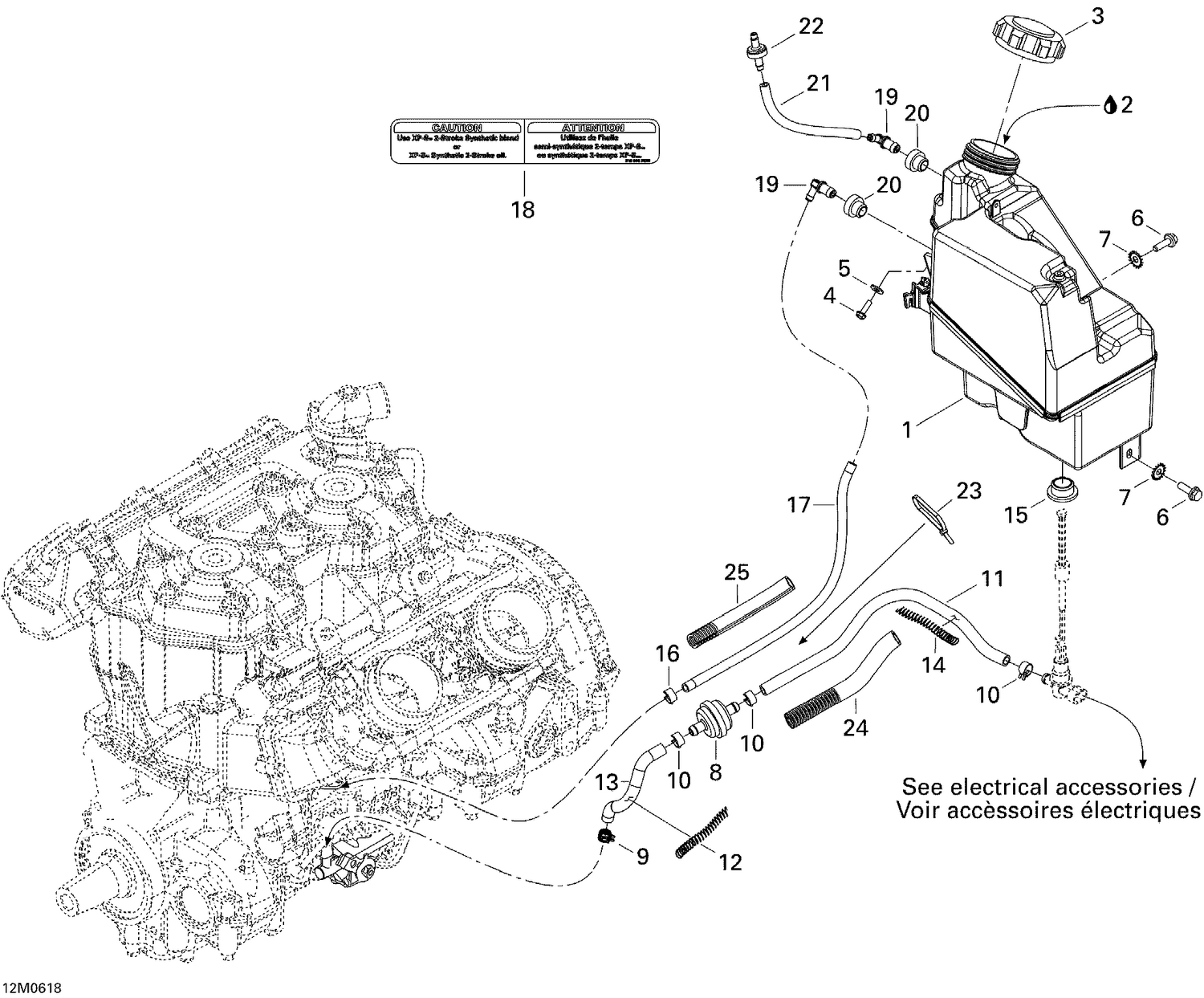

02- Oil System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000070 | INJECTION OIL TANK - Call your local BRP dealership |
| 2 | 293600072 | SEMI-SYNTHETIC OIL, 3 X 4 LITERS - Call your local BRP dealership |
| 2 | 293600073 | SEMI-SYNTHETIC OIL, 205 LITERS - Call your local BRP dealership |
| 2 | 293600100 | OIL 2T 12X1BLEND - Call your local BRP dealership This part replaces 293600071. |
| 3 | 519000033 | CAP - Call your local BRP dealership |
| 4 | 210251650 | Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 5 | 224061121 | Flat Washer |
| 6 | 207662044 | Hex. Flange Screw M6 X 20 |
| 7 | 250200041 | Lock Washer Serrated M6 |
| 8 | 414536500 | Filter |
| 9 | 414420700 | Spring Clamp |
| 10 | 414415200 | Spring Clamp |
| 11 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 12 | 414940300 | SPRING_COMPRESSION - Call your local BRP dealership |
| 13 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 14 | 519000065 | SPRING - Call your local BRP dealership |
| 15 | 570023000 | Insulating Ring |
| 16 | 414554800 | Spring Clamp |
| 17 | 219704410 | Polyurethane Hose 10000Mm Long |
| 18 | 516002325 | Warning Decal, Oil |
| 19 | 414580700 | Male Connector |
| 20 | 513032908 | Grommet |
| 21 | 219704410 | Polyurethane Hose 10000Mm Long |
| 22 | 275500398 | Check Valve |
| 23 | 293750002 | Tie Wrap 142 mm |
| 24 | 219704407 | Tubing 10 MM 1000MM Long |
