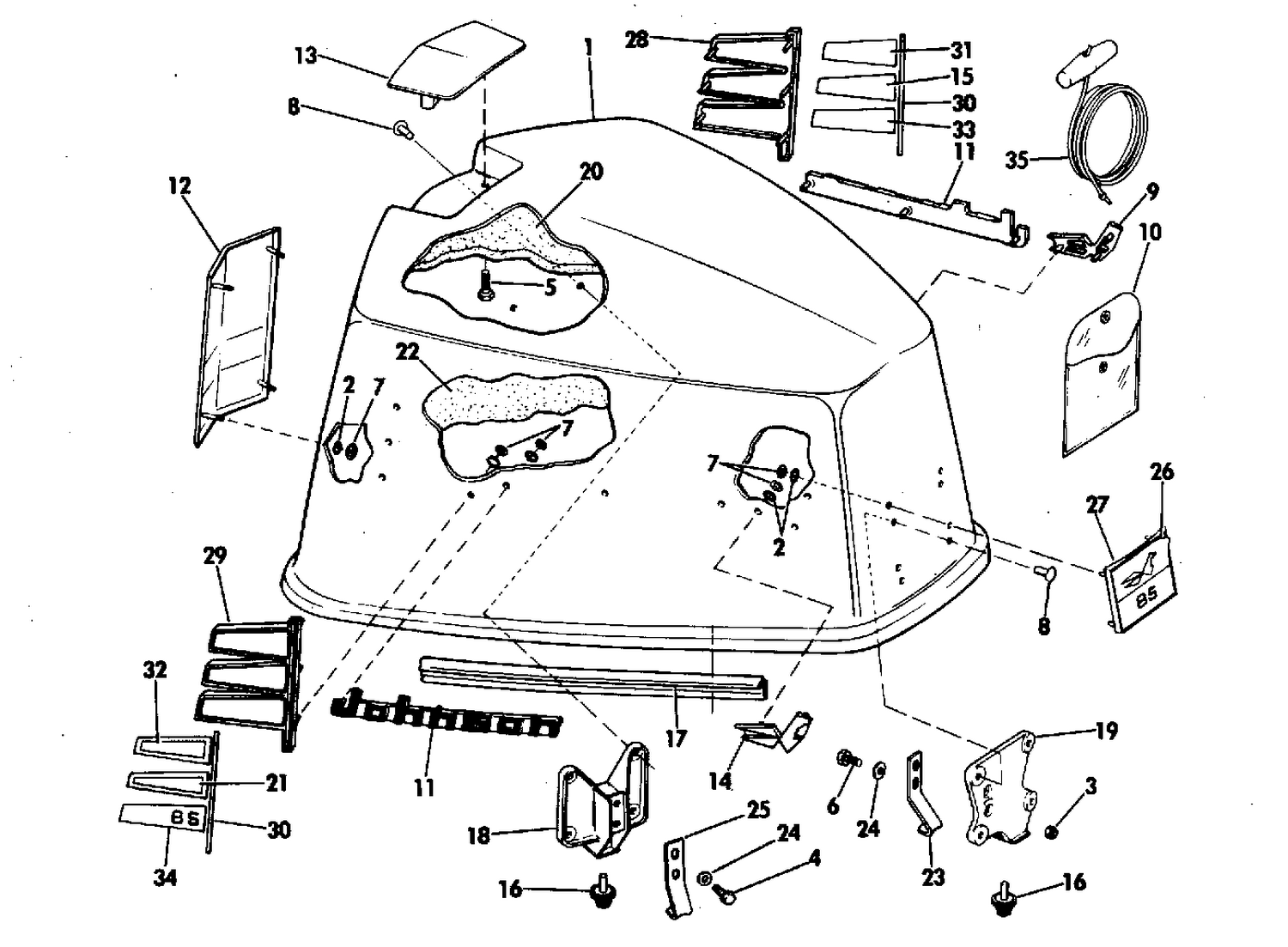

| Ref | Part Number | Description |
|---|
| 1 |
0384319 |
MOTOR COVER ASSEMBLY, Complete |
| 2 |
0314303 |
O RING |
| 3 |
0306397 |
NUT |
| 4 |
0315382 |
SCREW, Hook |
| 5 |
0312299 |
VIS, serre-câble |
| 6 |
0315383 |
SCREW, Front hook |
| 8 |
0314135 |
RIVER, Locating bracket |
| 9 |
0315588 |
APPLIQUE, Seahorse ,port |
| 10 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 11 |
0314771 |
APPLIQUE, "johnson" |
| 12 |
0315147 |
APPLIQUE, Rear |
| 13 |
0315151 |
APPLIQUE, Rear |
| 14 |
0315589 |
APPLIQUE, Motor cover port |
| 15 |
0315593 |
APPLIQUE, Motor cover starboard |
| 17 |
0315168 |
SEAL, Motor cover |
| 18 |
0315190 |
LOCATING BRACKER, Rear |
| 19 |
0315193 |
LOCATING BRACKER, Front |
| 20 |
0315205 |
SOUND BALNKET, Top |
| 21 |
0315594 |
APPLIQUE, Motor cover stbd |
| 22 |
0315206 |
SOUND BLANKDT, Side |
| 23 |
0323175 |
HOOK , Motor Cover, Front This part replaces 0315199. |
| 24 |
0306407 |
LOCCKWASHER,Cover latch |
| 26 |
0315692 |
PLATE, Applique front |
| 27 |
0315691 |
APPLIQUE, Motor cover front |
| 28 |
0315693 |
APPLIQUE, Pennant, port |
| 29 |
0315694 |
APPLIQUE, Pennant, stbd. |
| 30 |
0315695 |
PLATE, Flagstaff |
| 31 |
0315696 |
PLATE, Upper applique port |
| 32 |
0315697 |
PLATE, Upper applique stbd. |
| 33 |
0315698 |
PLATE, Lower applique port |
| 34 |
0315699 |
PLATE, Lower applique stbd. |
| 35 |
0378347 |
CORDE DE LANCEUR |
| 0384491 |
0384491 |
DECAL SET |
