Home / BRP / STERN DRIVE / 1997 / 7.40 / 744FPLKD 1997 / EXHAUST & COOLING

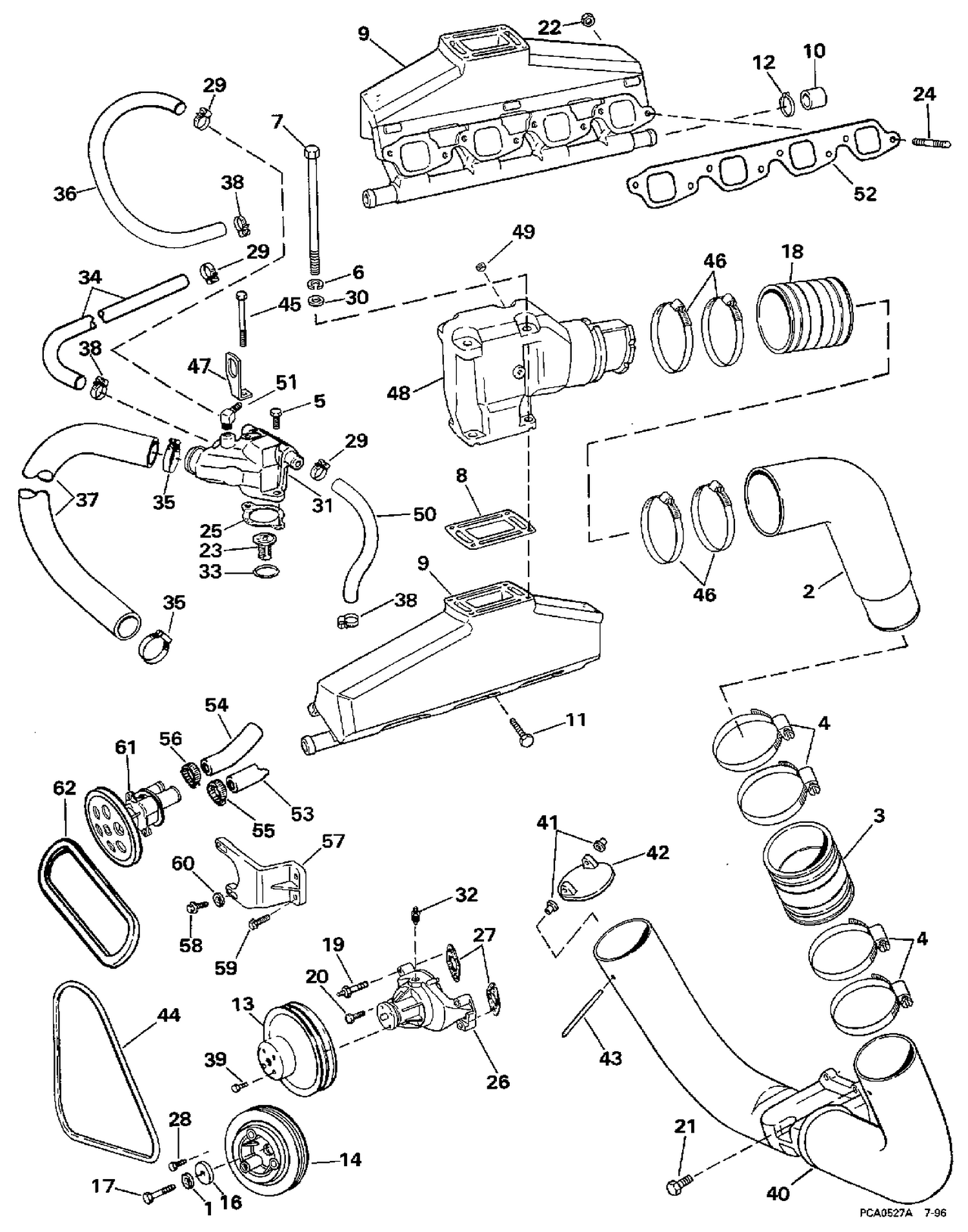

EXHAUST & COOLING

EXHAUST & COOLING

Parts (60)

RefPart NumberDescription
1 3853353 LOCK WASHER, Pulley
2 3853237 EXHAUST PIPE, Upper
3 3852742 HOSE, Exhaust pipe
4 3852604 CLAMP, Exhaust
5 3853401 SCREW, Housing to manifold
6 0120177 L'WASHER, Alternator to brkt This part replaces 3852002.
7 3852830 HUB,Water pump pulley
8 3850496 GASKET, Elbow
9 3861459 Manifold This part replaces 3852362.
10 3852476 CAP, Manifold
11 3853326 SCREW, Bracket to engine
12 0912627 CLAMP This part replaces 3852602.
13 0384104 PULLEY ASSEMBLY This part replaces 3852220.
14 3851998 PULLEY, Crankshaft
16 3853354 WASHER, Torsional damper
17 3853502 BOLT, Torsional damper
18 3852696 HOSE, High rise to elbow
19 3852507 STUD, Bracket to water pump
20 3854653 BOLT, Intake manifold, short
21 3855472 SCREW, Pipe to gimbal This part replaces 3852898.
22 3853404 NUT, Exhaust manifold
23 3853983 THERMOSTAT
24 3852140 STUD, Manifold to engine
25 0312797 GASKET, Therm. hsg. to adapter This part replaces 3852111.
26 3855991 WATER PUMP ASSY.
27 3853361 GASKET, Pump to block
28 3855720 SCREW, Crankshaft pulley
29 0912627 CLAMP This part replaces 3852602.
31 3854383 THERMOSTAT HOUSING
31 3855018 THERMOSTAT HOUSING
32 3852029 SENDER, Water temperature
34 3853243 HOSE, Cooler to thermostat
36 3852597 HOSE, Thermostat to manifold
37 3856007 HOSE, Water pump to therm.
38 0912627 CLAMP This part replaces 3852602.
39 3853390 SCREW, Pulley to pump
40 3858873 Kit This part replaces 3855281.
41 3855517 BUSHING, Pin
42 3853864 EXHAUST SEAL ASSY
43 0913663 PIN EXHAUST FLAP This part replaces 3852753.
44 3852607 BELT, Alternator
44 3854643 BELT, Alternator
45 3853430 SCREW, Manifold, 5 1/4 in. This part replaces 3853391.
46 3853860 CLAMP, Exhaust hose, upper
47 3852649 BRACKET, Center lift
48 3856244 ELBOW, Exhaust
49 3850740 PLUG, 1/4 NPTF
50 3852597 HOSE, Thermostat to manifold
50 3854854 HOSE, Thermostat to manifold
51 3853598 ELBOW, Hose to reservoir
52 3852472 GASKET, Manifold to engine
53 3855705 HOSE, Gimbal to water pump
54 3855684 HOSE, Water pump to reservoir
54 3855706 HOSE, Water pump to cooler
55 3850422 CLAMP, Water hose inlet
56 0912627 CLAMP This part replaces 3852602.
57 3855594 BRACKET, Water pump
58 3853155 SCREW, Manifold to engine
59 3855940 SCREW, Bracket to engine
61 3857794 WATER PUMP This part replaces 3851982.
