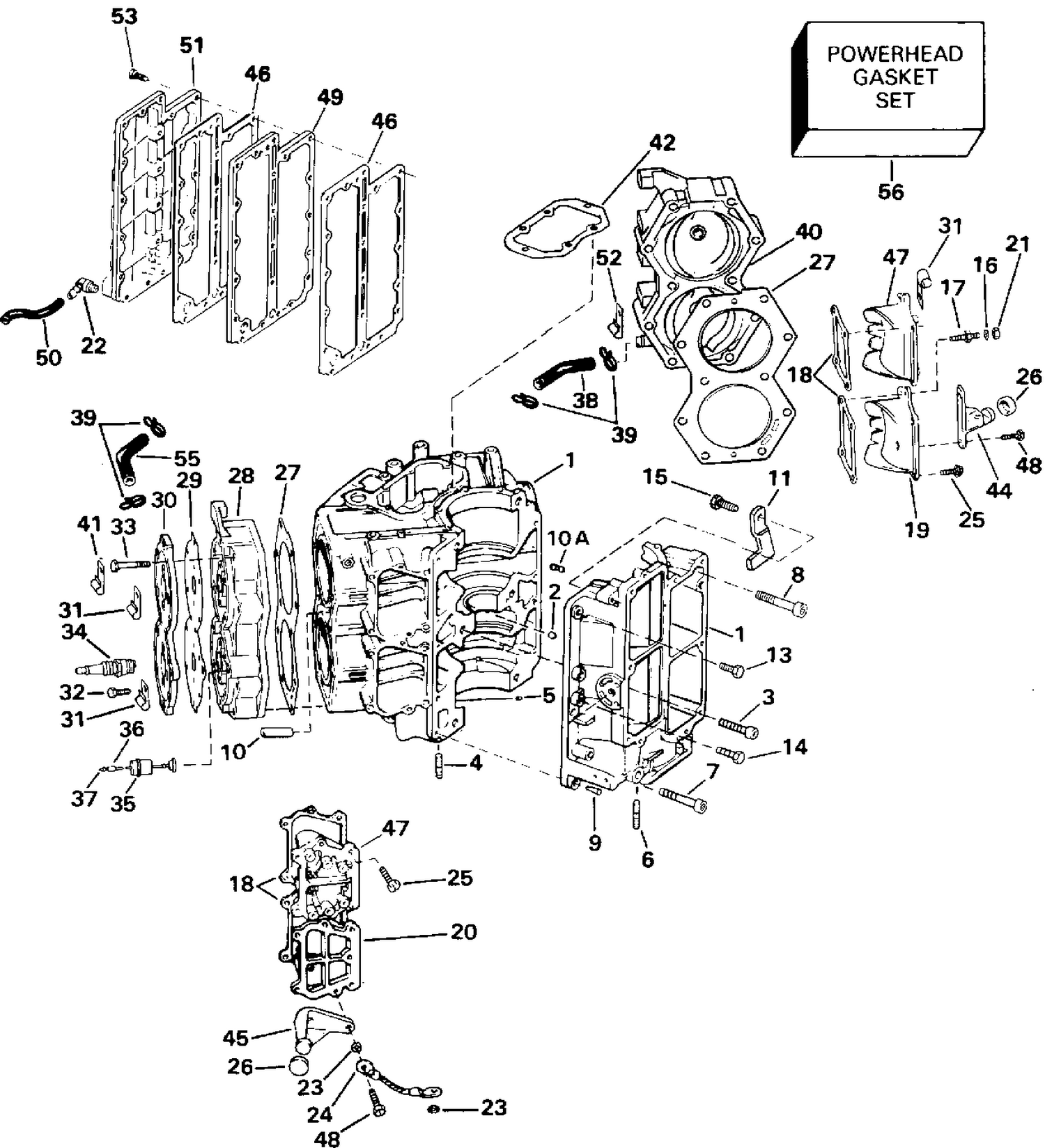

| Ref | Part Number | Description |
|---|
| 1 |
0431659 |
CYL & C'CASE ASSY., 88/90 models |
| 3 |
0319592 |
SCERW,Cyl.to c'case,center |
| 4 |
0321640 |
STUD |
| 5 |
0310507 |
PLUG |
| 7 |
0318907 |
SCREW, C'case to cyl top |
| 8 |
0318907 |
SCREW, C'case to cyl top |
| 10 |
0322411 |
DEFLECTOR, Water pass |
| 10A |
0394884 |
CHECK VALVE |
| 11 |
0332154 |
PLATE, Idle stop |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 18 |
0307133 |
GASKET |
| 19 |
0323045 |
COVER, By-pass |
| 20 |
0310532 |
COVER BY-PASS |
| 24 |
0584472 |
ENSEMBLE FILS, masse |
| 25 |
0306049 |
SCREW |
| 26 |
0313581 |
BUMBER, Mount screw |
| 27 |
0318358 |
GASKET, Cyl. head |
| 28 |
0326505 |
CYLINDER HEAD, Stbd |
| 29 |
0318335 |
COVER, Cylinder head |
| 30 |
0318333 |
COVER, Cylinder head |
| 31 |
0330151 |
CLAMP, Harness to oil tank boss |
| 32 |
0300646 |
VIS, ancrage |
| 33 |
0307267 |
SCREW |
| 34 |
0432424 |
SPARK PLUG , QL16V |
| 34 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 35 |
0584592 |
SWITCH, Temperature |
| 38 |
0340976 |
HOSE, Cylinder head, port This part replaces 0321723. |
| 39 |
0339282 |
CLAMP, Cylinder head hose |
| 40 |
0326504 |
CYLINDER HEAD, Port |
| 41 |
0330151 |
CLAMP, Harness to oil tank boss |
| 42 |
0322858 |
GASKET |
| 44 |
0319217 |
PIN,Clevis to shift lock |
| 45 |
0319218 |
SUPPORT BNRACE,Stbd. |
| 46 |
0317914 |
GASKET, Exh. cover |
| 47 |
0392754 |
COVER, By-pass |
| 49 |
0322689 |
COVER, Exh. inner |
| 50 |
0327721 |
HOSE, Elbow to tee |
| 51 |
0329503 |
COVER, Exh. outer |
| 53 |
0302288 |
BOLT |
| 55 |
0340975 |
HOSE, Cylinder head, stbd. This part replaces 0321724. |
