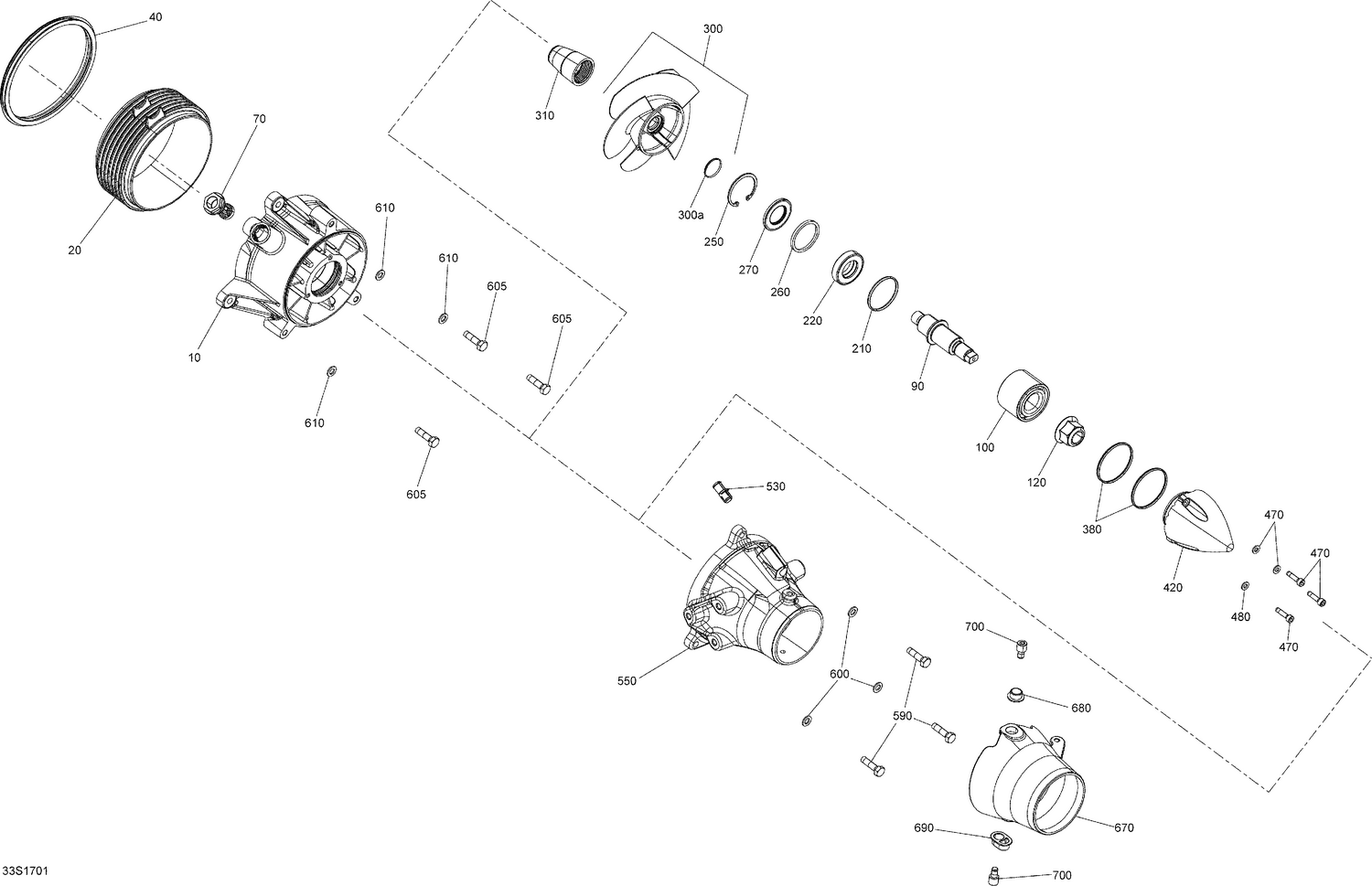

05- Pump - All Models
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 267000856 | Impeller Housing |
| 20 | 267000925 | Wear Ring |
| 40 | 293200134 | Neoprene Seal |
| 70 | 267000282 | Plug |
| 90 | 267000581 | Impeller Shaft |
| 100 | 267000583 | Conical Bearing |
| 120 | 250100104 | Elastic Flange Nut M20 |
| 210 | 293300090 | O-Ring |
| 220 | 271002071 | Seal This part replaces 293200086. |
| 250 | 293370038 | Circlip |
| 260 | 271001393 | Spacer |
| 270 | 293200089 | Oil Seal |
| 300a | 293300114 | O-Ring |
| 310 | 267000829 | Boot Impeller |
| 380 | 293300096 | O-Ring |
| 420 | 267000769 | Impeller Cover |
| 470 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 480 | 234061600 | Stainless Flat Washer M6 |
| 530 | 267000782 | Siphon Tube |
| 550 | 267000909 | Venturi |
| 590 | 250000526 | Hex. Screw M8 X 30, Scotch Grip |
| 600 | 234080600 | Flat Washer M8, Stainless |
| 605 | 250000526 | Hex. Screw M8 X 30, Scotch Grip |
| 610 | 234080600 | Flat Washer M8, Stainless |
