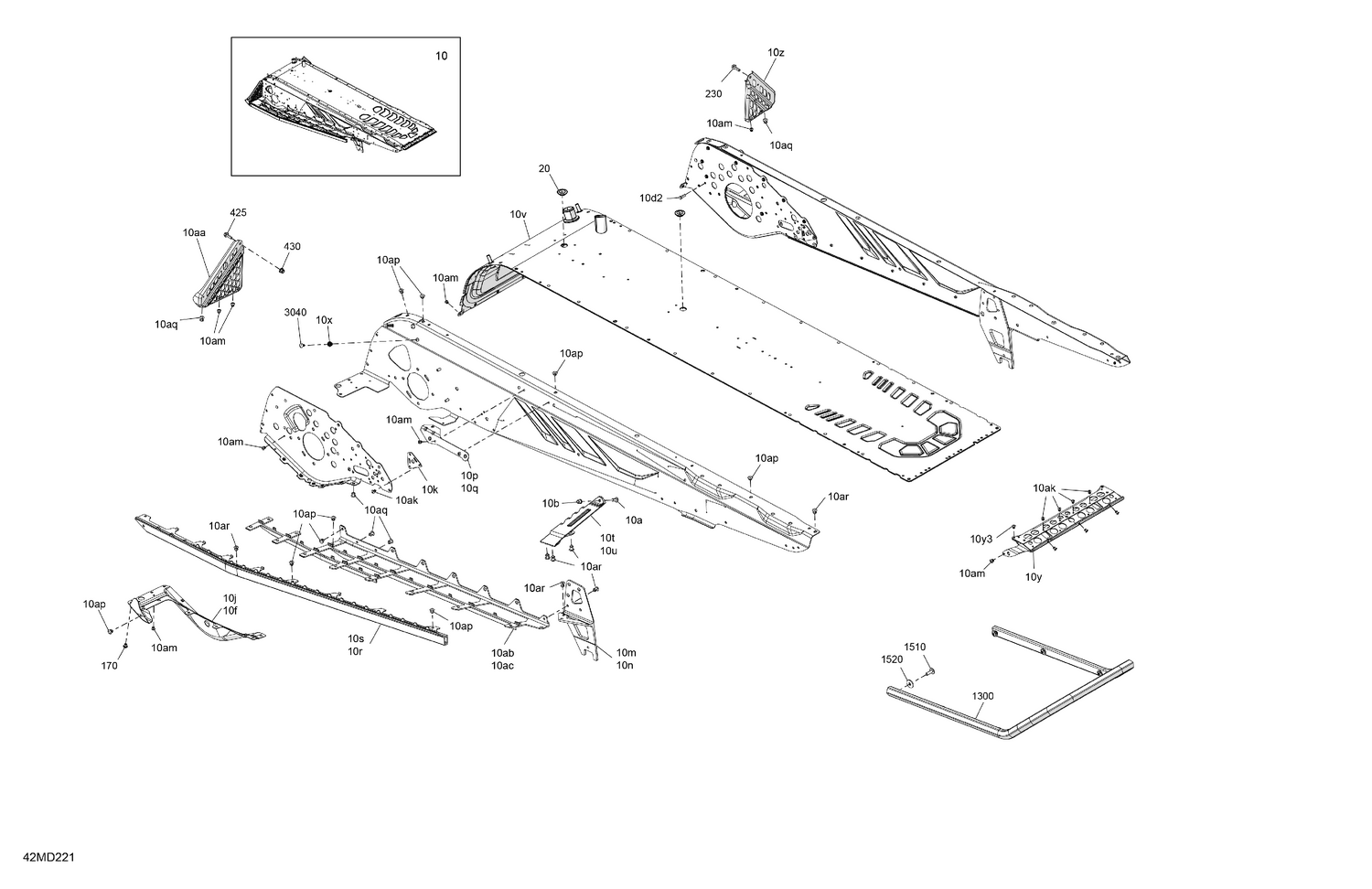

06- Frame - System - Rear Section
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 293150148 | Rivet Magna-Grip 6,4 X 50,8 |
| 10ak | 390909100 | Avex Rivet |
| 10am | 390909200 | Avex Rivet |
| 10ap | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10aq | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10ar | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 10b | 293150149 | Collar Huck Magna-Grip 6.4 |
| 10d2 | 250300027 | Clinch Stud M6 X 20 |
| 10k | 518333257 | Front Arm Reinforcement |
| 10v1a1 | XXX | Not Available As Spare Parts |
| 10x | 605636003 | Clinch Nut M6 Hexsert |
| 10y3 | 293150203 | Rivet Avibulb 3/16 |
| 20 | 293730052 | Black, Plug |
| 170 | 293450267 | Insert M5 - 0.8 |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1300 | 518331947 | Rear Short Bumper 146 |
| 3040a | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
