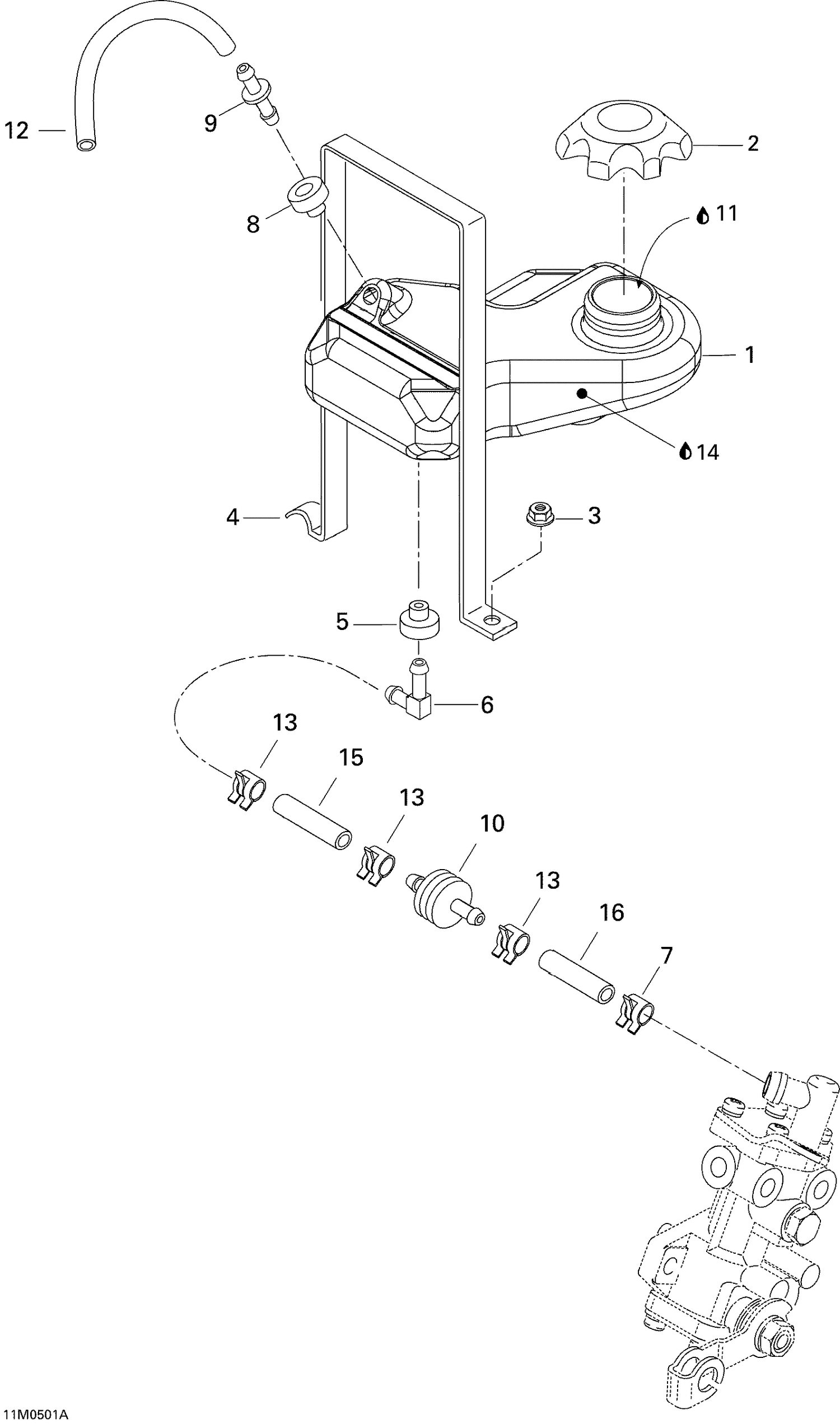

| Ref | Part Number | Description |
|---|
| 1 |
519000046 |
Oil Tank |
| 2 |
513033025 |
Fuel Tank Cap This part replaces 572039600. |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 4 |
517263400 |
Retainer Strip |
| 5 |
709200285 |
Grommet This part replaces 570135100. |
| 6 |
519000055 |
MALE CONNECTOR - Call your local BRP dealership |
| 7 |
513033029 |
Universal Spring Clamp |
| 8 |
570027700 |
GROMMET - Call your local BRP dealership |
| 9 |
275500398 |
Check Valve |
| 10 |
414536500 |
Filter |
| 11 |
779130 |
OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047. |
| 12 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 13 |
414655700 |
Spring Clamp |
| 14 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 15 |
219704422 |
HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership |
