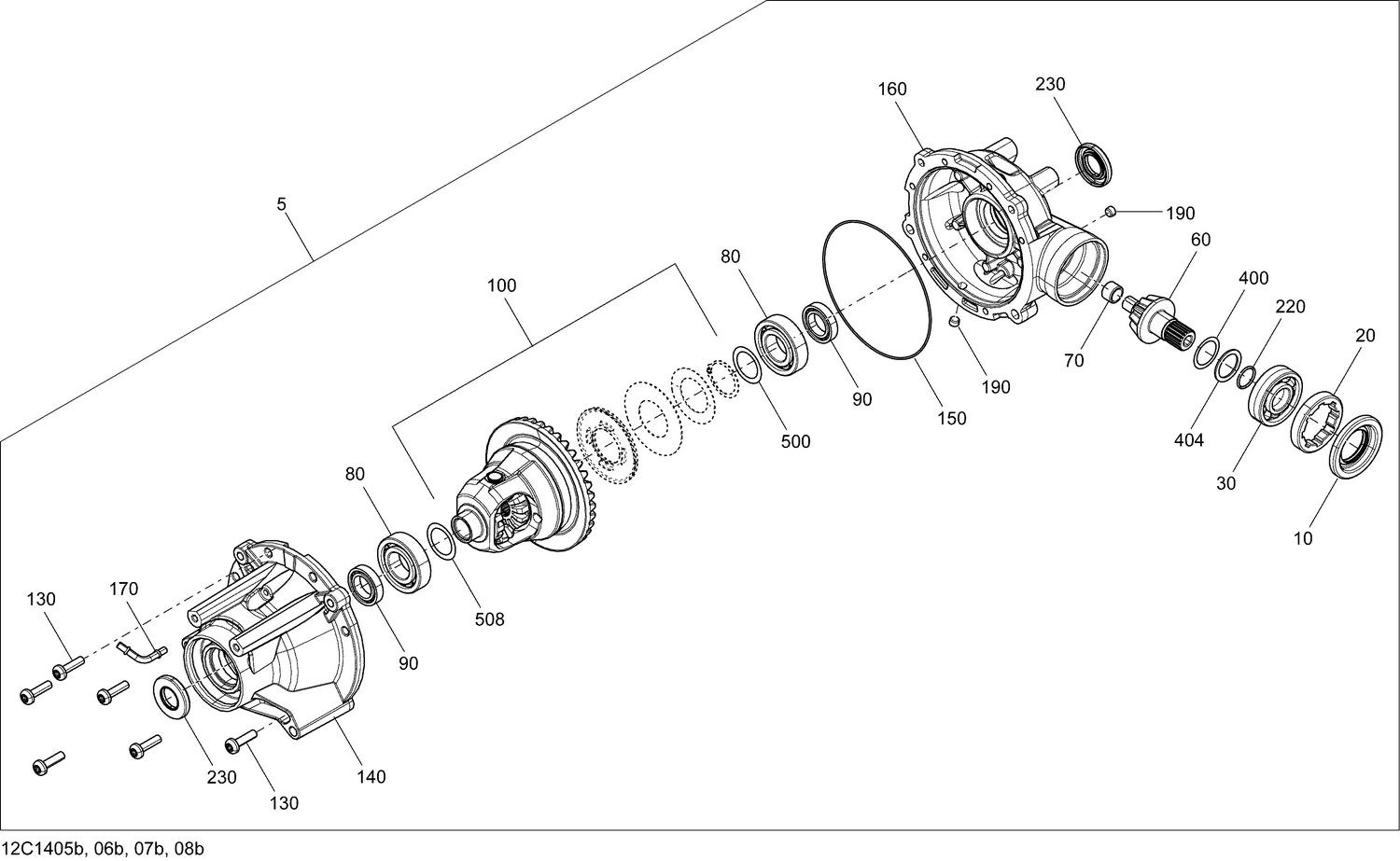

07- Drive System, Front (Differential)
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705401481 | Oil Seal |
| 20 | 705401603 | Nut This part replaces 705400661. |
| 30 | 705500260 | Ball Bearing |
| 60 | 705501588 | Engrenage 10 Dents - Appelez votre concessionnaire BRP local |
| 70 | 705500261 | Needle Bearing |
| 80 | 705401606 | Ball Bearing This part replaces 705500259. |
| 90 | 293350044 | Ball Bearing |
| 130 | 705401601 | Screw This part replaces 705500892. |
| 140 | 705400762 | FRONT COVER - Call your local BRP dealership |
| 150 | 705500265 | Seal |
| 160 | 705401136 | FRONT COVER - Call your local BRP dealership |
| 170 | 705500893 | VENT VALVE - Call your local BRP dealership |
| 190 | 705500894 | Drain Plug |
| 220 | 705500267 | O-Ring |
| 230 | 705401618 | Gasket This part replaces 705401486. |
| 400 | 705502061 | Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 404 | 705501162 | Pinion Gear Shim |
| 500 | 705401604 | Shim This part replaces 703500288. |
