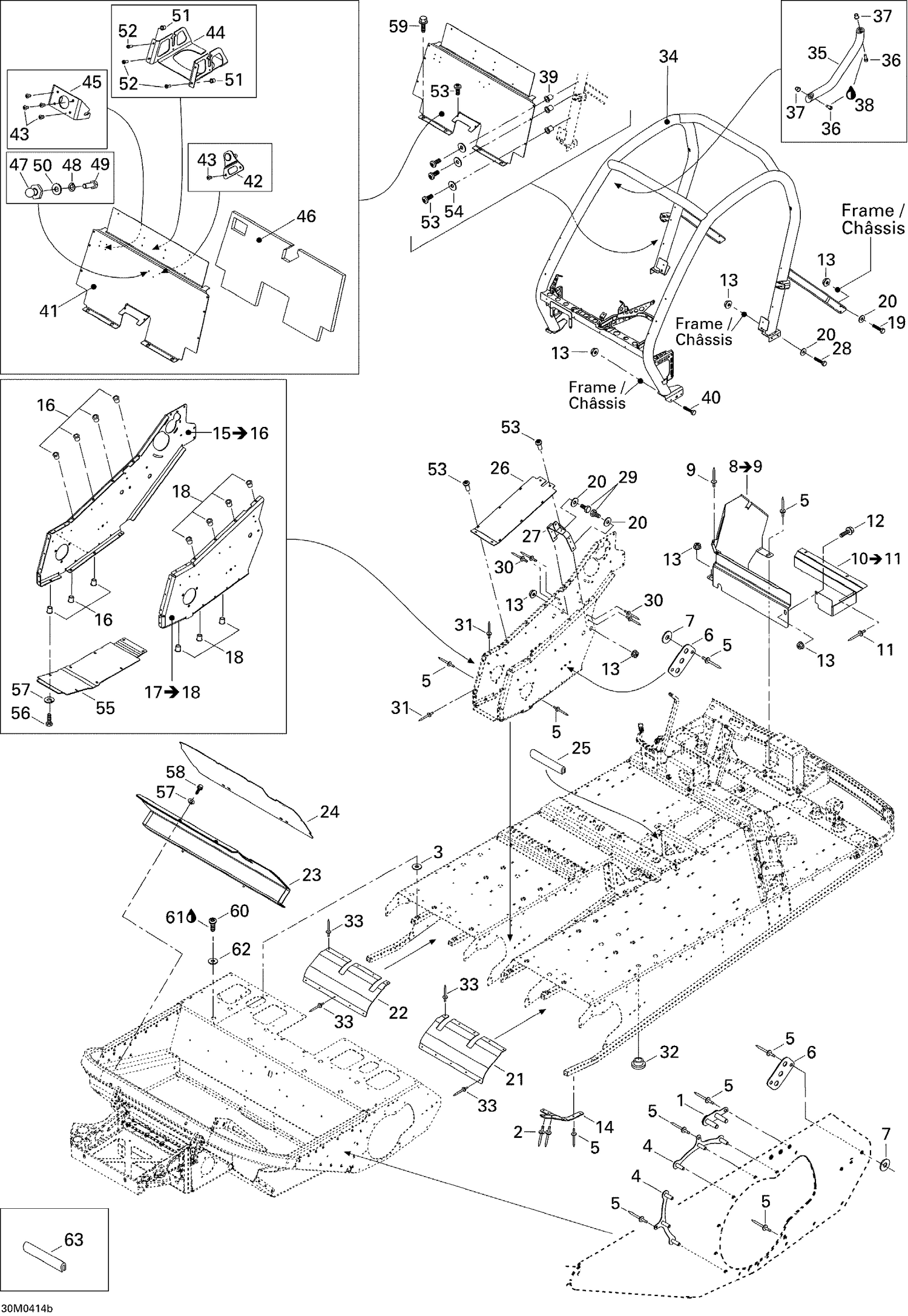

09- Frame - Accessories
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518323837 | Support |
| 2 | 390402300 | Pop Rivet 3/16" |
| 3 | 503189273 | Washer |
| 4 | 518323673 | Spacer |
| 5 | 390402200 | Pop Rivet 3/16" |
| 6 | 518201321 | REINFORCEMENT PLATE - Call your local BRP dealership |
| 7 | 391301600 | Washer |
| 9 | 390402400 | Pop Rivet 3/16" |
| 11 | 390402400 | Pop Rivet 3/16" |
| 12 | 207682044 | Hex. Flange Screw M8 X 20 |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 518323783 | Junction Plate RH |
| 16 | 293450275 | Insert This part replaces 415107300. |
| 18 | 293450275 | Insert This part replaces 415107300. |
| 19 | 207684544 | Hex. Flange Screw M8 X 45 |
| 20 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 21 | 518323909 | Deflector LH |
| 22 | 518323910 | Deflector RH |
| 23 | 518323941 | Footrest |
| 24 | 518324270 | Footrest Carpet |
| 25 | 517303385 | Black Trim |
| 26 | 518324128 | Belt Guard |
| 27 | 518323795 | Belt Support |
| 28 | 207682544 | Hex. Flange Screw M8 X 25 |
| 29 | 207183044 | Hex. Screw M8 X 30 |
| 30 | 293150120 | Hemlock Rivet 6.5 mm |
| 31 | 293150126 | Rivet 3/16" |
| 32 | 518323977 | Plastic Cap |
| 33 | 293150102 | Rivet 3/16" |
| 34 | 518323668 | Upper Frame |
| 35 | 518324227 | Handle |
| 36 | 205062044 | Socket Head Screw M6 X 20 |
| 37 | 293450275 | Insert This part replaces 415107300. |
| 38 | 293800060 | Loctite 243, 10 ml |
| 39 | 293450275 | Insert This part replaces 415107300. |
| 40 | 207685044 | Hex. Flange Screw M8 X 50 |
| 41 | 518324023 | Lateral Reinforcement |
| 42 | 518323685 | Welded Plate |
| 43 | 293150102 | Rivet 3/16" |
| 44 | 518323700 | Coolant Tank Support |
| 45 | 518323661 | Front Belt Guard Support |
| 46 | 518323852 | Isolating Foam |
| 47 | 517245800 | Knob |
| 48 | 234151401 | Lock Washer 5 mm |
| 49 | 207151444 | Hex. Screw M5 X 14 |
| 50 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 51 | 293450275 | Insert This part replaces 415107300. |
| 52 | 250000172 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 53 | 250000172 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 54 | 250200029 | Washer M6 |
| 55 | 518322981 | Center Junction Plate |
| 56 | 207162044 | Hex. Screw M6 X 20 |
| 57 | 234161471 | Lock Washer M6, Black |
| 58 | 207661644 | Hex. Flange Screw M6 X 16 |
| 59 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 60 | 205481046 | Socket Screw M8 X 10 |
| 61 | 293800005 | Loctite 271, 10 ml |
| 62 | 234082600 | Flat Washer 8 mm, Stainless |
| 518323784 | Junction | Plate LH 518323784 |
| 518323784 | Plaque | De Jonction GA 518323784 |
