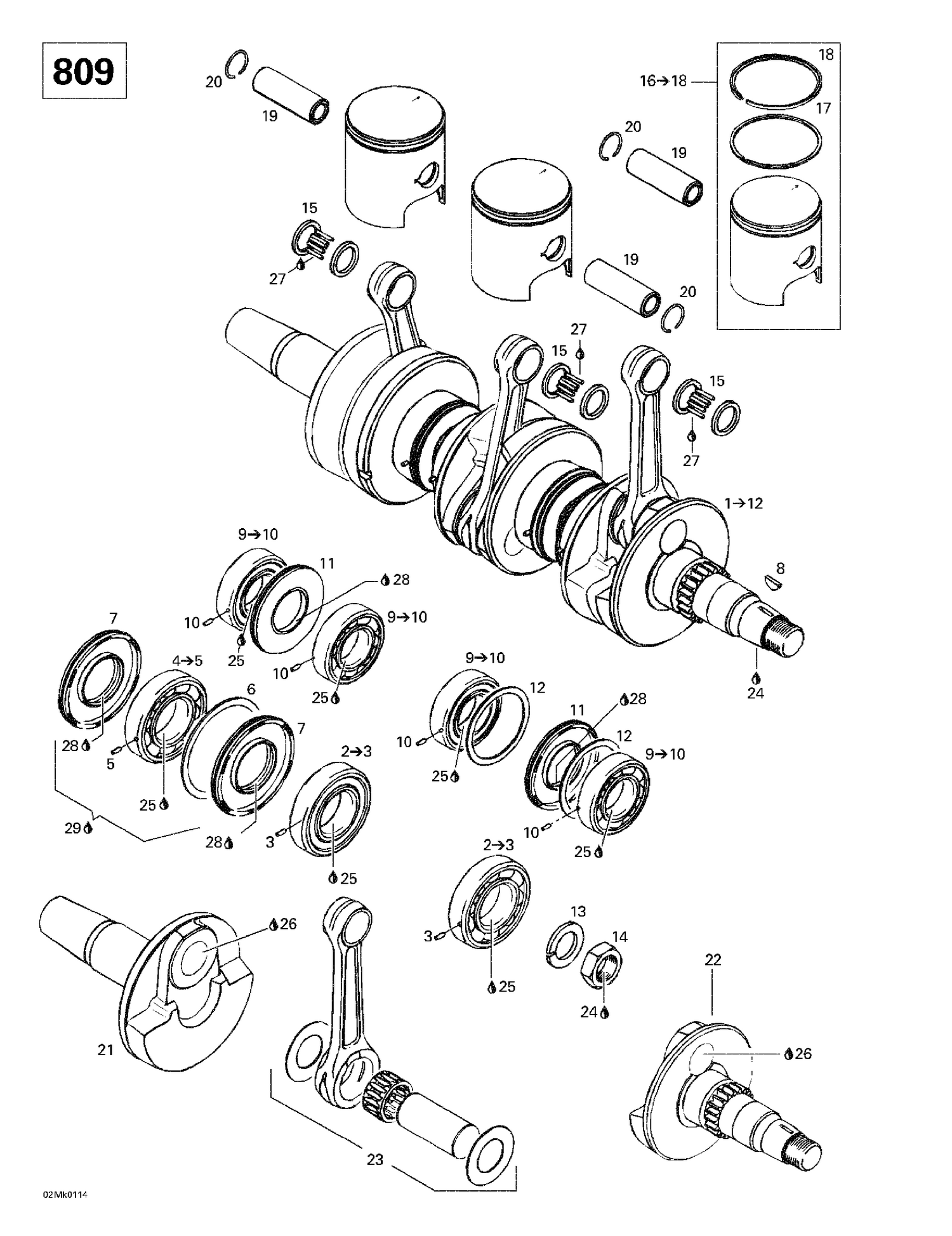

| Ref | Part Number | Description |
|---|
| 3 |
Not |
Available As Spare Part - Dowel Pin |
| 5 |
Not |
Available As Spare Part - Dowel Pin |
| 6 |
420926190 |
Washer |
| 7 |
420931280 |
Oil Seal |
| 8 |
420246015 |
Woodruff Key |
| 10 |
Not |
Available As Spare Part - Dowel Pin |
| 11 |
420831952 |
Oil Seal This part replaces 290831952. |
| 12 |
420927710 |
Retaining Disk |
| 13 |
420945759 |
Lock Washer, 22 mm |
| 14 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 15 |
420832320 |
Needle Bearing |
| 17 |
420915988 |
Rectangular Ring 70.5 mm |
| 18 |
420815049 |
Semi-Tapez Ring 70.5 mm |
| 19 |
420916186 |
GUDGEON PIN - Call your local BRP dealership |
| 20 |
420945735 |
Piston Circlip |
| 21 |
420818572 |
Crankshaft (PTO Side) |
| 22 |
420818583 |
Crankshaft (MAG Side) |
| 23 |
420887663 |
ROD REPAIR KIT (PTO SIDE) - Call your local BRP dealership |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 26 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 27 |
779119 |
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900. |
| 28 |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 420887664 |
Rod |
Repair Kit (MAG/Center Side) 420887664 |
