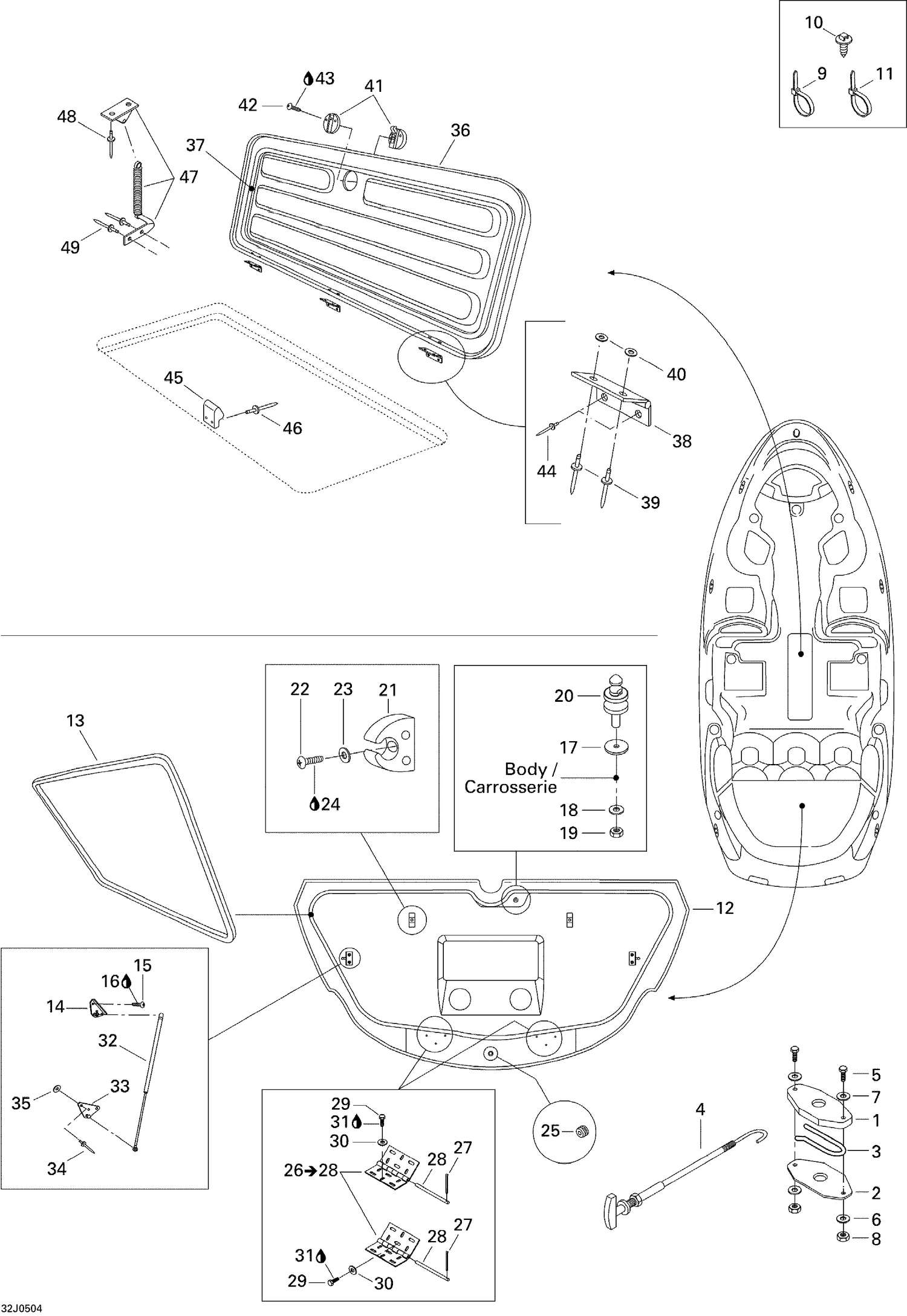

| Ref | Part Number | Description |
|---|
| 1 |
204070037 |
LATCH BASE - Call your local BRP dealership |
| 2 |
204070036 |
LATCH COVER - Call your local BRP dealership |
| 3 |
204070038 |
SPRING - Call your local BRP dealership |
| 4 |
204070049 |
LATCH CABLE - Call your local BRP dealership |
| 5 |
207163560 |
Hex. Screw M6 X 35 |
| 6 |
234062600 |
Flat Washer M6, Stainless |
| 7 |
234061600 |
Stainless Flat Washer M6 |
| 8 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 9 |
293750008 |
Tie Wrap 368 mm |
| 10 |
293730040 |
Mount Dart This part replaces 293730018. |
| 11 |
204130098 |
TIE RAP WITH DART - Call your local BRP dealership |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
204072135 |
Engine Cover |
| 13 |
219704365 |
Was 293200017 Neoprene Seal |
| 14 |
204073074 |
Shock Bracket This part replaces 204071700. |
| 15 |
207141660 |
Hex. Screw M4 X 16 |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 18 |
234002600 |
Flat Washer 10 mm, Stainless |
| 19 |
232501600 |
HEX. ELASTIC NUT M10 - Call your local BRP dealership |
| 20 |
291001420 |
Latch Stud |
| 21 |
291000642 |
Pole Support |
| 22 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 23 |
234040600 |
Flat Washer 4 mm |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
293720017 |
GROMMET - Call your local BRP dealership |
| 27 |
204070204 |
HINGE ROD - Call your local BRP dealership |
| 28 |
204070205 |
Cotter Pin M2.5 X 12 |
| 29 |
207162560 |
Hex. Screw M6 X 25 |
| 30 |
234061600 |
Stainless Flat Washer M6 |
| 31 |
293800060 |
Loctite 243, 10 ml |
| 32 |
204071964 |
GAS SHOCK - Call your local BRP dealership |
| 32 |
204072013 |
Gas Shock, Port Side |
| 33 |
204071673 |
Shock Bracket |
| 34 |
293150043 |
Pop Rivet 3/16" |
| 35 |
234051600 |
Flat Washer M5, Stainless |
| 36 |
204073144 |
CENTER COVER - Call your local BRP dealership This part replaces 204072139. |
| 37 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 38 |
204072601 |
HINGE - Call your local BRP dealership This part replaces 291000538. |
| 39 |
293150088 |
Pop Rivet 3/16" |
| 40 |
234051600 |
Flat Washer M5, Stainless |
| 41 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 42 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 43 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 44 |
293150005 |
Pop Rivet 3/16" |
| 45 |
204070050 |
LATCH BRACKET - Call your local BRP dealership |
| 46 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 47 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 48 |
204000081 |
Pop Rivet 3/16" |
