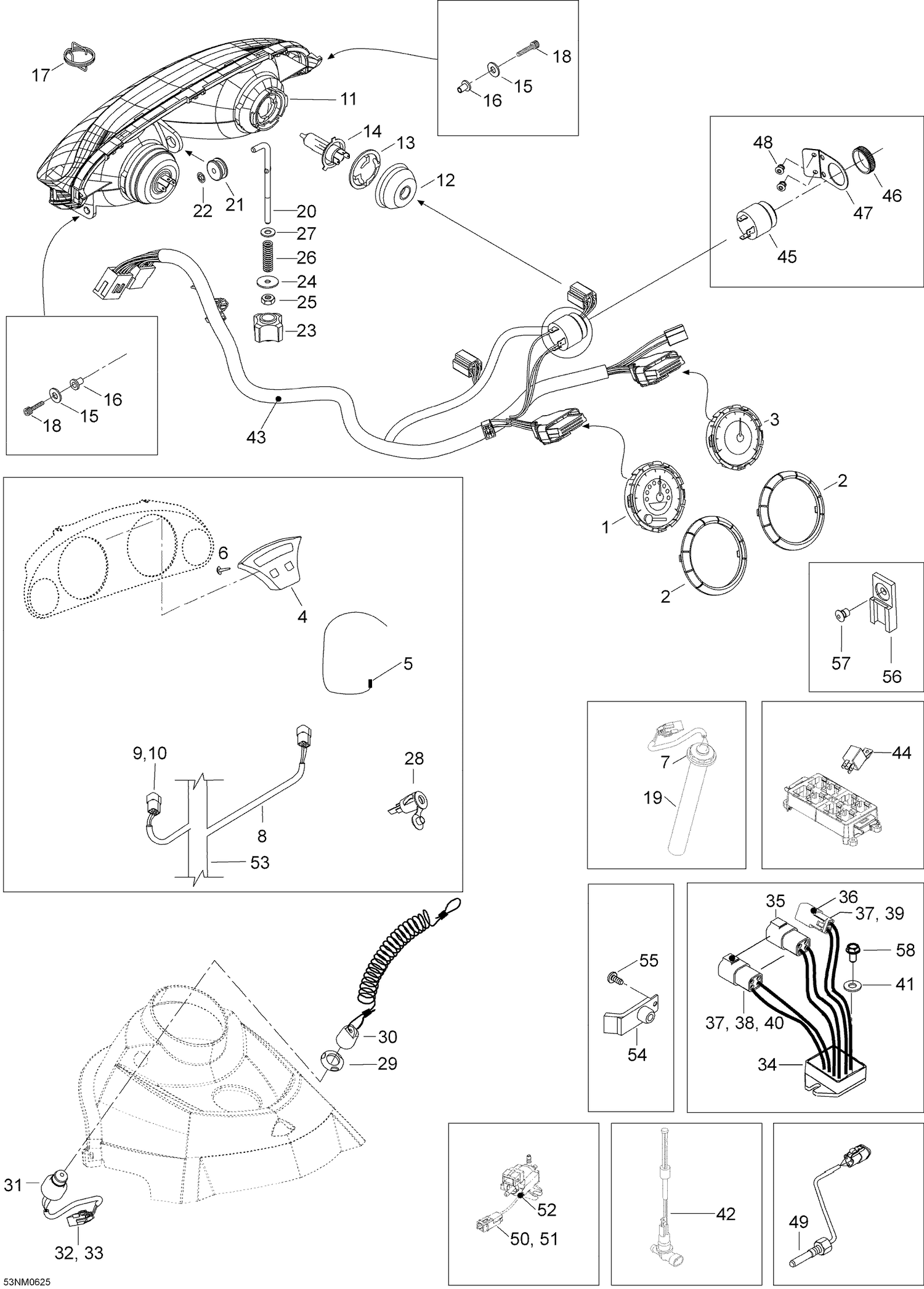

| Ref | Part Number | Description |
|---|
| 1 |
515176302 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515175651. |
| 3 |
515176303 |
TACHOMETER - Call your local BRP dealership |
| 4 |
605352671 |
Multi-Display |
| 5 |
605353700 |
Sender |
| 6 |
40887 |
Wronic-screw 4,2 x 9,5 |
| 7 |
293720058 |
Grommet |
| 8 |
605352917 |
Wiring harness, multi-display |
| 9 |
605642629 |
Connector AMP 926882-3 - Call your local BRP dealership This part replaces 42614. |
| 10 |
42268 |
Female connector housing |
| 12 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 13 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 14 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 15 |
20008 |
Washer A5,3 |
| 16 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 17 |
5447238 |
Spring |
| 18 |
40235 |
Hex. screw M5 x 35 |
| 19 |
605252545 |
Fuel censor |
| 20 |
605450023 |
ADJUSTER ROD - Call your local BRP dealership |
| 21 |
415100800 |
Grommet - Call your local BRP dealership |
| 22 |
732610072 |
Push Nut |
| 23 |
515175548 |
Handle - Call your local BRP dealership |
| 24 |
20038 |
Washer 6mm |
| 25 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 26 |
415100600 |
SPRING - Call your local BRP dealership |
| 27 |
20003 |
Washer A6,4 |
| 28 |
42026 |
Flush mounted socket |
| 29 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 30 |
515178284 |
Dess. This part replaces 515166900. |
| 32 |
515175232 |
Male terminal |
| 33 |
515175494 |
Male terminal housing |
| 35 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 36 |
278001674 |
Male terminal housing |
| 37 |
515175568 |
Female terminal |
| 38 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 39 |
278001672 |
Male lock |
| 40 |
293000052 |
Sealing Cap |
| 41 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 42 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 43 |
605153273 |
MAIN HARNESS - Call your local BRP dealership |
| 44 |
515177672 |
Relais *Relay This part replaces 410113604. |
| 45 |
515176035 |
HORN - Call your local BRP dealership |
| 46 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 47 |
5447941 |
HORN SUPPORT - Call your local BRP dealership |
| 48 |
36005 |
Rivet |
| 49 |
515176132 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 50 |
515175654 |
Connector housing |
| 51 |
515175232 |
Connector |
| 52 |
512059809 |
Support |
| 53 |
605153275 |
Harness ass'y |
| 54 |
605353700 |
Tempereture sensor |
| 55 |
293700048 |
Screw Plastofast MP 6 X 16 PZ This part replaces 40905. |
| 56 |
270000141 |
Clip This part replaces 515175917. |
| 57 |
36005 |
Rivet |
