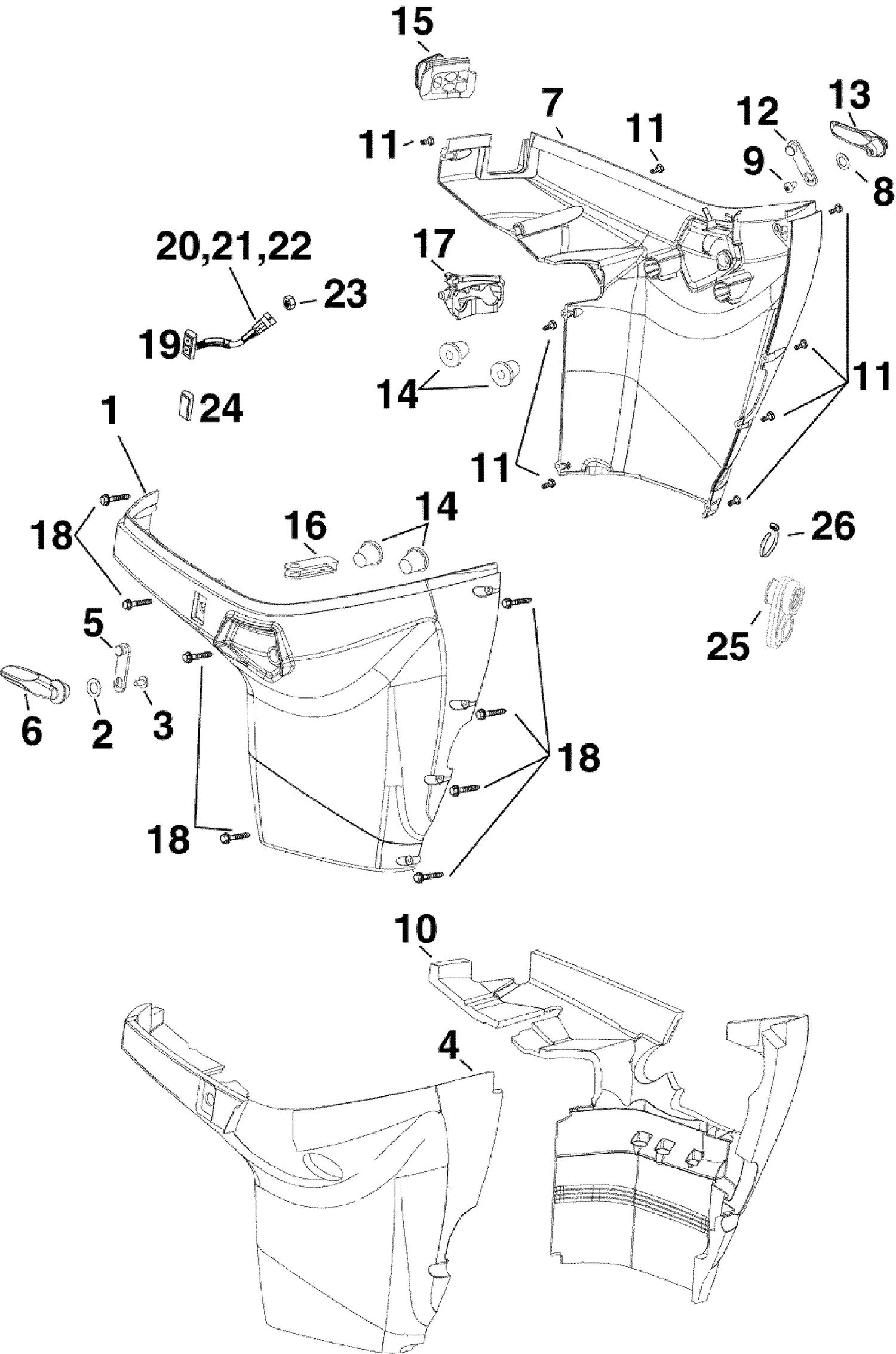

LOWER ENGINE COVER
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5008668 | LOWER COVER Assembly, Port This part replaces 5007156. |
| 1 | 5008670 | LOWER COVER Assembly, Port This part replaces 5007158. |
| 7 | 5008669 | LOWER COVER Assembly, Starboard This part replaces 5007468. |
| 7 | 5008671 | LOWER COVER Assembly, Starboard This part replaces 5007469. |
| 14 | 0332413 | MOUNT |
| 15 | 0350500 | GROMMET, Control cable |
| 16 | 0331896 | Grommet, Plug - Trim lead hole |
| 17 | 0351674 | GROMMET, Steering arm |
| 18 | 0351152 | SCREW, Port cover to starboard cover |
| 25 | 0354162 | GROMMET |
