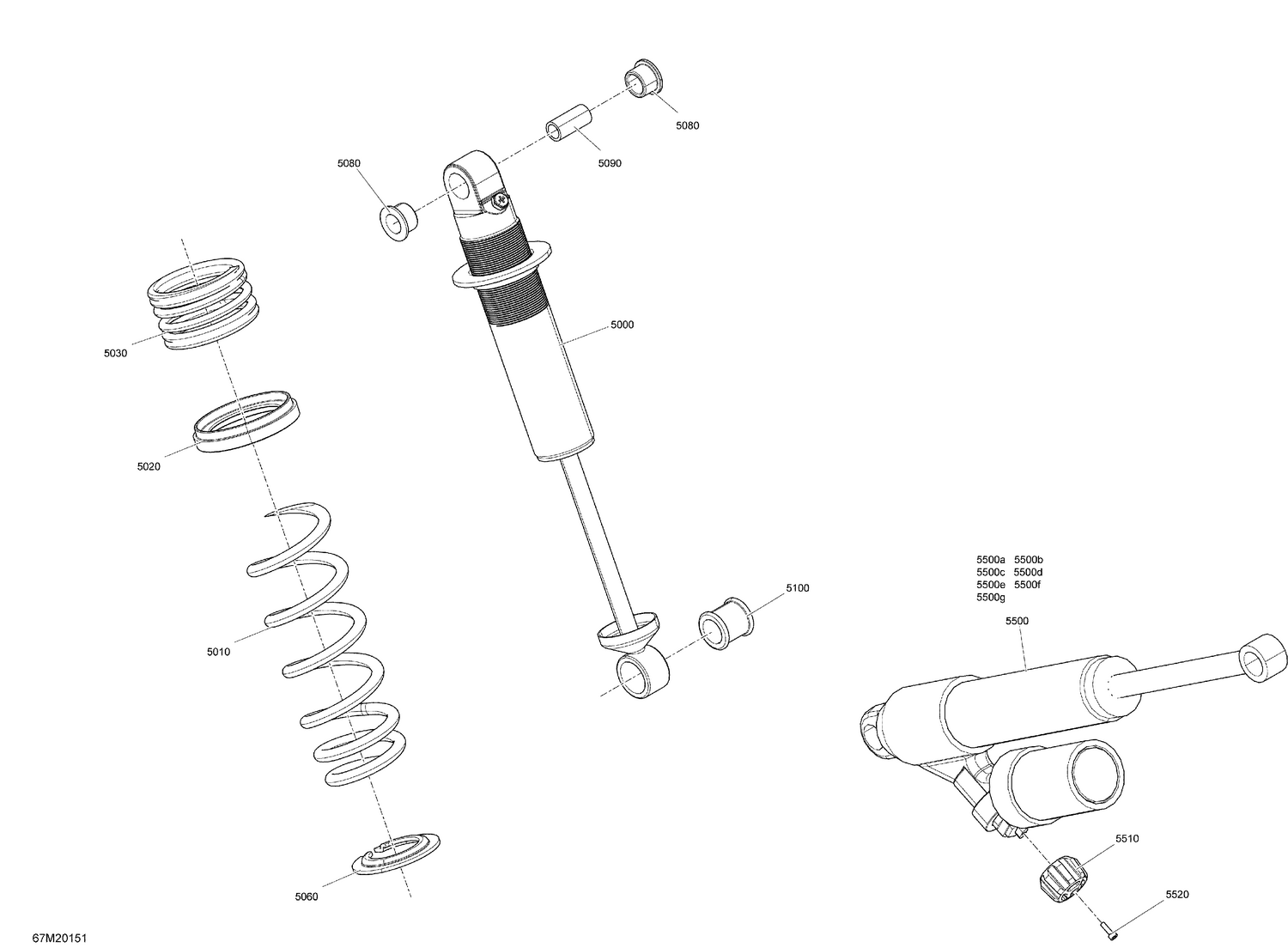

08- Suspension, Rear - Shocks - X
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503194749 | Central Shock |
| 5010 | 503193067 | Black, Spring (189mm) Long |
| 5020 | 503191281 | Spring Spacer |
| 5030 | 503193837 | Black, Spring (51mm) Short |
| 5060 | 503194270 | Spring Stopper |
| 5080 | 503189117 | Urethane Bushing |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Bushing |
| 5500a | 415093807 | O-Ring |
| 5500b | 415093806 | Piston Ring |
| 5500c | 505070398 | Air Valve |
| 5500d | 505070399 | Screw |
| 5500e | 505070400 | O-Ring |
| 5500f | 415093804 | O-Ring |
| 5500g | 415130165 | Base Valve |
| 5510 | 503193033 | Shock Adjuster Knob |
