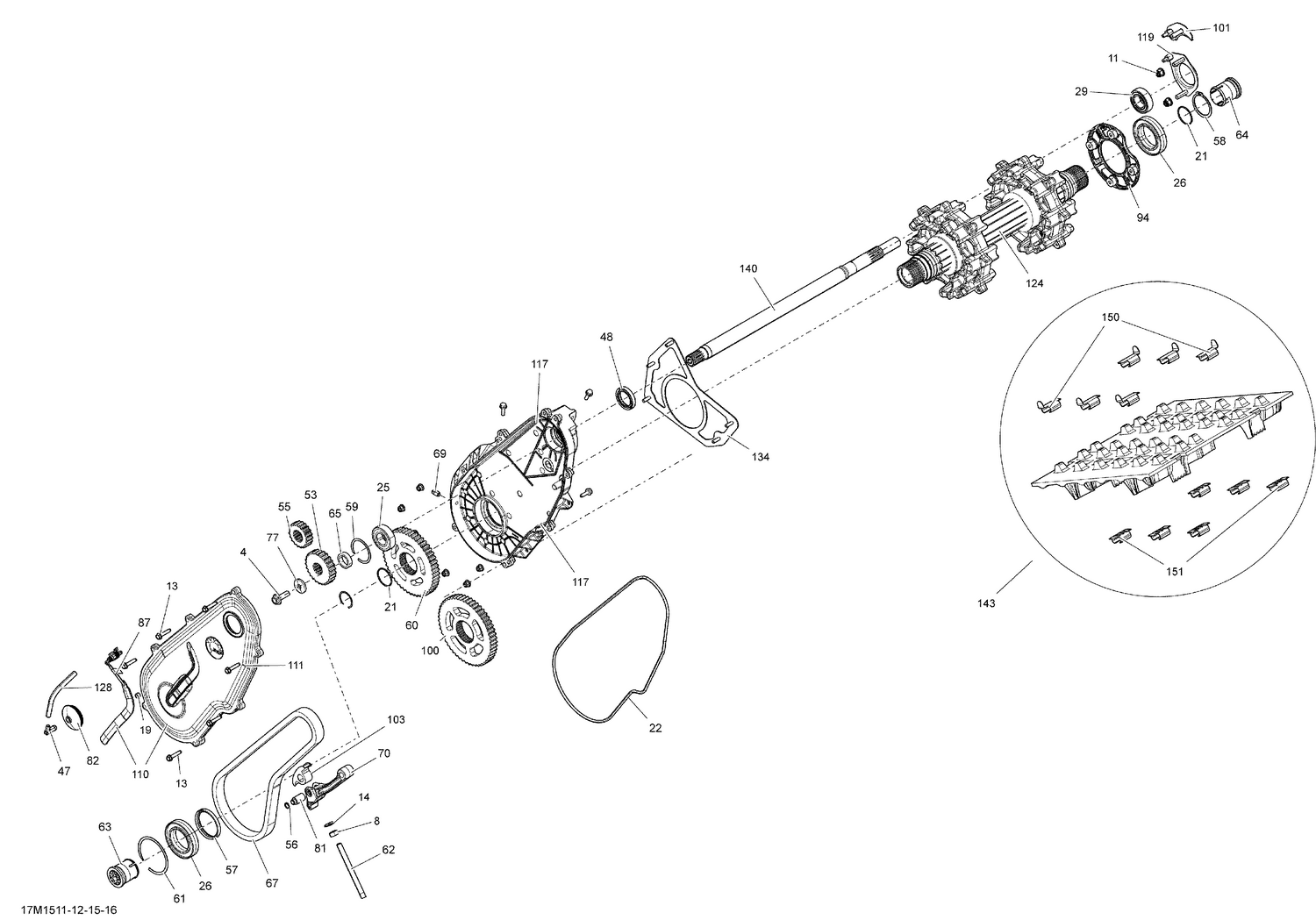

05- Drive System 600HOETEC_17M1512
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 8 | 232006414 | Hex. Nut M10 X 1.5 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | XXX | Not Available As Spare Parts |
| 14 | 250200100 | Bonded Washer |
| 19 | XXX | Not Available As Spare Parts |
| 21 | 293300122 | O-Ring |
| 22 | 293300130 | Tight Seal |
| 25 | 293350115 | Ball Bearing This part replaces 293350055. |
| 26 | 293350059 | Ball Bearing |
| 29 | XXX | Not Available As Spare Parts |
| 47 | 414580700 | Male Connector |
| 48 | 293200158 | Oil Seal This part replaces 415049300. |
| 53 | 504153910 | Sprocket 21 Teeth This part replaces 504096200. |
| 55 | 504153783 | Sprocket, 19 Teeth This part replaces 504152030. |
| 56 | 504152282 | Circlip |
| 57 | 293200159 | Oil Seal This part replaces 504152571. |
| 58 | 504152572 | Circlip |
| 59 | 504152576 | Circlip |
| 60 | 861805539 | Kit Sprocket This part replaces 504152581. |
| 61 | 504152582 | Circlip |
| 62 | 504152602 | Adjustment Screw |
| 63 | 504152619 | Magnetic Cap |
| 64 | 504152619 | Magnetic Cap |
| 65 | 504152628 | Shim |
| 67 | 504152629 | Drive Chain, 104 Links |
| 67 | 504152630 | Drive Chain, 106 Links |
| 69 | 504152854 | Magnetic Plug 1/8 - 27 NPTF |
| 70 | 504153429 | Tensioner chain This part replaces 504152685. |
| 77 | 504152784 | Spring Washer M10 |
| 81 | 504152841 | Tensioner Axle |
| 82 | 504152860 | Cap |
| 87 | 504152896 | Rotation Sensor |
| 94 | 504153886 | Retaining Ring This part replaces 504152949. |
| 100 | 861805540 | Kit Sprocket This part replaces 504152971. |
| 101 | 504153418 | Bearing Housing Ass'y This part replaces 504152974. |
| 103 | 504152739 | Slider Chain |
| 110 | 504153410 | Chaincase Cover Ass'y This part replaces 504153335. |
| 111 | 504153151 | Casting Cover |
| 117 | 504153405 | Chaincase This part replaces 504153333. |
| 119 | XXX | Not Available As Spare Parts |
| 124 | 504154054 | Drive Axle Ass'y This part replaces 504153083. |
| 128 | 219704410 | Polyurethane Hose 10000Mm Long |
| 134 | 518325816 | Plate |
| 140 | XXX | Not Available As Spare Parts |
| 150 | 415129528 | Track Guide |
