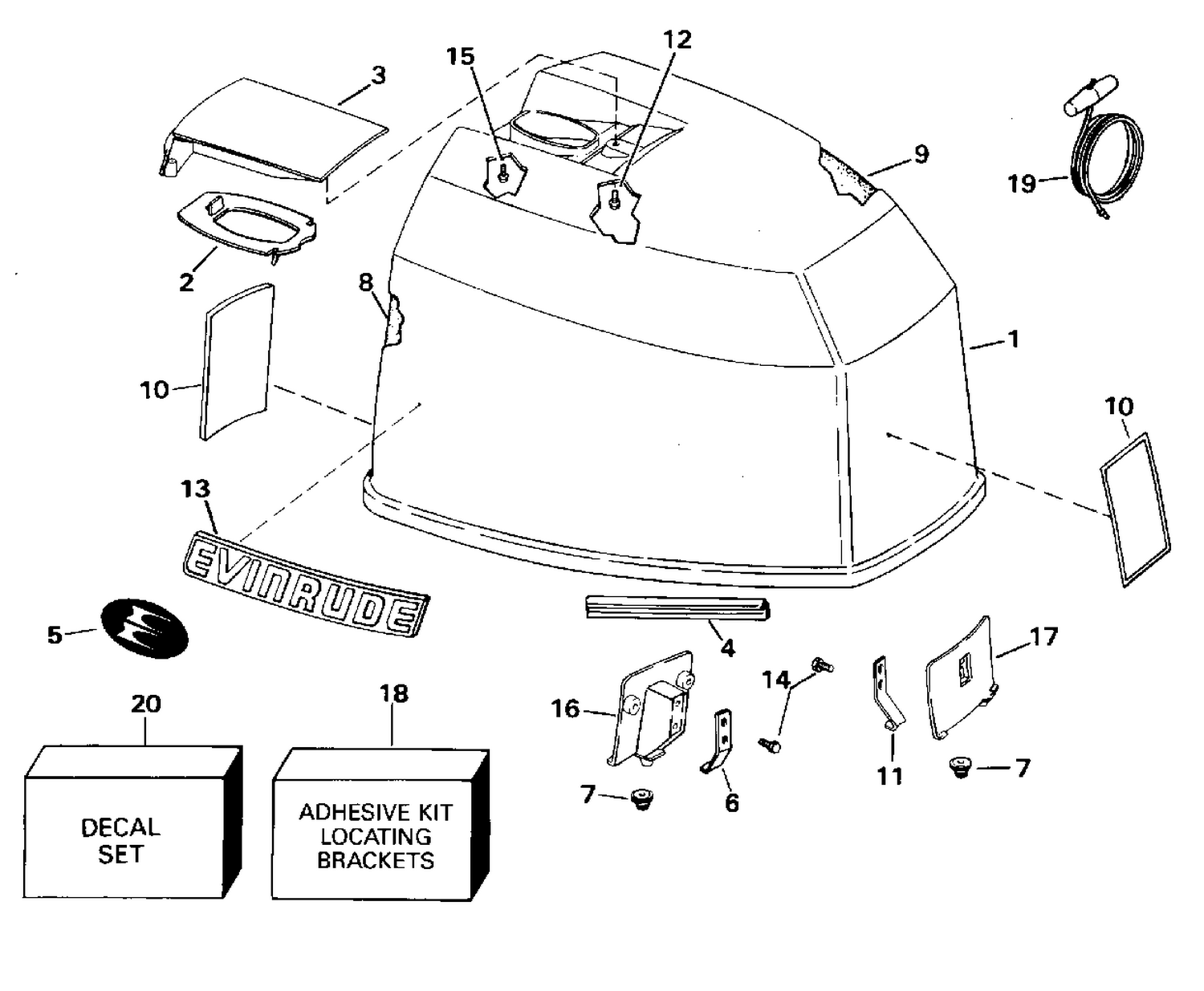

ENGINE COVER - EVINRUDE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0284726 | ENGINE COVER ASSY. |
| 1 | 0284737 | ENGINE COVER ASSY., 85 |
| 4 | 0329548 | SEAL |
| 5 | 0212478 | APPLIQUE, Ev., port & stbd This part replaces 0212477. |
| 8 | 0341534 | SOUND BLANKET, Side |
| 9 | 0341535 | SOUND BLANKET, Top |
| 10 | 0212665 | LENS, 85 |
| 10 | 0212686 | LENS, 80 |
| 11 | 0323175 | HOOK , Motor Cover, Front |
| 13 | 0212495 | LENS, Evinrude |
| 16 | 0336992 | BRACKET, Locating, rear |
| 17 | 0336991 | BRACKET, Locating, front |
| 18 | 0431929 | KIT ADHÉSIF, supports d'emplacement |
| 19 | 0378347 | CORDE DE LANCEUR |
