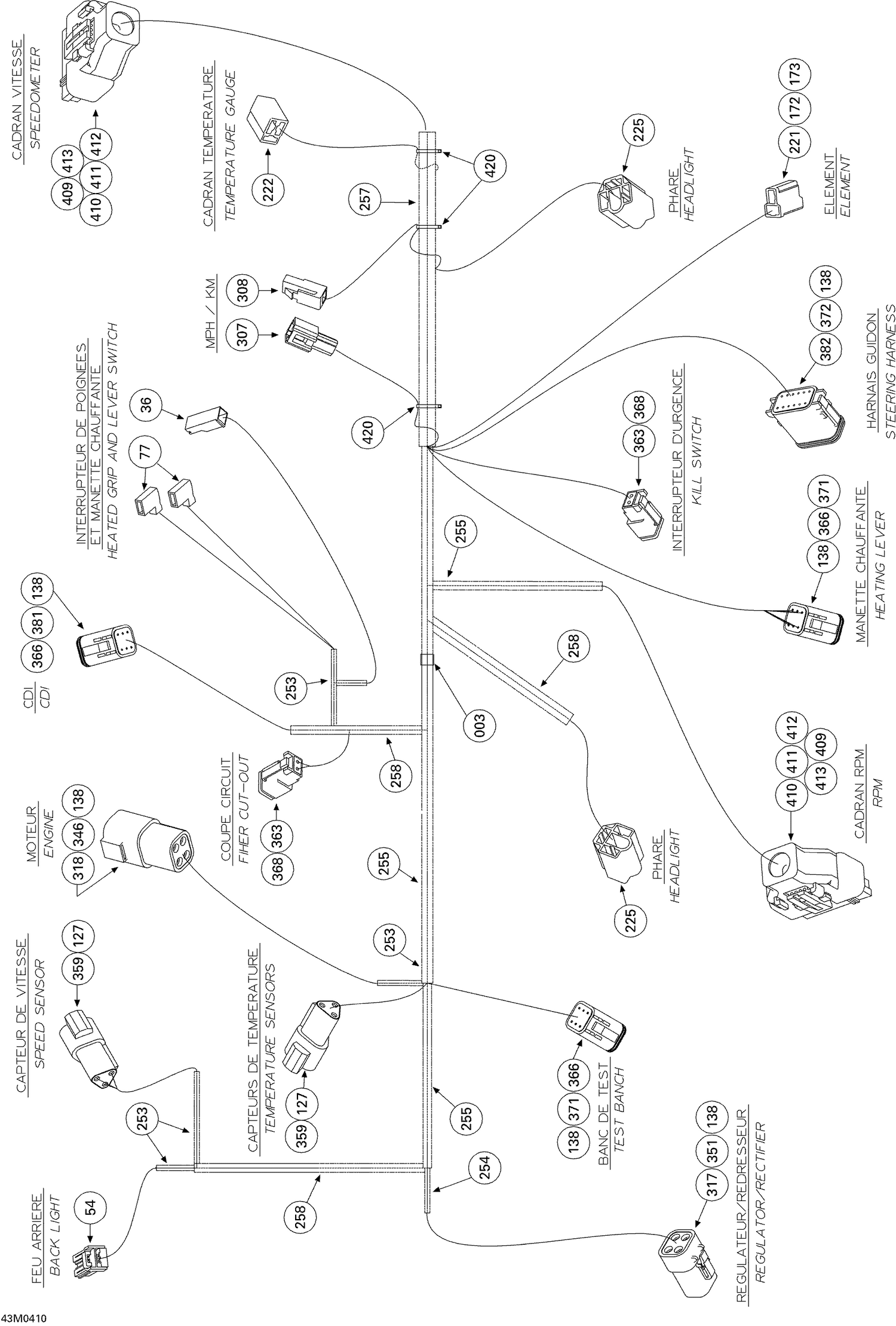

| Ref | Part Number | Description |
|---|
| 34 |
409010100 |
Female Terminal |
| 36 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 42 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 44 |
515175231 |
Female Terminal |
| 46 |
515175282 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 77 |
409010300 |
Female Terminal |
| 110 |
278000631 |
Male Terminal |
| 112 |
278000632 |
Female Terminal |
| 113 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| 127 |
409207600 |
Male Lock, 3 Circuits |
| 138 |
293000052 |
Sealing Cap |
| 172 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 221 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 222 |
409204300 |
Female Housing |
| 224 |
515175321 |
FEMALE TERMINAL - Call your local BRP dealership |
| 225 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 257 |
219704398 |
Was 409901600 Tubing 19mm |
| 258 |
219704407 |
Tubing 10 MM 1000MM Long |
| 307 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 308 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 317 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 318 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 319 |
515175568 |
Male Terminal |
| 320 |
515175567 |
Female Terminal |
| 346 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 351 |
278001474 |
Female Lock, 4 Circuits |
| 359 |
515175666 |
Male Housing |
| 363 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 366 |
515175673 |
Male Housing, 6 Circuits |
| 368 |
515175675 |
Female Lock, 2 Circuits |
| 371 |
515175678 |
Male Wedge, 6 Circuits |
| 372 |
515175679 |
FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership |
| 381 |
515175705 |
Femele Lock |
| 382 |
515175704 |
FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership |
| 409 |
515175812 |
Plug |
| 410 |
515175801 |
Female Housing, 24 Circuits |
| 411 |
515175802 |
Retainer Block |
| 412 |
515175803 |
Wire Seal |
| 413 |
515175804 |
BLOCK - Call your local BRP dealership |
| 415 |
515175806 |
Female Terminal |
